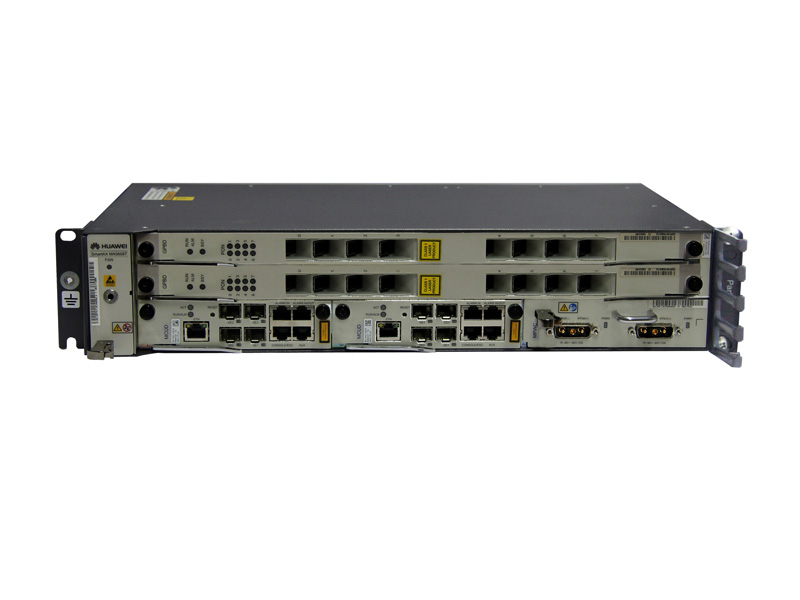

Huawei MA5608T

Available to quote:

MA5608T



SPECIFICATIONS
Interfaces
MA5608T:
  • 2 service board slots;
  • 2 control board slots;
  • 1 power supply card (Dual AC / DC inputs) slot

Performance
Switching Capacity
MA5608T: 720 Gb/s
Maximum PON ports
Maximum GPON ports
MA5608T: 32
Maximum 10G GPON ports
MA5608T: 16
Layer 2 Features
VLAN

IEEE 802.1Q: 4094; QinQ; VLAN Translation

MAC Address Table
Maximum Capacity:
MCUD/MCUD1/MCUE: 32,000 entries
Layer 2 Reliability

STP/RSTP/MSTP;  ERPS (G.8032)

Multicast
IGMP snooping: v2/v3
IGMP groups: 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SSM
Layer 3 features
ARP Table
MCUD/MCUD1/MCUE: 8,192 entries
Routing Table
IPv4:
MCUD/MCUD/MCUE1: 5,120 routes
IPv6:
MCUD/MCUD1/MCUE: 5,120 routes
IP Routing

Static Routes; RIPv1/2; OSPFv2; IS-IS; VRRP; BGP

MPLS / VPN

Control boards that support MPLS together with the H801SPUB service board: MCUD; MCUD1
Supported Features:
MPLS: MPLS-LDP; MPLS RSVP-TE; MPLS OAM; MPLS-TE
L3 VPN: L3 interface-based VRF
L2 VPN: VPLS; PWE3
Security
Control boards Specifications
MCUD/MCUD1:
IPv4 scenario

512 (Basic ACL + Advanced ACL + Link ACL)

128 (User-defined ACL)
IPv4 + IPv6 scenario

256 (Basic ACL + Advanced ACL + Link ACL)

256 IPv6 ACL

128 (User-defined ACL)
Local AAA: Supported
RADIUS, TACACS+ (for terminal users): Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues:

8

Traffic Limit:

Supported

Traffic Marking:

by 802.1p,  DSCP, VLAN

IPv6

Static Routes; ICMPv6; IPv6 Neighbor Discovery; RIPng; OSPFv3; IPv6 Multicast; Multicast Listener Discovery Snooping (MLDv1/v2)

Management

Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP

OAM

802.3ah (EFM); 802.1ag (CFM); Y.1731

Environmental Conditions
Relative Humidity

5 to 85% (non-condensing)

Operating Temperature

-5 to +45°C (23 to 113°F)

Maximum power consumption
MA5608T: up to 195 W
Dimensions (HxWxD)
MA5608T, including mounting brackets:

88.1 (2U) x 535 x 244.5 mm

(3.47 (2U) x 21.06 x 9.63 in)

Maximum weight
MA5608T: 10 kg (22.05 lb)
Compatible Boards
Name Description
Control boards
MCUD Control board for MA5608T (4-Port 1GbE (SFP))
MCUD1 Control board for МА5608Т (2-Port 1GbE (SFP) and  2-Port 1/10GbE (SFP+))
MCUE Control board for MA5608T (4-Port 1GbE (SFP))
Power supply cards
MPWC Power supply card for МА5608Т (2 x -48 VDC inputs )
MPWD Power supply card for МА5608Т (1 x 220 VAC input and 1 x -48 VDC battery backup port)
MPWE Power supply card for МА5608Т (1 x -48 VDC input  )
GPON boards
GPBD GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
GPFD GPON board (16-Port GPON. Splitting ratio: 1:64 and 1:128)
GPBH GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
GPMD GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
10G PON boards
XGBC 10G PON board (4-Port 10G PON)
XGBD 10G PON board (8-Port 10G PON)
SPU boards
SPUA Uplink board for Open Access scenario (8-Port 1GbE (SFP), 2-Port 10GbE (SFP+))
SPUB MPLS board
SPUC Uplink board for Open Access scenario (20-Port 1GbE (SFP) CFSP modules, 4-Port 10GbE (SFP+))
SPUF Uplink board for Open Access scenario. Supports L2 and L3 transfer modes. (8-Port 1/10GbE (SFP/SFP+)).
Ethernet service boards
ETHB Ethernet Service Card. (8-Port 1GbE (SFP))
TDM service boards
CSPA CESoP service board. (Structure-agnostic TDM over packet (SAToP)). (64-Channel E1)
TOPB TDM Traffic over PSN service board. Supports the following features: Native TDM, CESoP, STM-1 (2-Port STM-1)
TOPA

TDM Traffic over PSN service board.

Supports the following features:

  • Native TDM (with NH1A/O2CE extension card);
  • CESoP (with EH1A/CSSA extension card);
  • TDM (with 16-Channel E1 (with NH1A/EH1A extension card);
  • TDM (with 2-Channel STM-1 (with O2CE/CSSA extension card);
P2P service boards
OPFA P2P services board. (16-Port 100MbE (SFP))
OPGD P2P services board. (24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP)).
OPGE P2P services board. (24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP).  1588v2 (PTP) supported)
ATM service boards
AIUG ATM services board. (4-Port STM-1)
ADSL2+ service boards
ADPD ADSL over POTS service board. (64-Port ADSL2+)
ADPM ADSL over POTS service board. (64-Port  ADSL2+. MELT supported)
ADQD ADSL over ISDN service board. (64-Port ADSL2+)
ADKM ADSL over ISDN service board. (64-Port ADSL2+. ADSL Bonding support)
ADPE ADSL over POTS service board. (64-Port ADSL2+. Internal 600ohms splitter)
VDSL service boards
VDRD VDSL2 over POTS service board. (24-Port VDSL2)
VDMF VDSL2 over POTS service board. (48-Port VDSL2. VDSL2 PTM Bonding supported)
VDNF VDSL2 over ISDN service board. (48-Port VDSL2)
VDJM VDSL2 over ISDN service board. (48-Port VDSL2. G.INP supported)
VDPD VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding supported)
VDPE VDSL2 over POTS service board. (64-Port VDSL2)
VDPM VDSL2 over POTS service board. (64-Port VDSL2. MELT supported)
VDQM VDSL2 over ISDN service board. (64-Port VDSL2)
VCMM VDSL2 over POTS service board. (48-Port VDSL2. MELT supported. VDSL2 PTM Bonding supported)
VCPE VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding support. Internal splitter)
VCPD VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding supported)
VCPM VDSL2 over POTS service board. (64-Port VDSL2. MELT supported. VDSL2 PTM Bonding supported)
Vectoring boards
VPEA VDSL Vectoring feature board. Compatible with the following VDSL2 Cards: VCMM, CCPE, VCPD, VCPE, VCPM
VPGA

VDSL Vectoring feature support. Compatible with the following VDSL2 Cards: VCMM, CCPE. VCPD, VCPE, VCPM

SHDSL service board
SHLM SHDSL.bis service board. (16-Port SHDSL)
SHGM SHDSL.bis service board. (32-Port SHDSL)
Combo boards
CAME ADSL over POTS service board. (48-Port ADSL2+ and POTS with built-in splitter)
CVME VDSL over POTS service board. (48-Port VDSL2 and POTS with built-in splitter)
CCPE VDSL over POTS service board. (64-Port VDSL2 and POTS with built-in splitter)
Voice service boards
ASPB Voice Services board. (64-Port VoIP POTS)
DSRE Voice Services board. (32-Channel ISDN)
EDTB Voice Services board. (16-Port SHDSL and 16-Port E1)
ADSL splitter boards
SPPLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service board: ADPD
SPPLB Splitter board. BT complex impedance. Compatible with the folowing service board: ADPD
SPPLC Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service board: ADPD
SPPH Splitter board. 2B1Q or 4B3T. Compatible with the folowing service board: ADQD
SPPF1 Splitter board. 600 Ohm. Compatible with the folowing service board: ADPD
VDSL splitter boards
VSNF Splitter board. 600ohms. Compatible with the folowing service boards: VDMF, VDRD
VSNLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDMF, VDRD
VSPHA Splitter board. 2B1Q or 4B3T. Compatible with the folowing service boards: VDNF, VDJM
VSPLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDPM, VDQM, VDPD
VSPLC Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service boards: VDPM, VDQM, VDPD
SHDSL extension boards
SHET 64-Channel SHDSL extension board. Compatible with the folowing service boards: SHLM, SHGM
