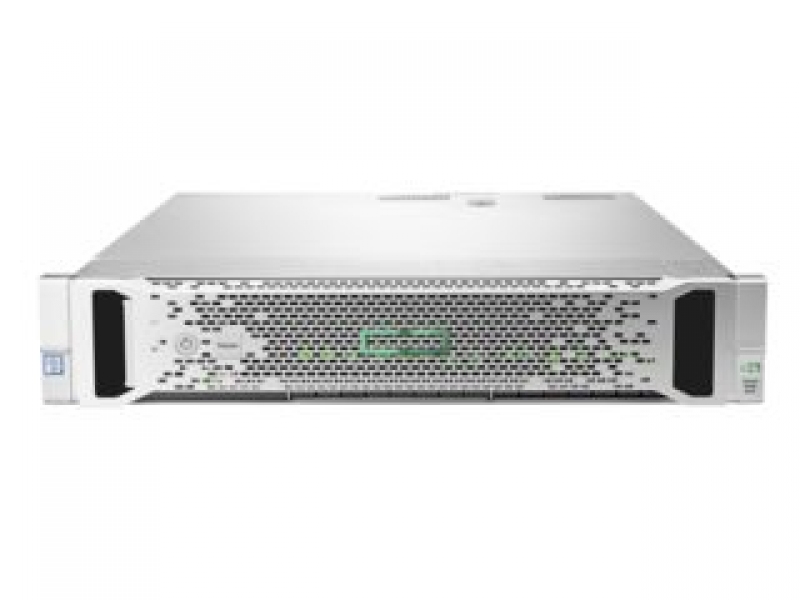

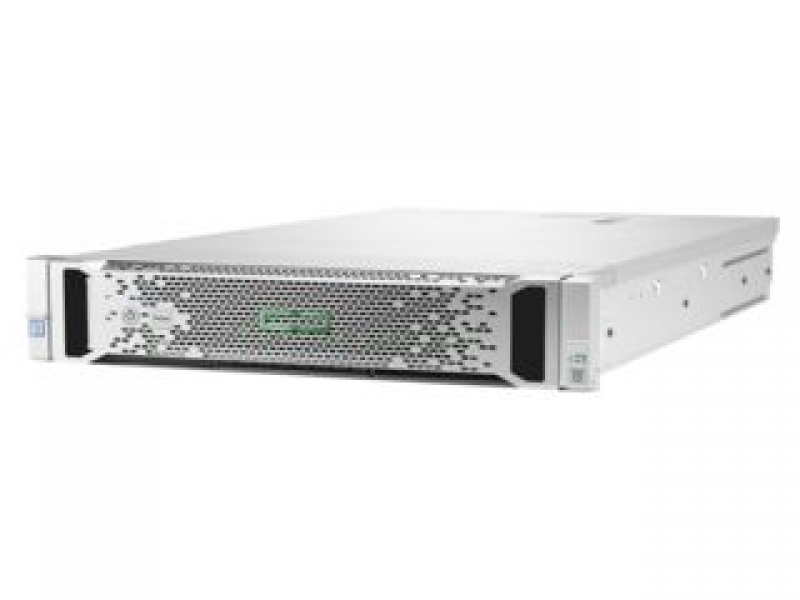

HPE ProLiant DL560 Gen9

Available to quote:

Proliant DL560 Gen9

SPECIFICATIONS
External interfaces
Serial interfaces: 1
Videointerfaces: 2-Port VGA (additional 1 x VGA port with Media Bay installed)
Expansion slots:
  • 6 slots PCIe 3.0 x8;
  • 1 slot PCIe 3.0 x16
Network interfaces:

1 network card.

Supported interfaces:

  • 4-Port 10/100/1000MbE (RJ45);
  • 2-Port 10GBASE-T (RJ45)
  • 2-Port 10GbE (SFP+)
MicroSD slots: 1
USB ports:
  • 2-Port USB 2.0 (front panel);
  • 2-Port USB 2.0 (rear panel);
  • 1-Port USB 2.0 (internal);
  • 1-Port USB 3.0 (front panel);
  • 2-Port USB 3.0 (rear panel);
  • 1-Port USB 3.0 (internal)
CPU
Quantity: 1, 2 or 4
Model: Intel Xeon E5-4600 v4/v3 series
Memory
Type: DDR4 RDIMM / LRDIMM
Number of slots: 48
Maximum capacity 1.5 TB (48 x 32 GB)
Storage
Hot Plug SFF SATA up to 48 TB (24x 2 TB)
Hot Plug SFF SAS up to 48 TB (24 x 2 TB)
Hot Plug SFF SATA SSD up to 92 TB (24 x 3.84 TB)
Hot Plug SFF SAS SSD up to 92 TB (24 x 3.84 TB)
Environmental Conditions
Relative Humidity

5 to 95%

Operating Temperature

10 to 35°C (50 to 95°F)

Power Supply
Power Supply Unit (PSU)
AC PSU:
  • 2 x 1,500 W;
  • 2 x 1,200 W
DC PSU:
  • 2  x 1,500 W
Dimensions (HxWxD)

175 (4U) x 444 х 736 mm

(6.88 (2U) x 17.48 x 29 in)

Maximum Weight

52.87 kg (116.56 lb)
