| Interfaces | |
|

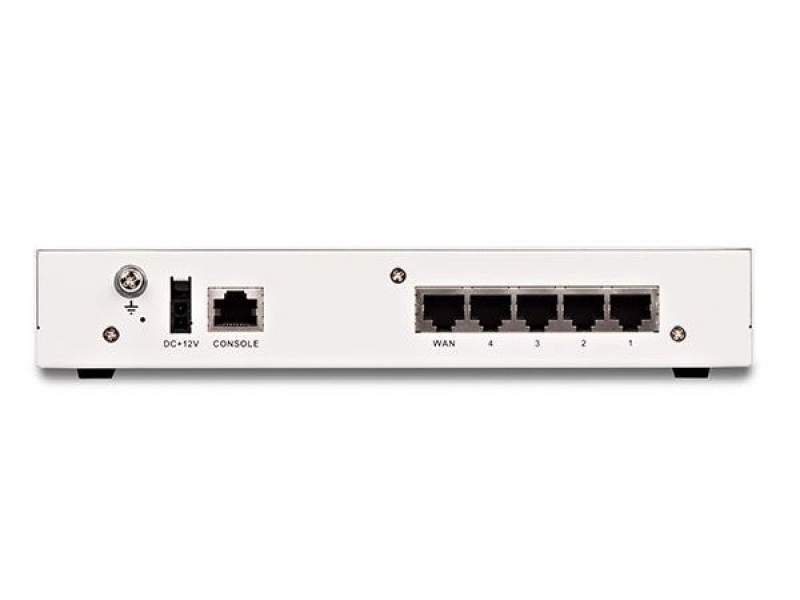

| FortiGate 30E: |
- 5-Port 1GbE (RJ45) (Bundle includes: 1-Port WAN and 4-Port LAN
- 1-Port USB;
- 1-Port console (RJ45)
|

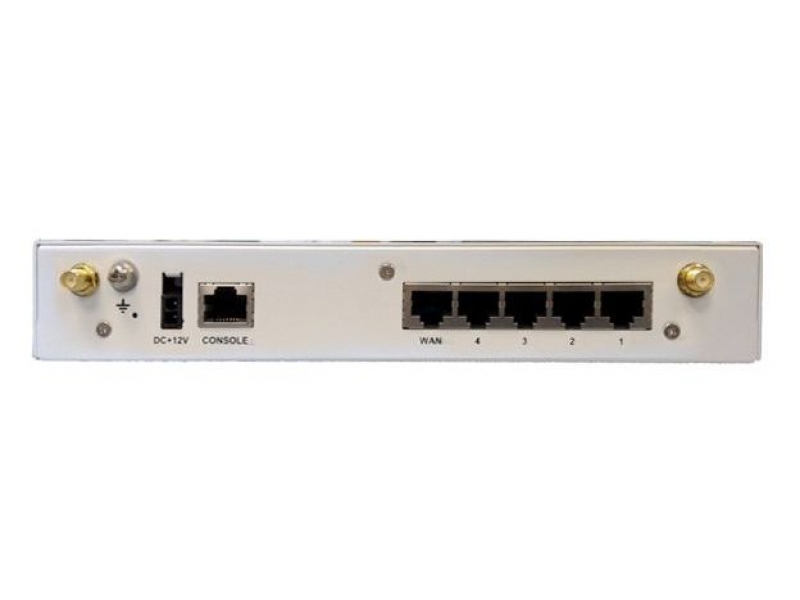

| FortiWiFi 30E |
- 5-Port 1GbE (RJ45) (Bundle includes: 1-Port WAN and 4-Port LAN
- 1-Port USB;
- 1-Port console (RJ45);
- WiFi. IEEE 802.11 a/b/g/n (2.4GHz);
|
|
| Performance | |
|
| Firewall throughput (Mbps) |
950 |
| Firewall throughput Kp/s) |
180 |
| Maximum concurrent sessions |
900,000 |
| Connections per second |
15,000 |
| Maximum security policies |
5,000 |
| IPsec VPN throughput (Mbps) |
75 |
| IPsec VPN tunnels |
250 |
| IPS throughput (Mbps) |
600 |
| Application Control throughput (Mbps) |
300 |
| NGFW throughput (Mbps) |
200 |
| Maximum Virtual Domains |
5 |
|
| Environmental Conditions | |
| Relative Humidity | 20 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
External |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Not supported |
|
|
| Power consumption | |
|
| Fortigate 30E: |
15 W |
| FortiWiFi 30E: |
19 W |
|
| Dimensions (HxWxD) | |
| 41 x 210 х 133 mm
(1.61 x 8.27 x 5.24 in) |
| Maximum Weight | |
|
| FortiGate 30E: |
0.899 kg (1.982 lb) |
| FortiWiFi 30E: |
0.911 kg (2.008 lb) |
|
| Compatible expansion cards | |
| Not supported |
