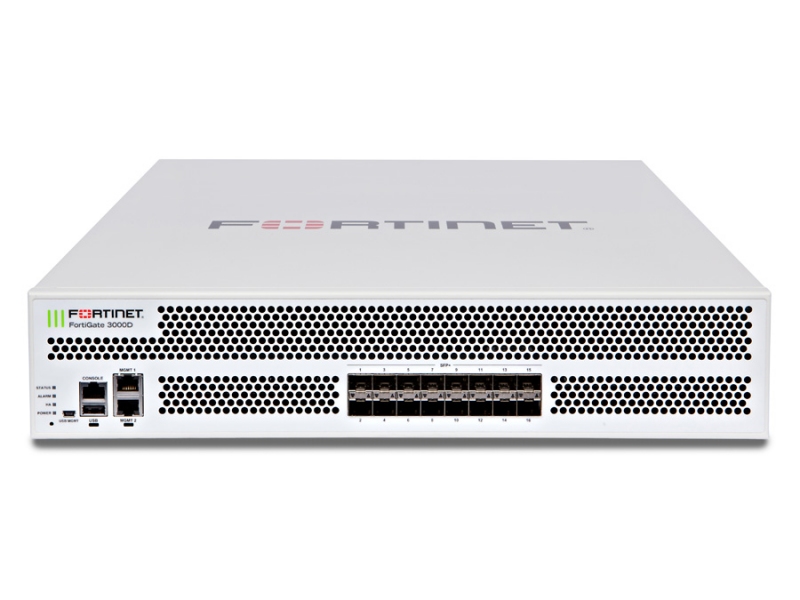

Fortinet FortiGate 3000 series

Download FortiGate 3000D series Datasheet (eng)Download Fortinet Product Matrix (eng)

Available to quote:

FortiGate 3000D

FortiGate 3000D-DC



Request a Quote
SPECIFICATIONS
Interfaces
FortiGate 3000D/-DC:
  • 16-Port 1/10GbE (SFP/SFP+);
  • 1-Port USB;
  • 2-Port Management (RJ45);
  • 1-Port console (RJ45);
  • 480 GB SSD local storage
Performance
Firewall throughput (Gbit/s) 50
Firewall throughput (Mp/s) 75
Maximum concurrent sessions 50M
Connections per second 400,000
Maximum security policies 200,000
IPsec VPN throughput (Gbit/s) 50
IPsec VPN tunnels 64,000
IPS throughput (Gbit/s) 43
Application Control throughput (Gbit/s) 28
NGFW throughput (Gbit/s) 22
Maximum Virtual Domains 500
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 40.5 to 57 VDC
Power consumption

up to 427 W
Dimensions (HxWxD)

89 (2U) x 442 х 555 mm

(3.5 (2U) x 17.4 x 21.9 in)
Maximum Weight

17.0 kg (37.5 lb)
Compatible expansion cards

Not supported
