| Interfaces | |
|

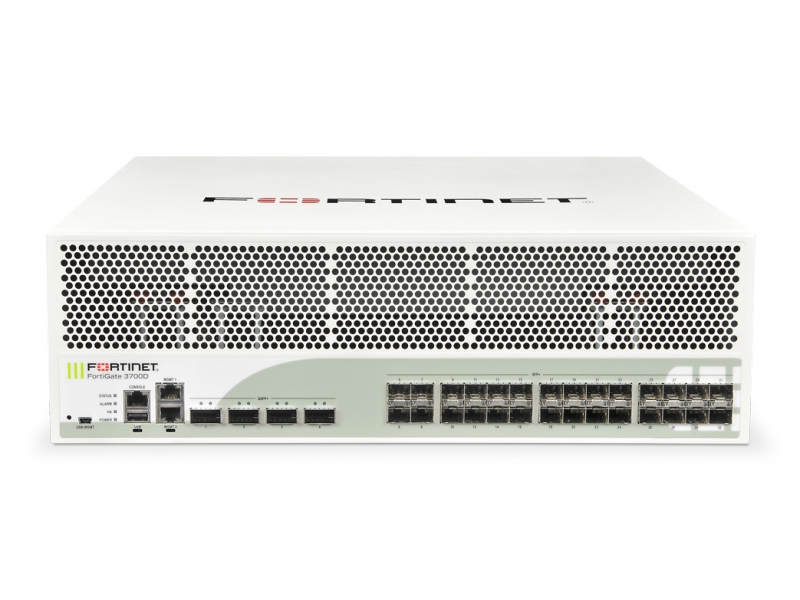

| FortiGate 3700D/-DC: |
- 20-Port 1/10GbE (SFP/SFP+);
- 8-Port 10GbE (SFP+);
- 4-Port 40GbE (QSFP);
- 1-Port USB;
- 2-Port Management (RJ45);
- 1-Port console (miniUSB/RJ45);
- 960 GB SSD local storage
|
|
| Performance | |
|
| Firewall throughput (Gbit/s) |
110 |
| Firewall throughput (Mp/s) |
165 |
| Maximum concurrent sessions |
50M |
| Connections per second |
400,000 |
| Maximum security policies |
200,000 |
| IPsec VPN throughput (Gbit/s) |
100 |
| IPsec VPN tunnels |
64,000 |
| IPS throughput (Gbit/s) |
57 |
| Application Control throughput (Gbit/s) |
36 |
| NGFW throughput (Gbit/s) |
14 |
| Maximum Virtual Domains |
500 |
|
| Environmental Conditions | |
| Relative Humidity | 20 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
48 to 72 VDC |
|
| Power consumption | |
| up to 870 W |
| Dimensions (HxWxD) | |
| 133 (3 RU) x 437 х 579 mm
(5.25 (3 RU) x 17.2 x 22.8 in) |
| Maximum Weight | |
| 17.0 kg (37.5 lb)
|
| Compatible expansion cards | |
| Not supported |
