| Interfaces | |
|

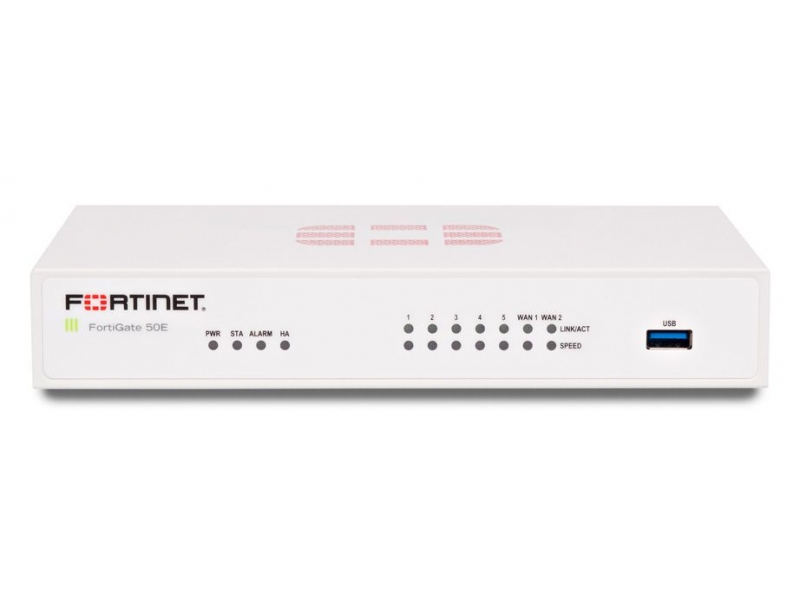

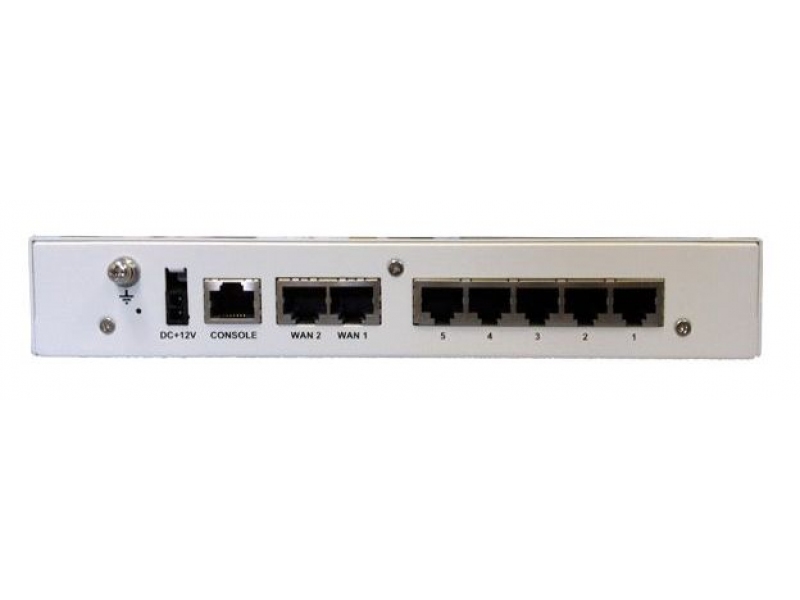

| FortiGate 50E: |
- 7-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN and 5-Port LAN
- 1-Port USB;
- 1-Port console (RJ45)
|

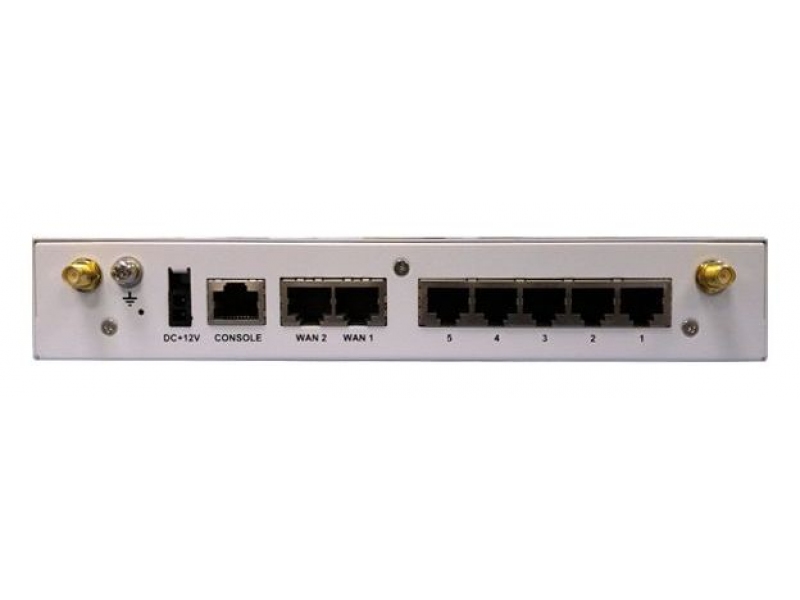

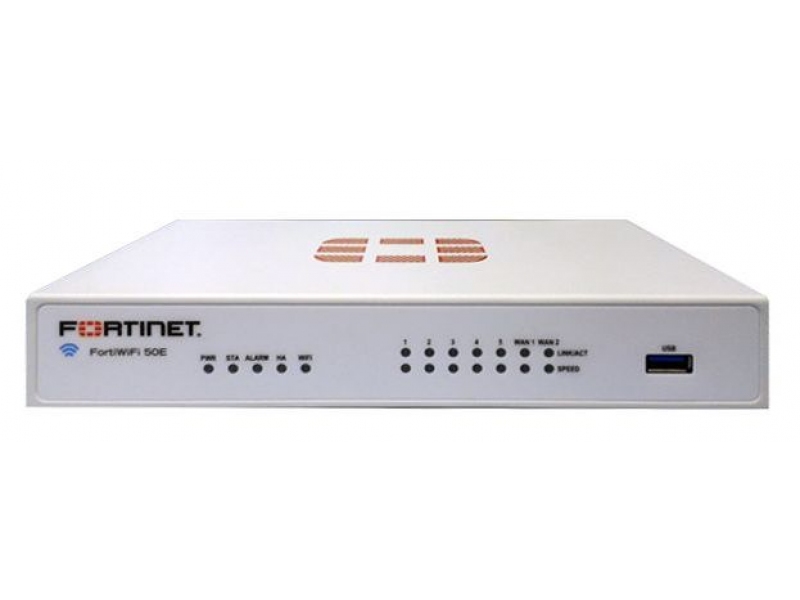

| FortiWiFi 50E |
- 7-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN and 5-Port LAN
- 1-Port USB;
- 1-Port console (RJ45);
- WiFi. IEEE 802.11 a/b/g/n (2.4GHz)
|
| FortiGate 51E: |
- 7-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN and 5-Port LAN
- 1-Port USB;
- 1-Port console (RJ45);
- 32 GB internal storage
|
| FortiWiFi 51E: |
- 7-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN and 5-Port LAN
- 1-Port USB;
- 1-Port console (RJ45);
- WiFi. IEEE 802.11 a/b/g/n (2.4GHz);
- 32 GB internal storage
|
| FortiGate 52E: |
- 7-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN and 5-Port LAN
- 1-Port USB;
- 1-Port console (RJ45);
- 2 x 32 GB internal storage
|
|
| Performance | |
|
| Firewall throughput (Gbit/s) |
2.5 |
| Firewall throughput Kp/s) |
375 |
| Maximum concurrent sessions |
1.8M |
| Connections per second |
21,000 |
| Maximum security policies |
5,000 |
| IPsec VPN throughput (Mbps) |
200 |
| IPsec VPN tunnels |
250 |
| IPS throughput (Mbps) |
800 |
| Application Control throughput (Mbps) |
350 |
| NGFW throughput (Mbps) |
220 |
| Maximum Virtual Domains |
5 |
|
| Environmental Conditions | |
| Relative Humidity | 20 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
External |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Not supported |
|
|
| Power consumption | |
|
| Fortigate 50E: |
18 W |
| FortiWiFi 50E: |
22 W |
| Fortigate 51E: |
20 W |
| FortiWiFi 51E: |
23 W |
| Fortigate 52E: |
27 W |
|
| Dimensions (HxWxD) | |
| 36 x 216 х 140 mm
(1.44 x 8.52 x 5.5 in) |
| Maximum Weight | |
|
| FortiGate 50E: |
0.914 kg (2.015 lb) |
| FortiWiFi 50E: |
0.926 kg (2.041 lb) |
| FortiGate 51E: |
0.925 kg (2.04 lb) |
| FortiWiFi 51E: |
0.925 kg (2.04 lb) |
| FortiGate 52E: |
0.925 kg (2.04 lb) |
|
| Compatible expansion cards | |
| Not supported |
