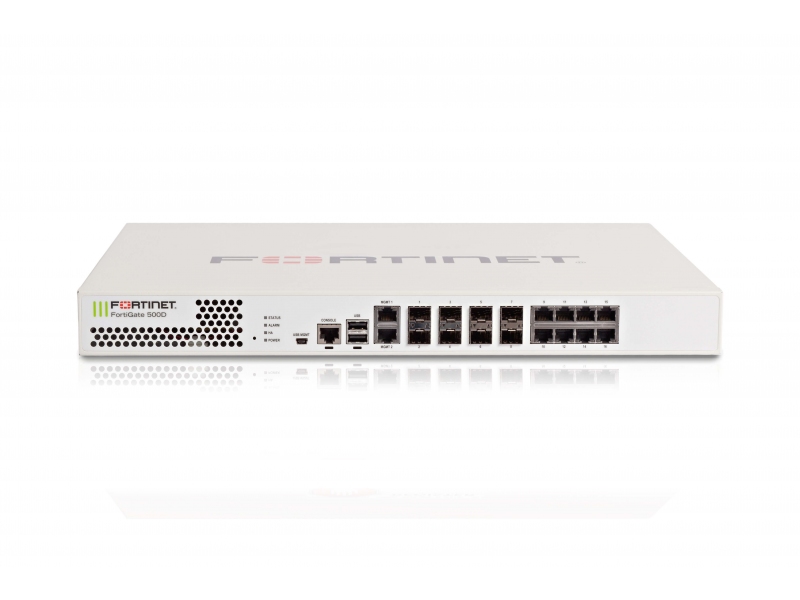

Fortinet FortiGate 500

Download FortiGate 500D Datasheet (eng)Download Fortinet Product Matrix (eng)

Available to quote:

FortiGate 500D



Request a Quote
SPECIFICATIONS
Interfaces
FortiGate 500D:
  • 8-Port 1GbE (RJ45)
  • 4-Port 1GbE (SFP);
  • 2-Port USB;
  • 2-Port Management (RJ45)
  • 1-Port console (miniUSB/RJ45);
  • 120 GB local storage
Performance
Firewall throughput (Gbit/s) 16
Firewall throughput (Mp/s) 24
Maximum concurrent sessions 6M
Connections per second 250,000
Maximum security policies 10,000
IPsec VPN throughput (Gbit/s) 14
IPsec VPN tunnels 10,000
IPS throughput (Gbit/s) 5.7
Application Control throughput (Gbit/s) 4
NGFW throughput (Gbit/s) 2.5
Maximum Virtual Domains 10
Environmental Conditions
Relative Humidity

20 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Not supported
Power consumption

up to 202 W
Dimensions (HxWxD)

44 (1U) x 432 х 322 mm

(1.75 (1U) x 17.01 x 12.68 in)
Maximum Weight

4.9 kg (10.8 lb)
Compatible expansion cards

Not supported
