| Interfaces | |
|

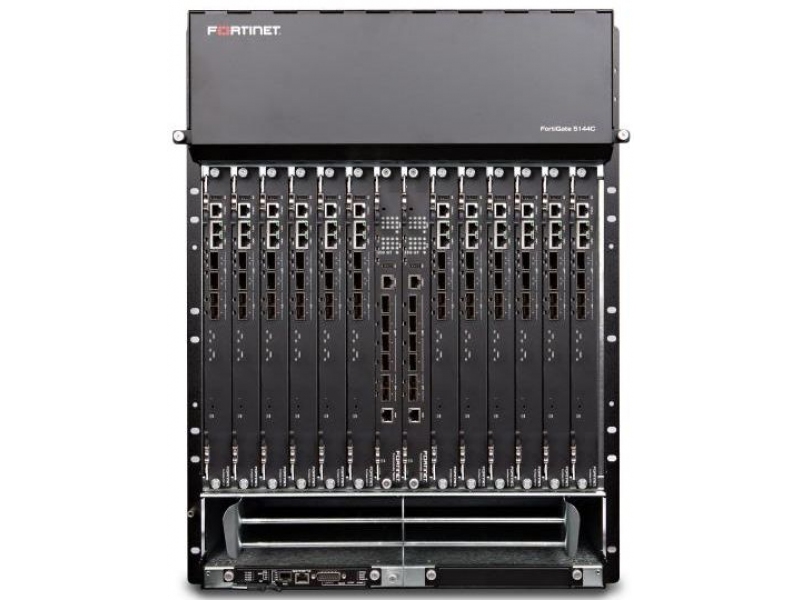

| FortiGate 5144C-HW-BASE: |
- 2 slots for security blades (FG-5001D);
- 1 slot for networking blade (FCTRL-5913C)
|
| FortiGate 5144C-HW-FULL: |
- 12 slots for security blades (FG-5001D);
- 2 slots for networking blade (FCTRL-5913C)
|
|
| Performance | |
|
| Fortigate 5001D (per blade): |
|
| Firewall throughput (Gbit/s) |
45 |
| Firewall throughput (Mp/s) |
67.5 |
| Maximum concurrent sessions |
23M |
| Connections per second |
565,000 |
| Maximum security policies |
100,000 |
| IPsec VPN throughput (Gbit/s) |
25 |
| IPsec VPN tunnels |
64,000 |
| IPS throughput (Gbit/s) |
18 |
| NGFW throughput (Gbit/s) |
6.1 |
| Maximum Virtual Domains |
500 |
|
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
4 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Type: |
Removable |
| Quantity: |
4 |
| Rated voltage range: |
48 to 72 VDC |
|
| Power consumption | |
|
| FortiGate 5144C (chassis only): |
up to 960 W |
| FortiGate 5001D (per blade): |
up to 226 W |
| FortiGate 5913C (per blade): |
up to 400 W |
|
| Dimensions (HxWxD) | |
|
| FortiGate 5144C: |
621 (14U) x 484 х 550 mm
(24.44 (14U) x 19.06 x 21.63 in)
|
|
| Maximum Weight | |
|
| FortiGate 5144C: |
50.0 kg (108.0 lb) |
|
| Compatible Blades | |
|
| Model Number |
Description |
| Security Blade: |
| Fortigate 5001D: |
- 2-Port 1/10GbE (SFP/SFP+);
- 2-Port Management (RJ45);
- 200 GB SSD local storage
|
|
|
| Networking Blade: |
| Fortigate 5913C: |
- 2-Port 100GbE (CFP2);
- 2-Port 10GbE (SFP+)
|
|
