| Interfaces | |
|

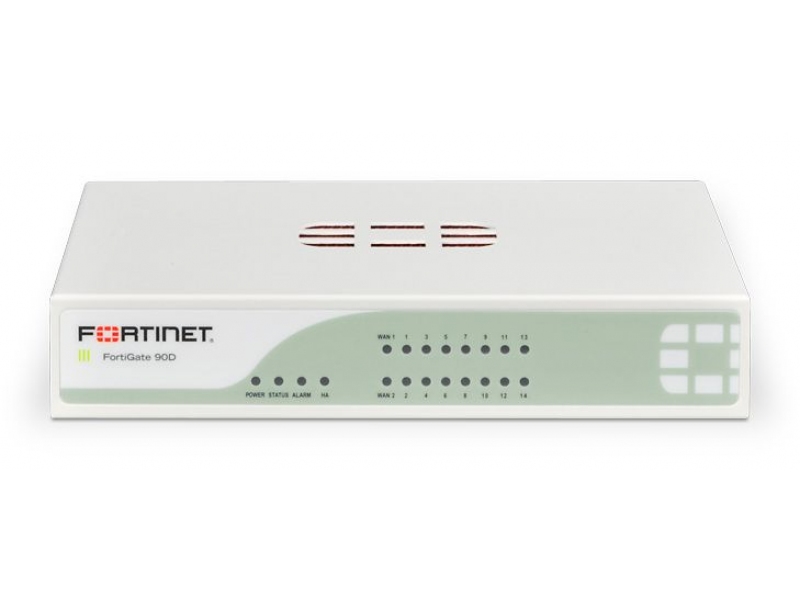

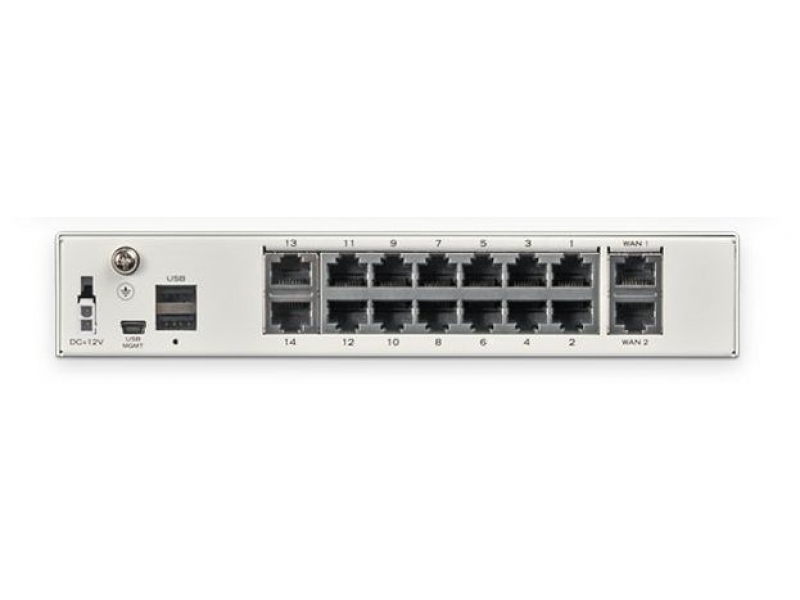

| FortiGate 90D: |
- 16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 14-Port LAN);
- 2-Port USB;
- 1-Port console (miniUSB);
- 32 GB internal storage
|

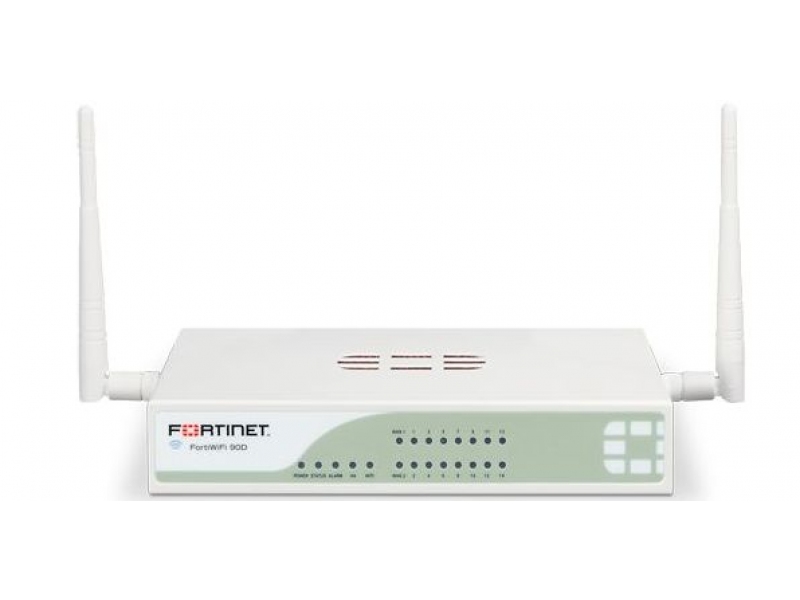

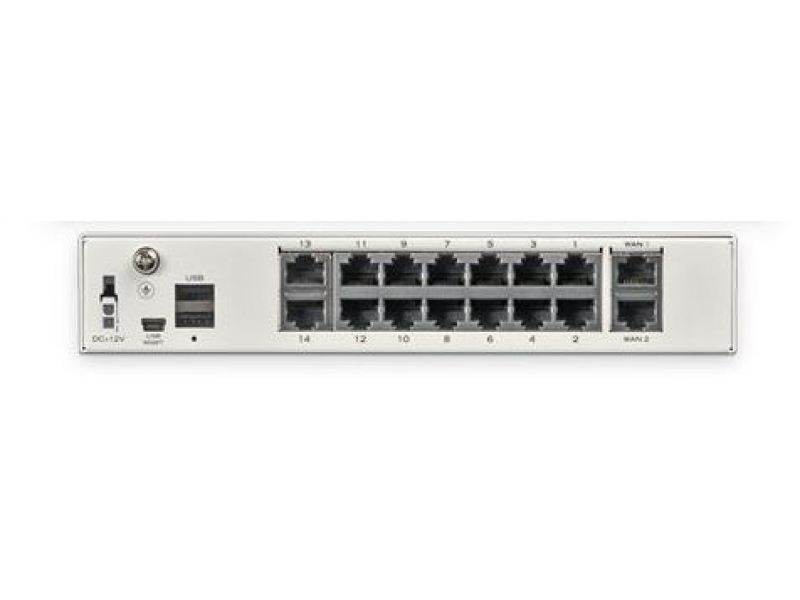

| FortiWiFi 90D: |
- 16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 14-Port LAN);
- 2-Port USB;
- 1-Port console (miniUSB);
- WiFi. IEEE 802.11 a/b/g/n (2.4GHz);
- 32 GB internal storage
|
| FortiGate 90D-POE: |
- 16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 10-Port LAN, and 4-Port PoE);
- 2-Port USB;
- 1-Port console (miniUSB);
- 32 GB SSD internal storage
|
| FortiWiFi 90D-POE: |
- 16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 10-Port LAN, and 4-Port PoE);
- 2-Port USB;
- 1-Port console (miniUSB);
- WiFi. IEEE 802.11 a/b/g/n (2.4GHz);
- 32 GB SSD internal storage
|
|
| Performance | |
|
| Firewall throughput (Gbit/s) |
3.5 |
| Firewall throughput (Mp/s) |
5.3 |
| Maximum concurrent sessions |
2M |
| Connections per second |
4,000 |
| Maximum security policies |
5,000 |
| IPsec VPN throughput (Gbit/s) |
1 |
| IPsec VPN tunnels |
1,000 |
| IPS throughput (Mbps) |
275 |
| Application Control throughput (Mbps) |
60 |
| NGFW throughput (Gbit/s) |
25 |
| Maximum Virtual Domains |
5 |
|
| Environmental Conditions | |
| Relative Humidity | 20 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
External |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Not supported |
|
|
| Power consumption | |
|
| Fortigate 90D: |
22 W |
| FortiWiFi 90D: |
25 W |
| Fortigate 90D-POE: |
89 W |
| FortiWiFi 90D-POE: |
90 W |
|
| Dimensions (HxWxD) | |
|
| Fortigate 90D: |
44 x 216 х 223 mm
(1.72 x 8.5 x 8.78 in)
|
| FortiWiFi 90D: |
44 x 234 х 223 mm
(1.72 x 9.2 x 8.78 in)
|
| Fortigate 90D-POE: |
44 x 216 х 223 mm
(1.72 x 8.5 x 8.78 in)
|
| FortiWiFi 90D-POE: |
44 x 234 х 223 mm
(1.72 x 9.2 x 8.78 in)
|
|
| Maximum Weight | |
|
| FortiGate 90D: |
1.6 kg (3.5 lb) |
| FortiWiFi 60D: |
1.6 kg (3.5 lb) |
| FortiGate 90D-POE: |
1.6 kg (3.5 lb) |
| FortiWiFi 90D-POE: |
1.6 kg (3.5 lb) |
|
| Compatible expansion cards | |
| Not supported |
