| Interfaces | |
|

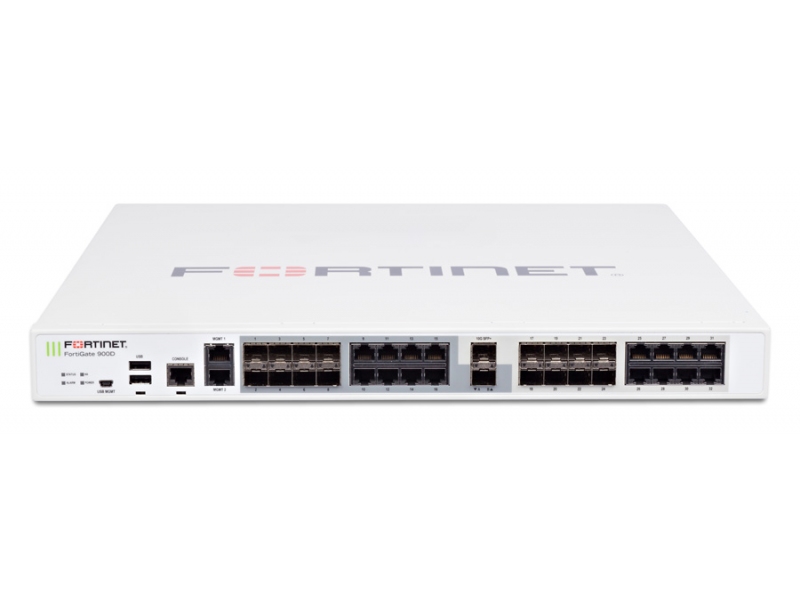

| FortiGate 900D: |
- 16-Port 10/100/1000MbE (RJ45)
- 16-Port 1GbE (SFP)
- 2-Port 10GbE (SFP+);
- 2-Port USB;
- 2-Port Management (RJ45)
- 1-Port console (miniUSB/RJ45);
- 256 GB SSD local storage
|
|
| Performance | |
|
| Firewall throughput (Gbit/s) |
33 |
| Firewall throughput (Mp/s) |
49.5 |
| Maximum concurrent sessions |
11M |
| Connections per second |
280,000 |
| Maximum security policies |
10,000 |
| IPsec VPN throughput (Gbit/s) |
25 |
| IPsec VPN tunnels |
10,000 |
| IPS throughput (Gbit/s) |
8 |
| Application Control throughput (Gbit/s) |
7 |
| NGFW throughput (Gbit/s) |
3.5 |
| Maximum Virtual Domains |
10 |
|
| Environmental Conditions | |
| Relative Humidity | 20 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Not supported |
|
|
| Power consumption | |
| up to 187.2 W |
| Dimensions (HxWxD) | |
| 44.2 (1U) x 437.5 х 463.2 mm
(1.74 (1U) x 17.22 x 18.24 in) |
| Maximum Weight | |
| 9.18 kg (20.24 lb) |
| Compatible expansion cards | |
| Not supported |
