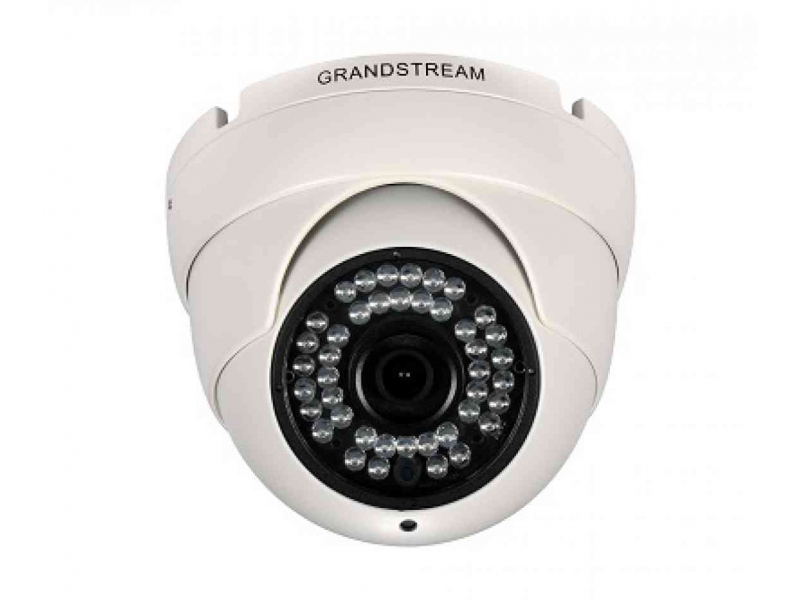

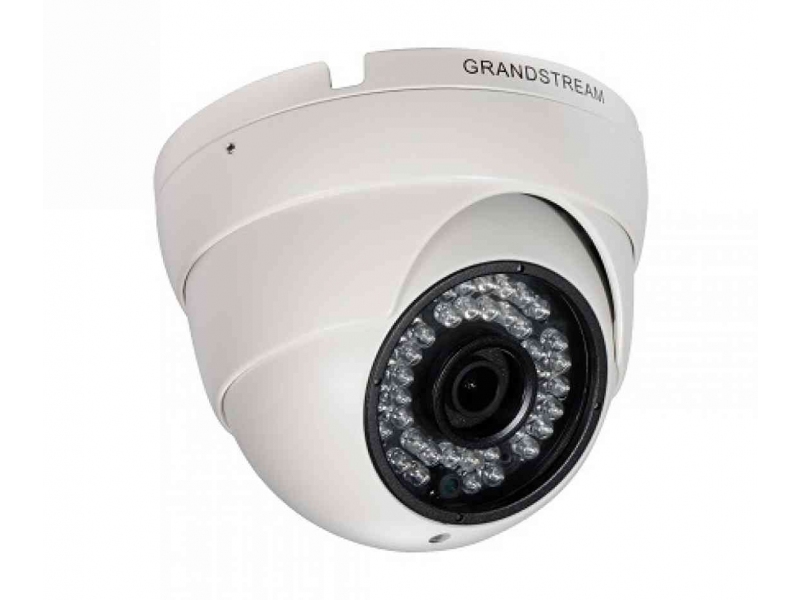

Grandstream GXV3610v2 series HD Camera

Download GXV3610v2 Datasheet (eng)

Available to quote:

GXV3610_HD

GXV3610_FHD

Request a Quote
SPECIFICATIONS
Interfaces
Audio interfaces:
  • 1-Port 3.5mm line-in (IN) 1500 ohms;
  • 1-Port 3.5mm line-out (OUT) 600 ohms
Network interfaces:
  • 1-Port 10/100MbE (RJ45) PoE
Video Output

1080p, 720p.
Supported protocols

TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
Supported codecs
Voice codecs: G.711u/a
Video codecs: H.264, MJPEG
Lens Specifications
Sensor
GXV3610_HD: 1.2MP 1/3” CMOS (1280 x 960)
GXV3610_FHD:  3.1MP 1/3” CMOS (2048 x 1536)
Focal Length

f = 3.6 mm
Lens Aperture

F1.8
Maximum Field of View
Horizontal: 77°
Vertical: 54°
Diagonal: 100.2°
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-20 to +50°C (-4 to +122°F)
IP rating compliance

IP66
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
Output: 12 VDC / 1A
DC PSU:
Type: PoE (802.3af)
Maximum power consumption
GXV3610_HD: 7.42 W
GXV3610_FHD: 8.47 W
Dimensions (HxD)

100 x 120 mm

(3.93 x 4.72 in)
Maximum Weight

0.7 kg (1.54 lb)
