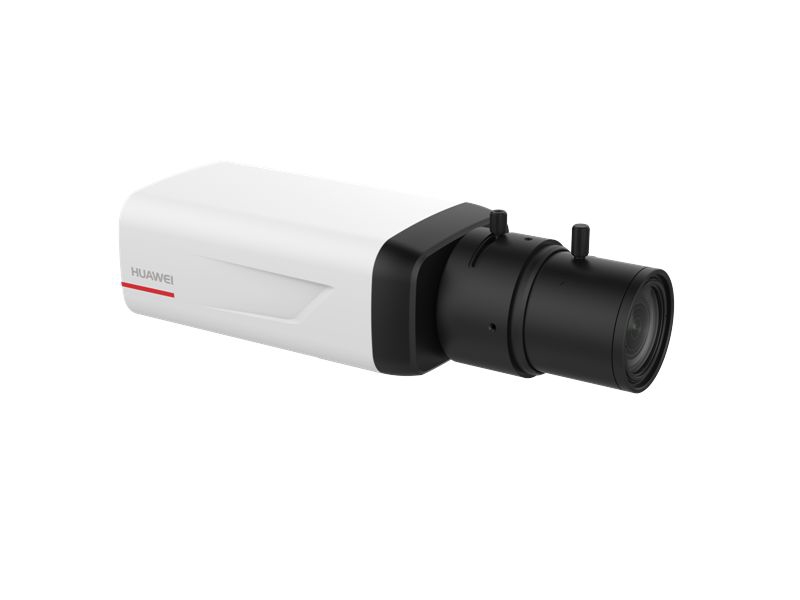

Huawei IPC6125-WDL-D-P IP Camera

Download IPC6125-WDL-P Datasheet (eng)

Available to quote:

IPC6125-WDL-D

Request a Quote
SPECIFICATIONS
Interfaces
Audio interfaces:
  • 1-Port 3.5mm line-in (IN);
  • 1-Port 3.5mm line-out (OUT)
Network interfaces:
  • 1-Port 10/100MbE (RJ45)
Common interfaces:
  • 1-Port RS485 (5-pin Phoenix connector);
  • 1-Port alarm-in and alarm-out (Phoenix connector);
  • 1-Port CVBS (OUT) (RCA);
  • 1 SD card slot
Video Output

1080p
Supported protocols

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS, FTP, SSL,SSH
Supported codecs
Voice codecs:

G.711u/a, G.726, OPUS
Video codecs: H.265, H.264, MJPEG
Lens Specifications
Sensor

2MP 1/2.8" CMOS (1920 x 1080)
Lens Aperture

F1.2
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

-20 to +60°C (-4 to +140°F)
IP rating compliance

IP66
Power Supply
Power Supply Unit (PSU)

AC PSU: Not supported

DC PSU:
Type: PoE (802.3at)
Rated voltage range: 12 VDC
Maximum power consumption

4.9 W
Dimensions (HxWxD)

62.5 x 80.7 x 143.5 mm

(2.44 x 3.17 x 5.62 in)
Maximum Weight

0.45 kg (0.99 lb)
