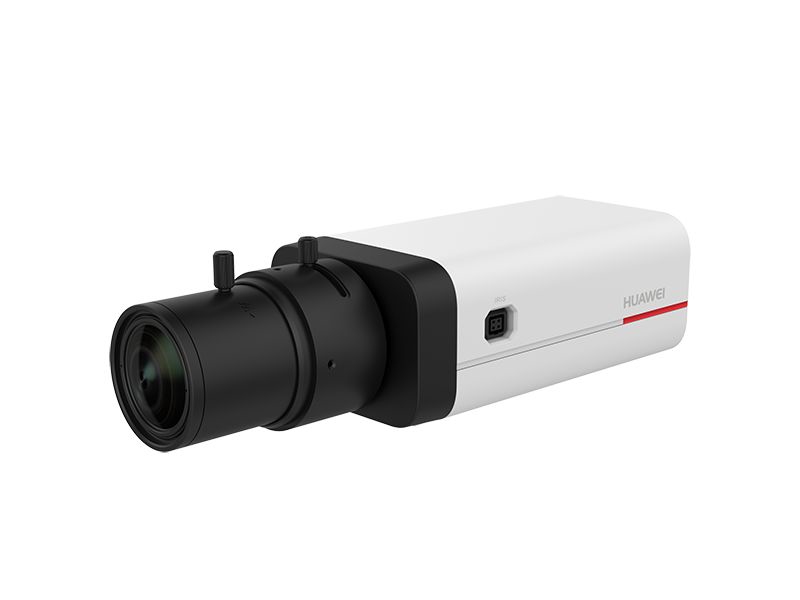

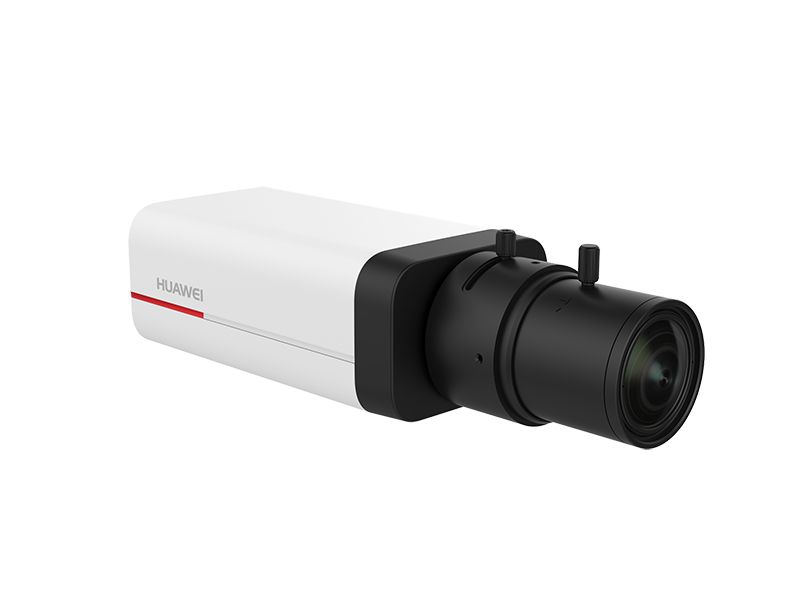

Huawei IPC6125-WDL-FA IP Camera

Download IPC6125-WDL-FA Datasheet (eng)

Available to quote:

IPC6125-WDL-FA

Request a Quote
SPECIFICATIONS
Interfaces
Audio interfaces:
  • 1-Port 3.5mm line-in (IN);
  • 1-Port 3.5mm line-out (OUT)
Network interfaces:
  • 1-Port 10/100/1000MbE (RJ45);
  • 1-Port SFP
Common interfaces:
  • 1-Port RS485 (5-pin Phoenix connector);
  • 1-Port alarm-in and alarm-out (Phoenix connector);
  • 1-Port CVBS (OUT) (RCA);
  • 1 SD card slot
Video Output

1080p
Supported protocols

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS, FTP, SSL,SSH
Supported codecs
Voice codecs:

G.711u/a, G.726, OPUS
Video codecs: H.265, H.264, MJPEG
Lens Specifications
Sensor

2MP 1/2.8" CMOS (1920 x 1080)
Lens Aperture

F1.4
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

-20 to +60°C (-4 to +140°F)
IP rating compliance

IP66
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 24 VAC

DC PSU:
Type: External, PoE (802.3at)
Rated voltage range: 12 VDC, 24 VDC
Maximum power consumption

8.6 W
Dimensions (HxWxD)

62.5 x 78 x 149.2 mm

(2.44 x 3.07 x 5.86 in)
Maximum Weight

0.5 kg (1.10 lb)
