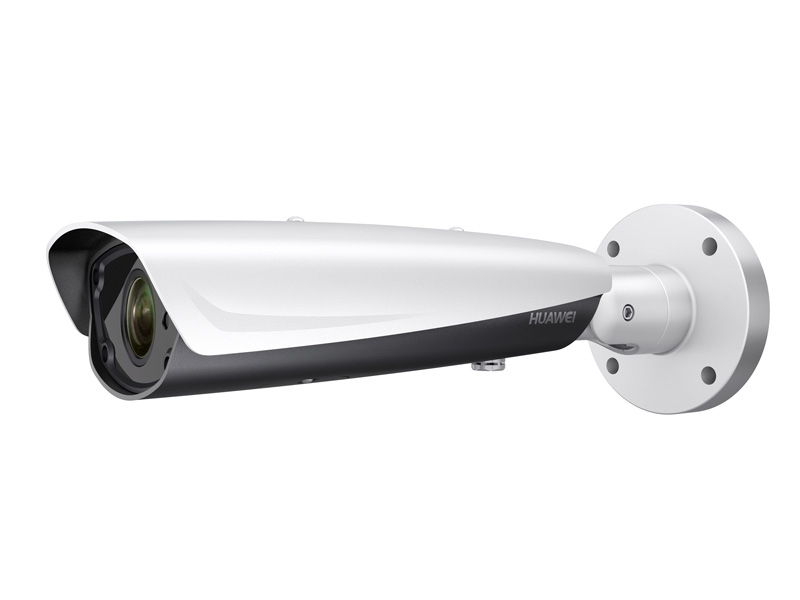

Huawei IPC6221-VRZ-SP IR Camera

Download IPC6221-VRZ-SP Datasheet (eng)

End-of-Sale

EOLA:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000009634/

Request a Quote
SPECIFICATIONS
Interfaces
Audio interfaces:
  • 1-Port 3.5mm line-in (IN);
  • 1-Port 3.5mm line-out (OUT)
Network interfaces:
  • 1-Port 10/100MbE (RJ45)
Common interfaces:
  • 1-Port RS485 (5-pin Phoenix connector);
  • 1-Port alarm-in and alarm-out (Phoenix connector);
  • 1-Port BNC (for debugging);
  • 1 SD card slot
Video Output

1080p
Supported protocols

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, TLS, NTP, SNMP(V1/V2/V3), 802.1x, QoS, DDNS, FTP, SSL,SSH
Supported codecs
Voice codecs:

G.711u/a, G.726
Video codecs: H.264, MJPEG
Lens Specifications
Sensor

2MP 1/2.8" CMOS (1920 x 1080)
Zoom

4.3x optical
Focal Length

f = 2.8 to 12 mm
Lens Aperture

F1.4
Maximum Field of View
Horizontal: 33.7° to 91.1°
Vertical: 18.6° to 41.7°
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

-40 to -60°C (-40 to +140°F)
IP rating compliance

IP66
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 24 VAC

DC PSU:
Type: External, PoE (802.3at)
Rated voltage range: 12 VDC, 24 VDC
Maximum power consumption

15.5 W
Dimensions (HxWxD)

353.6 x 128.1 x 120 mm

(13.89 x 5.03 x 4.72 in)
Maximum Weight

1.4 kg (3.08 lb)
