Juniper SRX300 series

Download Juniper SRX300 series Datasheet (eng)

Available to quote:

SRX300; SRX320

SRX340; SRX345



Request a Quote
SPECIFICATIONS
Interfaces

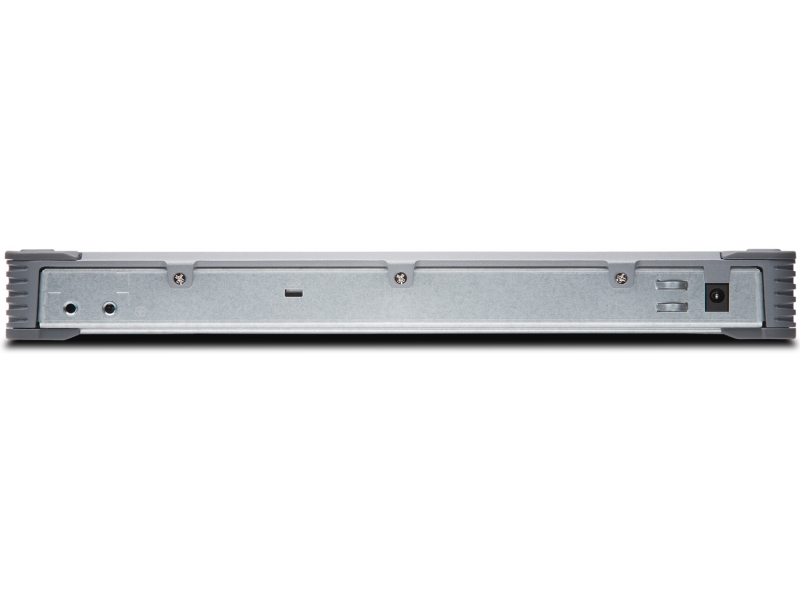

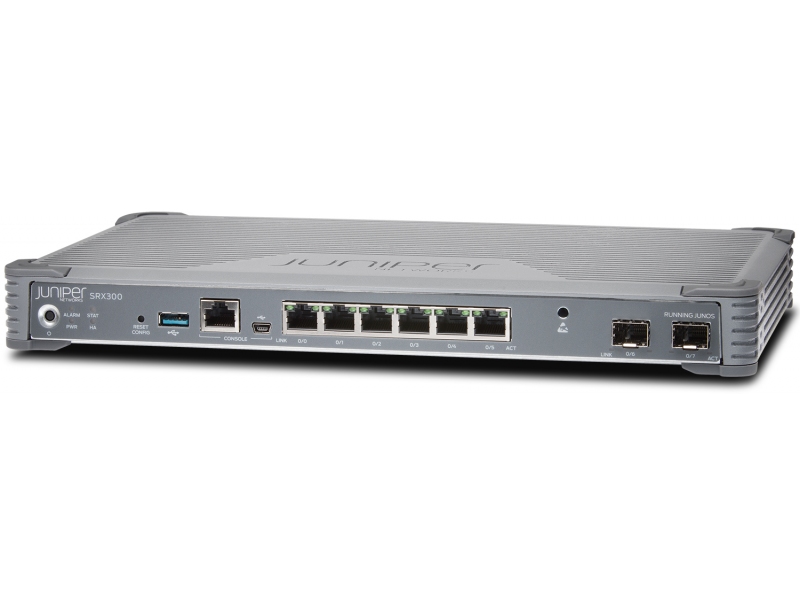

SRX300:
  • 6-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 1-Port USB;
  • 1-Port console (RJ45/miniUSB)

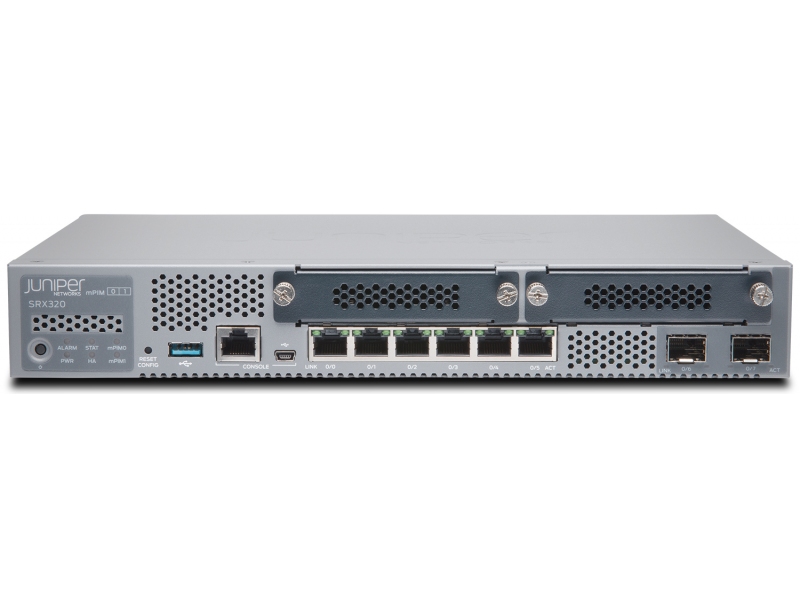

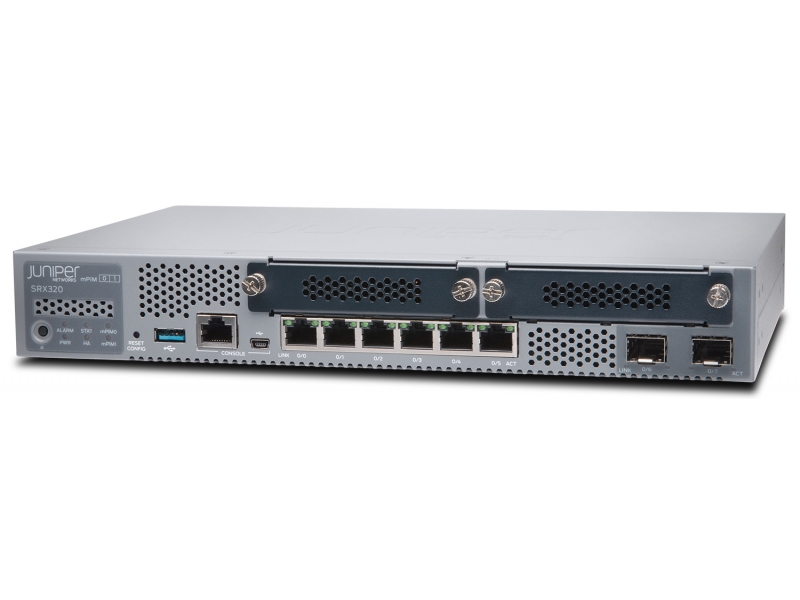

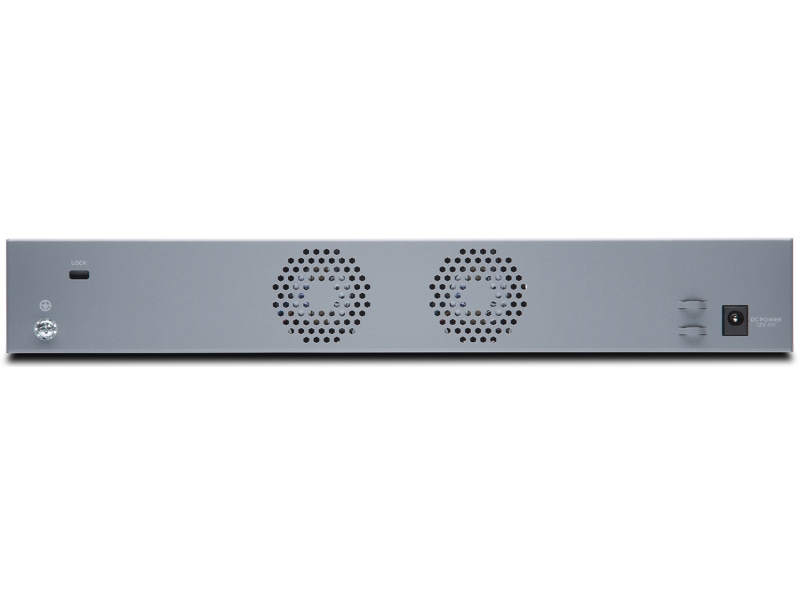

SRX320:
  • 6-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 1-Port USB;
  • 2 Mini PIM cards expansion slots;
  • 1-Port console (RJ45/miniUSB)
SRX320-POE
  • 6-Port 10/100/1000MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 1-Port USB;
  • 2 Mini PIM cards expansion slots;
  • 1-Port console (RJ45/miniUSB)

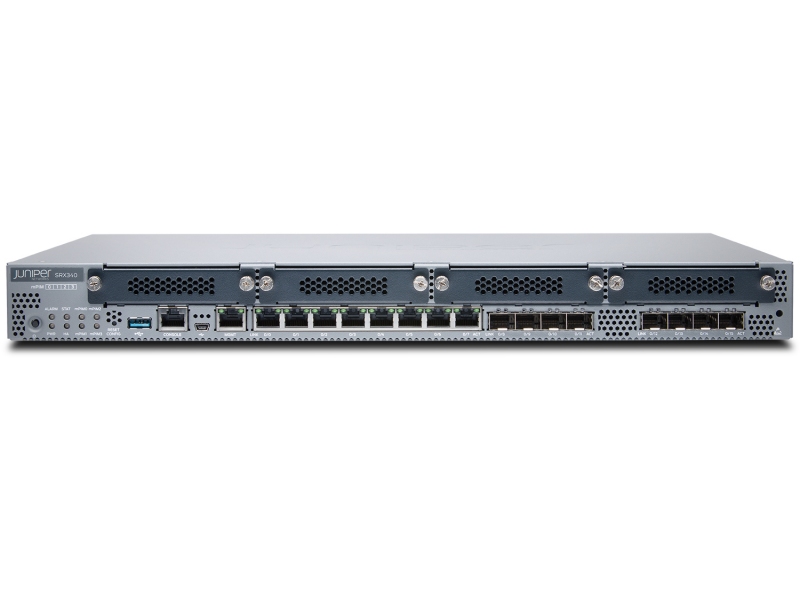

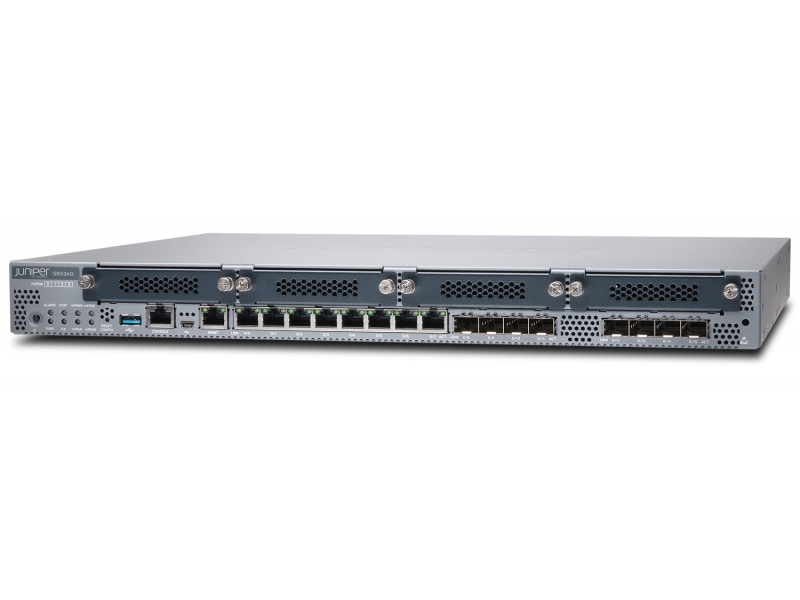

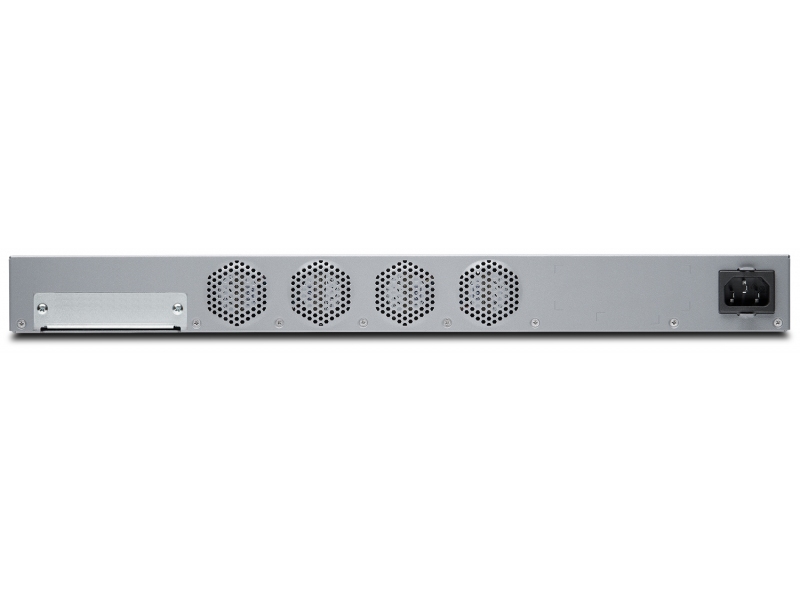

SRX340:
  • 8-Port 10/100/1000MbE (RJ45);
  • 8-Port 1GbE (SFP);
  • 1-Port USB;
  • 4 Mini PIM cards expansion slots;
  • 1 SSD slot;
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port console (RJ45/miniUSB)

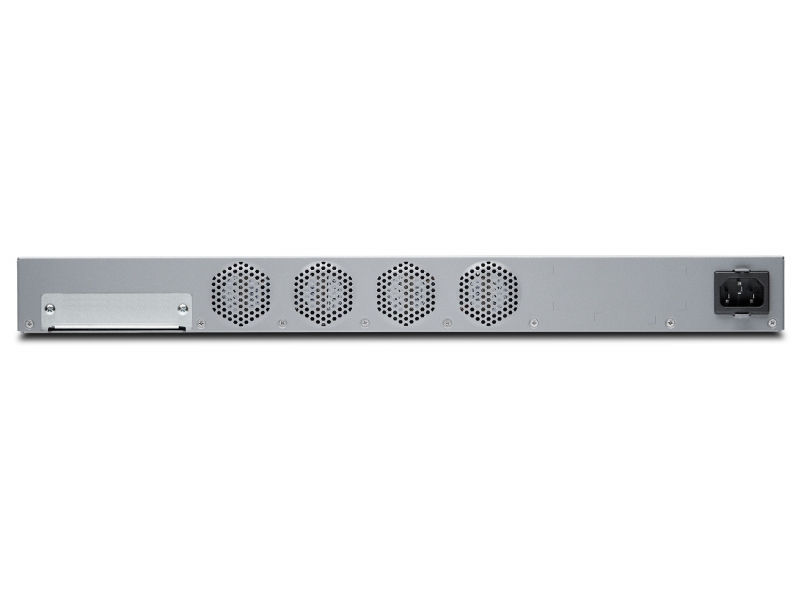

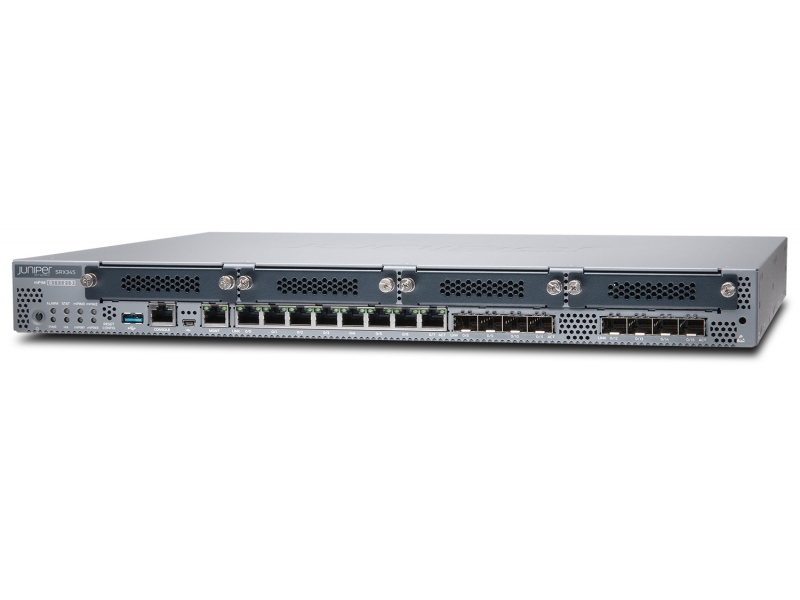

SRX345:
  • 8-Port 10/100/1000MbE (RJ45);
  • 8-Port 1GbE ports (SFP);
  • 1-Port USB;
  • 4 Mini PIM cards expansion slots;
  • 1 SSD slot;
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port console(RJ45/miniUSB)
Performance
Firewall throughput (Mbps)
SRX300: 500
SRX320/SRX320-POE: 500
SRX340: 1,000
SRX345: 1,000
Firewall throughput Kp/s)
SRX300: 200
SRX320/SRX320-POE: 200
SRX340: 350
SRX345: 550
Maximum concurrent sessions
SRX300: 64,000
SR320/SRX320-POE: 64,000
SRX340: 256,000
SRX345: 375,000
Connections per second
SRX300: 5,000
SRX320/SRX320-POE: 5,000
SRX340: 10,000
SRX345: 15,000
Maximum security policies

SRX300:

 1,000
SRX320/SRX320-POE: 1,000
SRX340: 2,000
SRX345: 4,000
IPsec VPN tunnels
SRX300: 256
SRX320/SRX320-POE: 256
SRX340: 1,024
SRX345: 2,048
IPS throughput (Mbps)
SRX300: 200
SRX320/SRX320-POE: 200
SRX340: 400
SRX345: 600
NGFW throughput (Mbps)
SRX300: 100
SRX320/SRX320-POE: 100
SRX340: 200
SRX345: 300
Maximum Number of Virtual Routers
SRX300: 32
SRX320/SRX320-POE: 32
SRX340: 64
SRX345: 128
Maximum Number of Security Zones
SRX300: 16
SRX320/SRX320-POE: 16
SRX340: 64
SRX345: 64
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type:
SRX300, SRX320, SRX320-POE: External
SRX340, SRX345: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Not supported
Power consumption
SRX300: 15.4 W
SRX320: 27 W
SRX320-POE: 112 W. Max PoE power is 90 W
SRX340: 122 W
SRX345: 122 W

Dimensions (HxWxD)
SRX300:

34.7 (1U) x 320.8 x 191 mm

(1.37 (1U) x 12.63 x 7.52 in)
SRX320:

43.9 (1U) x 299.9 x 191 mm

(1.73 (1U) x 11.81 x 7.52 in)
SRX320-POE:

43.9 (1U) x 299.9 x 191 mm

(1.73 (1U) x 11.81 x 7.52 in)
SRX340:

43.6 (1U) x 440.9 x 370.1 mm

(1.72 (1U) x 17.36 x 14.57 in)
SRX345:

43.6 (1U) x 440.9 x 370.1 mm

(1.72 (1U) x 17.36 x 14.57 in)
Maximum Weight
SR300: 1.98 kg (4.38 lb)
SRX320: 1.51 kg (3.28 lb)
SRX320-POE: 1.55 kg (3.4 lb)
SRX340: 4.90 kg (10.80 lb)
SRX345: 4.90 kg (10.80 lb)
Compatible expansion cards
Model Number Description
Mini PIM cards
SRX-MP-1SERIAL-R 1-Port serial (DCE/DTE)
SRX-MP-1VDSL2-R 1-Port VDSL2 Annex A/M
SRX-MP-1T1E1-R 1-Port T1/E1
