| Interfaces | |
|

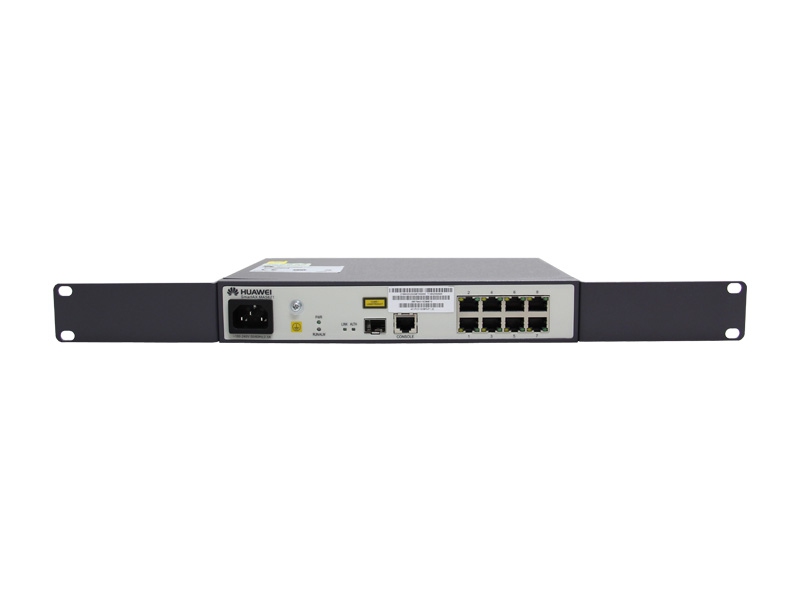

| MA5821-8FE: |
- 1-Port SFP (10G PON / GPON);
- 8-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|

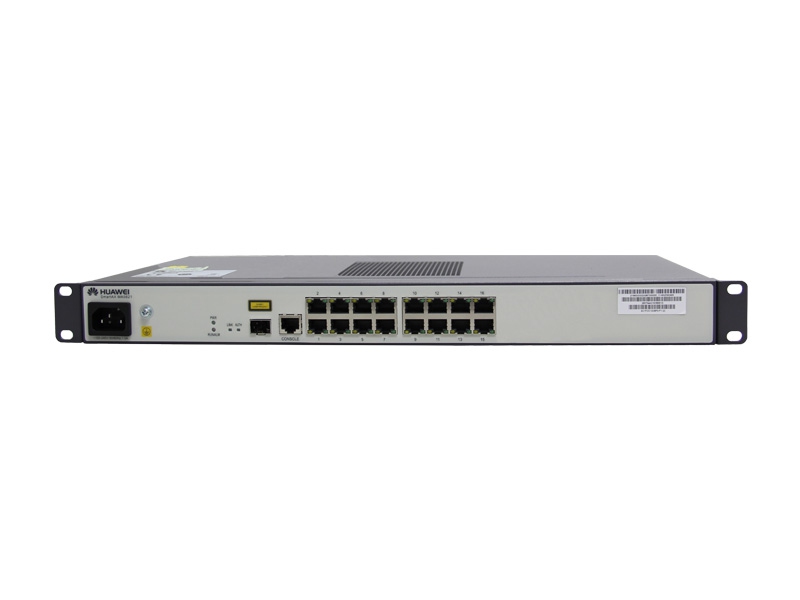

| MA5821-16Fe: |
- 1-Port SFP (10G PON / GPON);
- 16-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|
| MA5821-24FE: |
- 1-Port SFP (10G PON / GPON);
- 24-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|
| MA5821-24GE: |
- 1-Port SFP (10G PON / GPON);
- 24-Port 10/100/1000MbE (RJ45);
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth | 12.4 Gb/s |
| Forwarding Rate | 6 Mp/s
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4000. QinQ; VLAN Translation |
| MAC Address Table |
| Maximum Capacity: |
4,000 entries |
| MAC address filterring: |
Supported |
|
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 Features | |
| ARP Table | 1,024 entries |
| Routing Table | |
| IP Routing | Static Routes |
| Security | |
|
| IPv4 / IPv6 ACL: |
32 Ingress + Egress |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Management | |
| Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 220 VAC |
|
| Maximum Power consumption | |
|
| MA5821-8FE: |
10 W |
| MA5821-16FE: |
14 W |
| MA5821-24FE: |
18 W |
| MA5821-24GE: |
28 W |
|
| Dimensions (HxWxD) | |
|
| MA5821-8FE |
43.6 (1U) x 250 x 180 mm (1.71 (1U) x 9.84 x 7.08 in)
|
| MA5821-16FE / MA5821-24FE / MA5821-24GE: |
43.6 (1U) x 442 x 220 mm (1.71 (1U) x 17.40 x 8.66 in)
|
|
| Maximum Weight | |
|
|
МА5821-8FE:
|
1.23 kg (2.71 lb) |
|
MA5821-16FE:
|
2.10 kg (4.63 lb) |
| MA5821-24FE / MA5821-24GE: |
2.18 kg (4.8 lb) |
|
