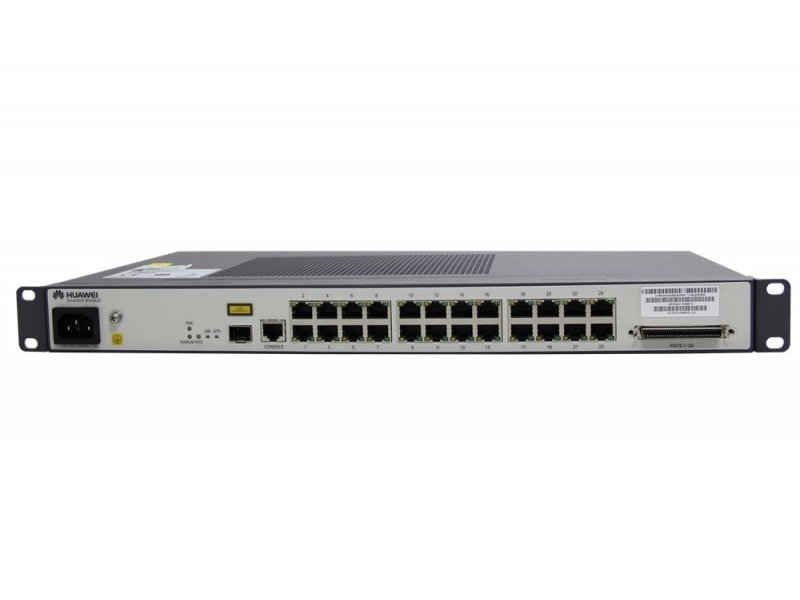

Huawei 10G PON MDU SmartAX MA5822

Download SmartAX MA5822 Datasheet (eng)

Available to quote:

SmartAX MA5822

Request a Quote
SPECIFICATIONS
Interfaces
MA5822-8FE:
  • 1-Port SFP (10G PON / GPON);
  • 8-Port 10/100MbE (RJ45);
  • 8-Port POTS (DB68);
  • 1-Port console (RJ45)
MA5822-16FE:
  • 1-Port SFP (10G PON / GPON);
  • 16-Port 10/100MbE (RJ45);
  • 16-Port POTS (DB68);
  • 1-Port console (RJ45)
MA5822-24FE:
  • 1-Port SFP (10G PON / GPON);
  • 24-Port 10/100MbE (RJ45);
  • 24-Port POTS (DB68);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth

12.4 Gb/s
Forwarding Rate

6 Mp/s
Layer 2 Features
VLAN

IEEE 802.1Q: 4096.  QinQ; VLAN Translation
MAC Address Table
Maximum Capacity: 4,000 entries
MAC address filterring: Supported
Multicast
IGMP snooping: v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table

1,024 entries
Routing Table
IPv4 / IPv6: 256 routes
IP Routing

Static Routes
Security
IPv4 / IPv6 ACL: 32 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p
Voice Features
Supported protocols: SIP / H.248
Voice codecs: G.711 A/µ, G.729A
Fax: T.30/T.38
Management

Telnet; SSH; SNMP; OMCI
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

-40 to +65°C (-40 to +149°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 220 VAC
Maximum Power consumption
MA5822-8FE: 10 W
MA5822-16FE: 14 W
MA5822-24FE: 18 W

Dimensions (HxWxD)

43.6 (1U) x 442 x 220 mm (1.71 (1U) x 17.40 x 8.66 in)
Maximum Weight

МА5822-8FE:

 2.12 kg (4.67 lb)

MA5822-16FE:

 2.35 kg (5.18 lb)
MA5822-24FE: 2.43 kg (5.36 lb)
