| Interfaces | |
|

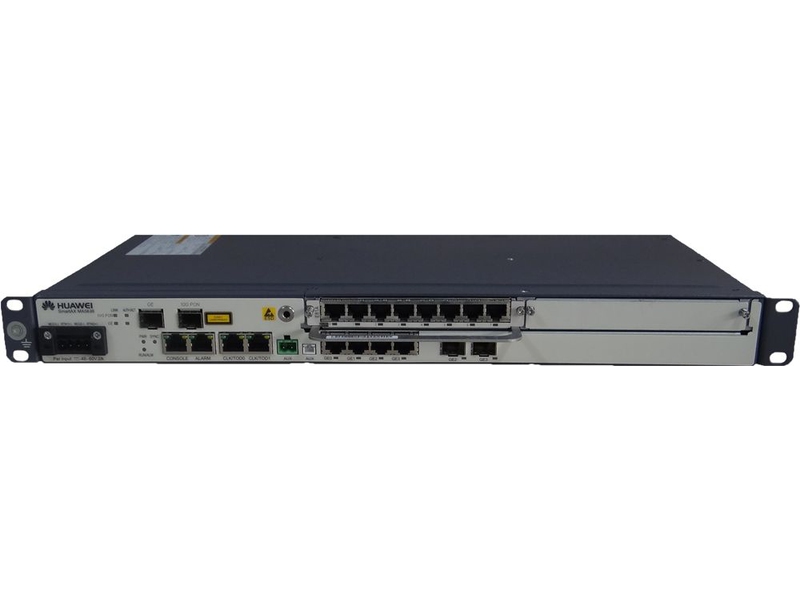

| MA5898: |
- 2 Service cards slots;
- 1-Port SFP (10G PON / GPON);
- 1-Port 10/100/1000MbE (RJ45) (cascading)
- 1-Port environment monitoring (RJ45);
- 1-Port console (RJ45);
- 2-Port clock / time of day (RJ45);
- 1-Port battery backup;
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP)
|
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4000. QinQ; VLAN Translation |
| MAC Address Table |
| Maximum Capacity: |
4,000 entries |
| MAC address filterring: |
Supported |
|
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 1,024 entries |
| Routing Table | |
| IP Routing | Static Routes |
| Security | |
|
| IPv4 / IPv6 ACL: |
32 Ingress + Egress |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Management | |
| Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +65°C (-40 to +149°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
90 to 264 VAC, 50-60 Hz |
| DC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
38.4 to 72 VDC |
|
| Maximum Power consumption | |
| 31 W
|
| Dimensions (HxWxD) | |
| 43.6 (1U) x 442 x 245 mm (1.71 (1U) x 17.40 x 9.64 in) |
| Maximum Weight | |
| 4.3 kg (9.4 lb) |
| Compatible Expansion Cards | |
|
| Model Number |
Description |
| Service Cards: |
| Ethernet Service Cards: |
|
| EGUC |
8-Port 10/100/1000MbE (RJ45) |
|
|
| E1 Service Card |
|
| E81A |
16-channel E1 (RJ45) |
|
