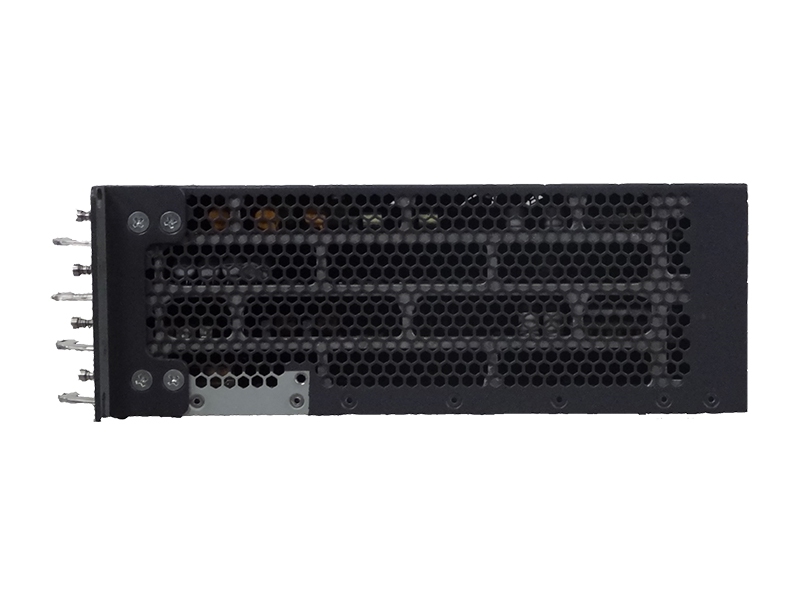

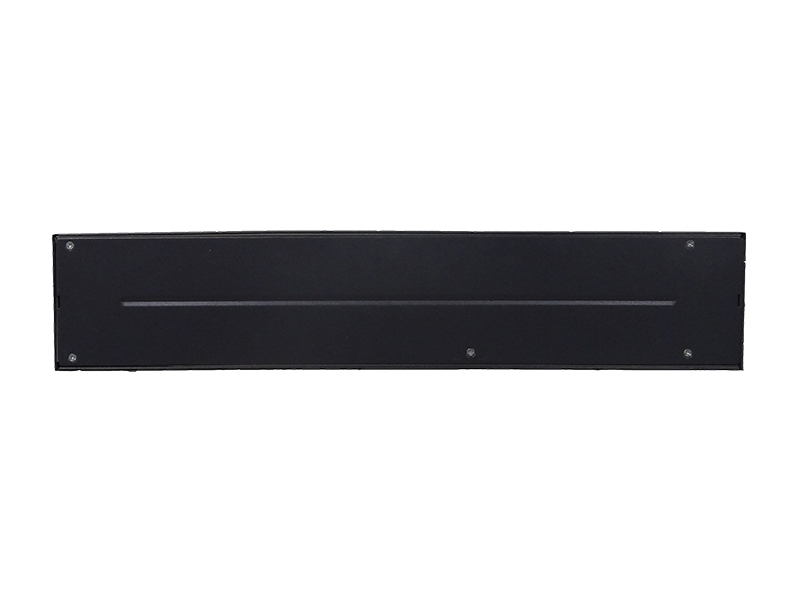

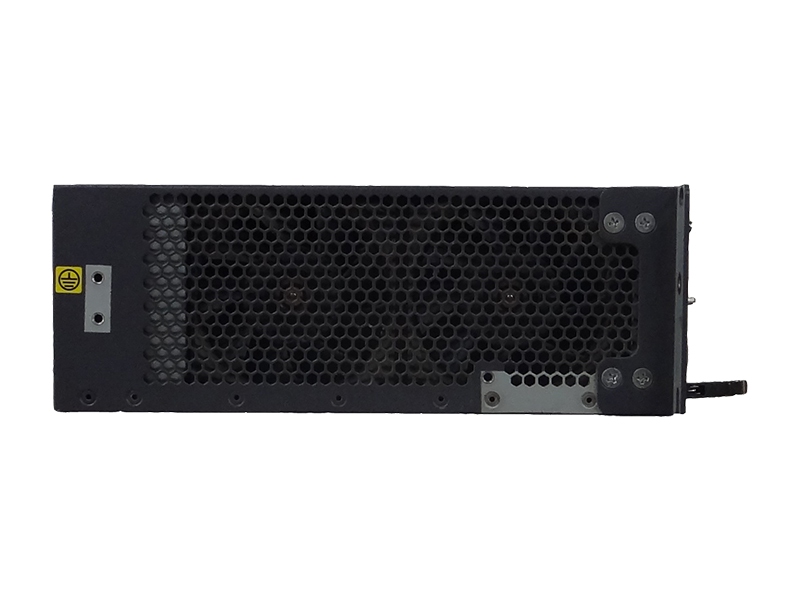

Huawei GPON MDU SmartAX MA5616

Download SmartAX MA5616 Datasheet (eng)

Available to quote:

SmartAX MA5616

Request a Quote
SPECIFICATIONS
Interfaces
MA5616
  • 4 Service cards slots;
  • 1 Control card slot;
  • 1 Power card slot
Performance
Switching Bandwidth
MA5616 with CCUB control card: 10.4 Gb/s
MA5616 with CCUC control card: 20 Gb/s
MA5616 with CCUE control card: 28 Gb/s
Forwarding Rate
MA5616 with CCUB control card: up to 15.6 Mp/s
MA5616 with CCUC control card: up to 30 Mp/s
MA5616 with CCUE control card: up to 51 Mp/s
Layer 2 Features
VLAN

IEEE 802.1Q: 4000.  QinQ; VLAN Translation
MAC Address Table
Maximum Capacity:
MA5616 with CCUB control card: 4,000 entries
MA5616 with CCUC control card: 4,000 entries
MA5616 with CCUE control card: 16,000 entries
Multicast
IGMP snooping: v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table

1,024 entries
Routing Table
IPv4 / IPv6: 256 routes
IP Routing

Static Routes
Security
IPv4 / IPv6 ACL:
CCUB control card: 8 Ingress + Egress
CCUC control card: 32 Ingress + Egress
CCUE control card: 32 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p
Management

Telnet; SSH; SNMP; OMCI
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

-40 to +65°C (-40 to +149°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 1
Rated voltage range: 90 to 264 VAC, 50-60 Hz
AC PSU with power backup:
Type: Removable
Quantity: 1
Rated voltage range:
  • AC power supply: 90 to 264 VAC
  • Power backup: -43.2 to -52 V DC
DC PSU:
Type: Removable
Quantity: 1
Rated voltage range: -38.4 to -72 VDC
Maximum Power consumption

Up to 300 W
Dimensions (HxWxD)
MA5616 (including mounting brackets):

88.1 (2U) x 482.6 х 245 mm (3.47 (2U) x 19 x 9.65 in)
Maximum weight

up to 10.5 kg (23.15 lb)
Compatible Expansion Cards
Model Number Description
Control Cards:
H831CCUB: Control Card for MA5616 (1 uplink daughter card and 1 voice daughter card)
H831CCUC: Control Card for MA5616 (1 uplink daughter card and 1 voice daughter card)
H831CCUE: Control Card for MA5616 (1 uplink daughter card and 1 voice daughter card)
Uplink daughter cards:
H831GP1A 1-Port GPON and 1-Port SFP. Compatible with CCUB control card
H831GE1A 2-Port GE SFP. Compatible with CCUB control card
H831UP2A 2-Port adaptive SFP (GPON or GE). Compatible with CCUC and CCUE control cards
H831UP2C 2-Port adaptive SFP (GPON or GE), support stratum-3 clock synchronization. Compatible with CCUC and CCUE control cards
H831UP2AA 2-Port adaptive SFP (GPON or GE). Compatible with CCUE control card
H831UP2CA 2-Port adaptive SFP (GPON or GE), support stratum-3 clock synchronization. Compatible with CCUE control card
H833XP1A 1-Port 10G GPON. Compatible with CCUE control card
Voice daughter cards:
H836ASDC supports up to 64 voice users. Compatible with CCUB, CCUC, CCUE control cards
H836ASDM supports up to 104 voice users. Compatible with CCUB, CCUC, CCUE control cards
H836ASDF supports up to 254 voice users. Compatible with CCUE control card
Service Cards:
ADSL2+ Service Cards:
H83AADLE 32-channel ADSL2+ over POTS
H835ADLE 32-channel ADSL2+ over POTS
H836ADLE 32-channel ADSL2+ over POTS
H836ADPE 64-channel ADSL2+ over POTS
VDSL2 Service Card
H835VDGE 16-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H835VDSH 24-channel VDSL2 over POTS
H835VDTH 24-channel VDSL2 over ISDN
H835VDSE 24-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83BVDLE 32-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83BVDLF 32-channel VDSL2
H83BVCLE 32-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83BVCLF 32-channel VDSL2
H836VCLE 32-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83BVDMM 48-channel VDSL2
H83BVCMM 48-channel VDSL2.
H83DVCMM 48-channel VDSL2.
H83DSDMM 48-channel SuperVector
H836VCPE 64-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83DVCPE 64-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83DVCPD 64-channel VDSL2
SHDSL Service Card:
H832SHLH 16-channel SHDSL
Ethernet Service Cards:
H831EIUD

4 Combo Ports 1GbE (RJ45/SFP) and 4-Port 100BASE-FX (SFP)
H831EIUA 16-Port 100BASE-FX (SFP)
Voice Service Cards:
H838ASRB 32-channel POTS
H837ASPB 64-channel POTS
H838ASPB 64-channel POTS
H839ASPB 64-channel POTS
H832DSLD 8-channel ISDN
H831EDTB 8-Port G.SHDSL and 8-port E1
Combo Service Cards:
H83BCVLC 32-channel VDSL2 and POTS
H83BCVLE 32-channel VDSL2 and POTS
H836CCME 48-channel VDSL2 and POTS
H83DCCME 48-channel VDSL2 and POTS
H835CALE 32-channel ADSL2+ and POTS
Power Cards:
H831PDIA One -48 VDC input, a maximum output power of 300 W
H832PDIA Two -48 VDC inputs, a maximum output power of 300 W
H832PDVA One -48 VDC input, a maximum output power of 400 W
H832PDVAA One -48 VDC input, a maximum output power of 400 W
H832PDNAA One -48 VDC input, a maximum output power of 400 W
H831PAVDA One 220 VAC or 110 VAC input, a maximum output power of 400 W. With one battery input for power backup
H831PAIA One 220 VAC or 110 VAC input, a maximum output power of 200 W
H831PAIC One 220 VAC or 110 VAC input, a maximum output power of 400 W
H831PAIB One 220 VAC or 110 VAC input, a maximum output power of 200 W. With one battery input for power backup
