| Interfaces | |
|

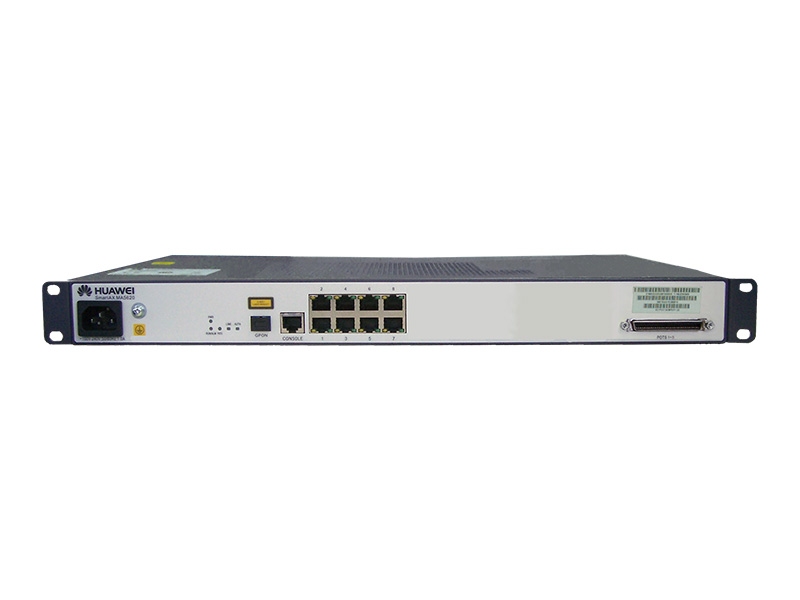

| MA5620-8 |
- 1-Port GPON (SC/UPC);
- 8-Port 10/100MbE (RJ45);
- 8-Port POTS (DB68)
- 1-Port console (RJ45)
|

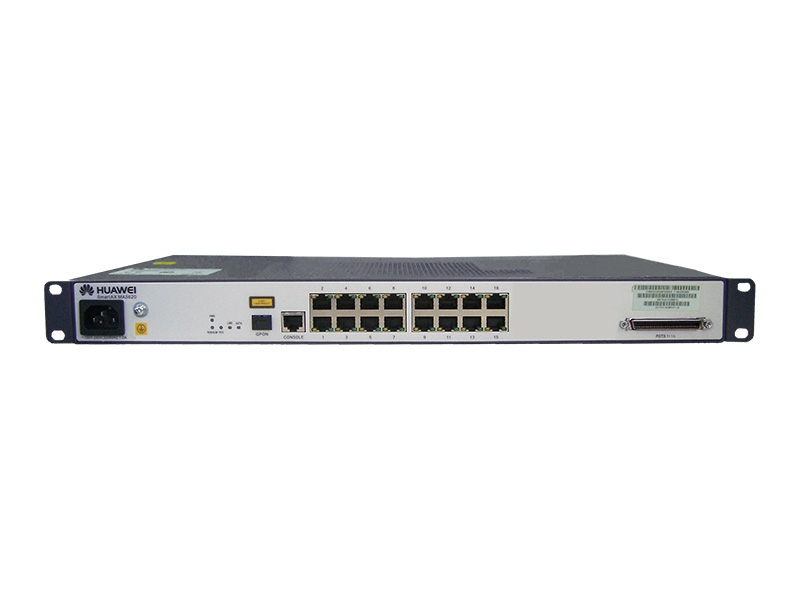

| MA5620-16 |
- 1-Port GPON (SC/UPC);
- 16-Port 10/100MbE (RJ45);
- 16-Port POTS (DB68)
- 1-Port console (RJ45)
|

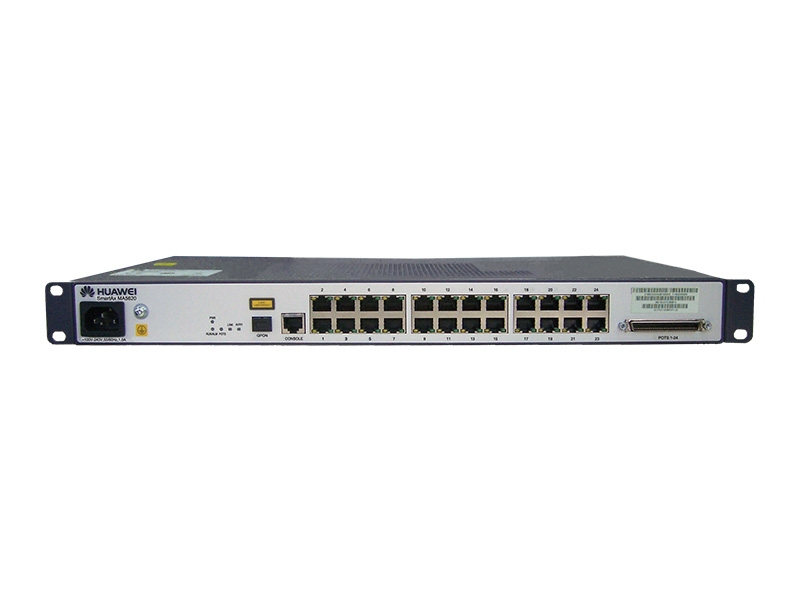

| MA5620-24 |
- 1-Port GPON (SC/UPC);
- 24-Port 10/100MbE (RJ45);
- 24-Port POTS (DB68)
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
| MA5620-8: |
5.6 Gb/s |
| MA5620-16: |
7.2 Gb/s |
| MA5620-24: |
8.8 Gb/s |
|
| Forwarding Rate |
| MA5620-8: |
8.4 Mp/s |
| MA5620-16: |
10.8 Mp/s |
| MA5620-24: |
13.2 Mp/s |
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Security | |
|
| IPv4 ACL: |
128 Ingress + Egress |
| IPv6 ACL: |
Not supported |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
only RADIUS is supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Voice features | |
|
| Supported protocols: |
SIP / H.248 |
| Voice codecs: |
G.711A/µ; G.729; G.723.1High; G.723Low |
| Fax: |
T.30/T.38 |
|
| Management | |
| Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity |
1 |
| Rated voltage range: |
90 to 300 VAC, 50-60 Hz |
|
| Power consumption | |
|
| MA5620-8: |
18.94 W |
| MA5620-16: |
29.6 W |
| MA5620-24: |
39.9 W |
|
| Dimensions (HxWxD) | |
| 43.6 (1U) x 442 х 220 mm (1.72 (1U) x 17.4 x 8.66 in) |
| Maximum Weight | |
|
| MA5620-8: |
2.12 kg (4.67 lb) |
| MA5620-16: |
2.35 kg (5.18 lb) |
| MA5620-24: |
2.43 kg (5.36 lb) |
|
