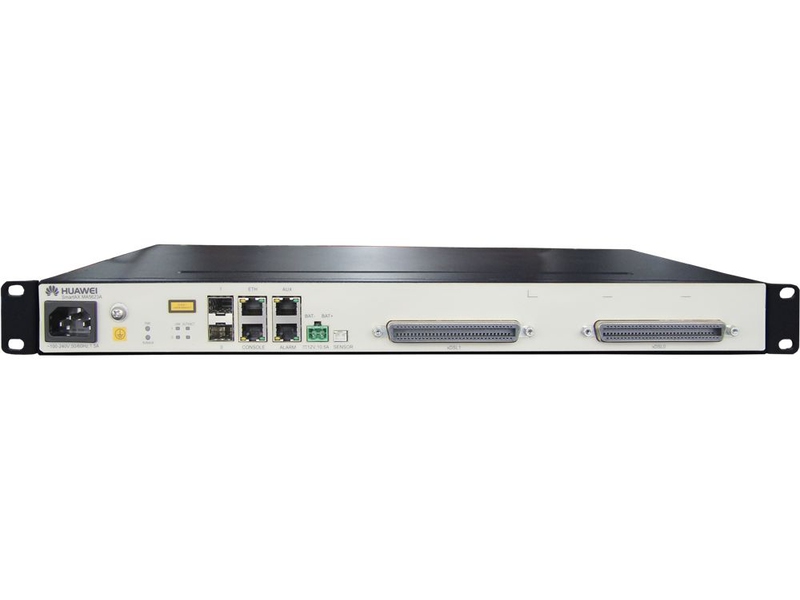

Huawei GPON MDU SmartAX MA5623A

Download SmartAX MA5623A Datasheet (eng)

Available to quote:

SmartAX MA5623A

Request a Quote
SPECIFICATIONS
Interfaces
MA5623A:
  • 2-Port SFP (GPON / GE);
  • 48-Port VDSL;
  • 1-Port Battery backup;
  • 1-Port Environment monitoring;
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth

17 Gb/s
Forwarding Rate

25.5 Mp/s
Layer 2 Features
VLAN

IEEE 802.1Q: 4096.  QinQ; VLAN Translation
Security
IPv4 / IPv6 ACL: Not supported
Local AAA: Supported
DHCP Server: Not supported
DHCP Relay: Supported
DHCP Snooping: Supported
Loop detection: Not supported
IP Source Guard: Not supported
Broadcast, multicast, unknown unicast suppression: Not supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p
Management

Telnet; SSH; SNMP; OMCI
Environmental Conditions
Relative Humidity

5 to 95%
Operating Temperature

-40 to +65°C (-40 to +149°F)
Power Supply
Power Supply Unit (PSU)
AC PSU with battery backup:
Type: Built-in
Quantity: 1
Rated voltage range:

AC PSU: 90 to 300 VAC, 50-60 Hz

Battery backup: 12V DC
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 48 VDC
Power consumption

up to 80 W
Dimensions (HxWxD)

43.6 (1U) x 482.6 x 220 mm (1.71 (1U) x 19 x 8.66 in)
Maximum Weight

3.0 kg (6.61 Ib)
