| Interfaces | |
|
| MA5626-8 (Reverse PoE) |
- 1-Port GPON (SC/UPC);
- 8-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|

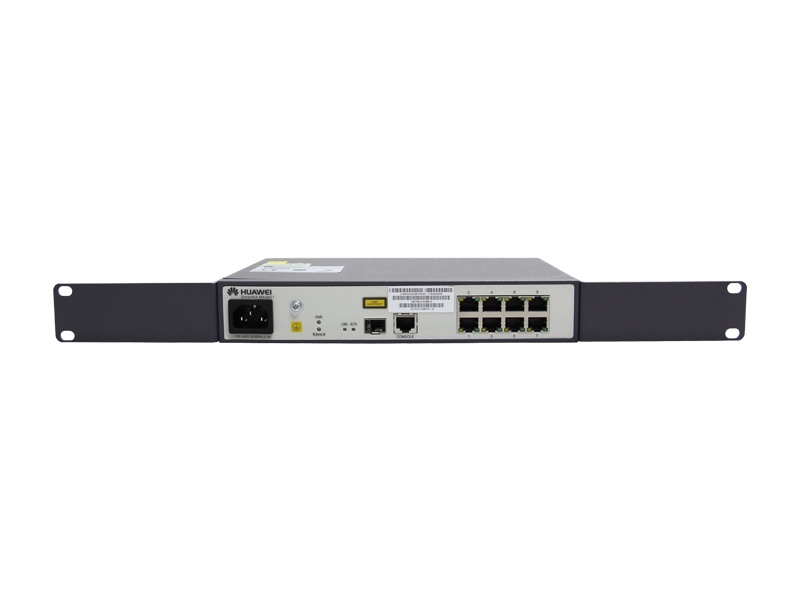

| MA5626-8 |
- 1-Port GPON (SC/UPC);
- 8-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|

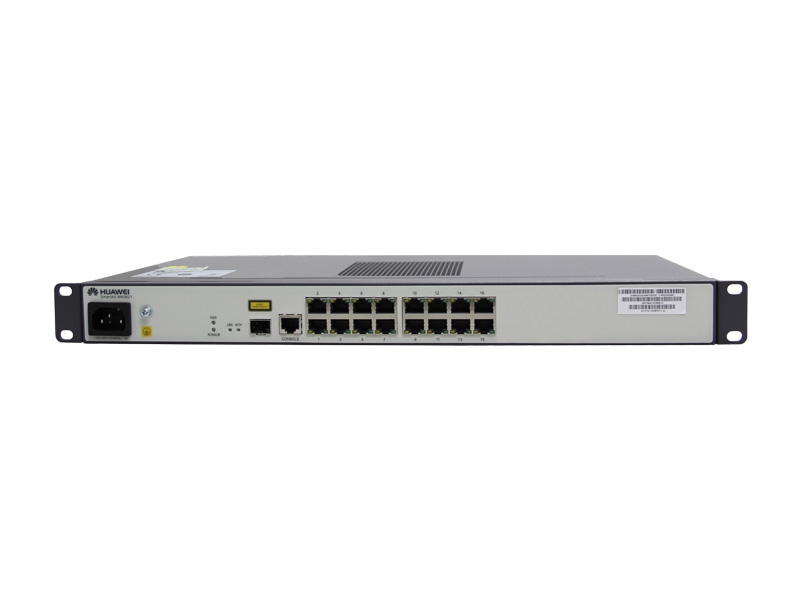

| MA5626-16 |
- 1-Port GPON (SC/UPC);
- 16-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|

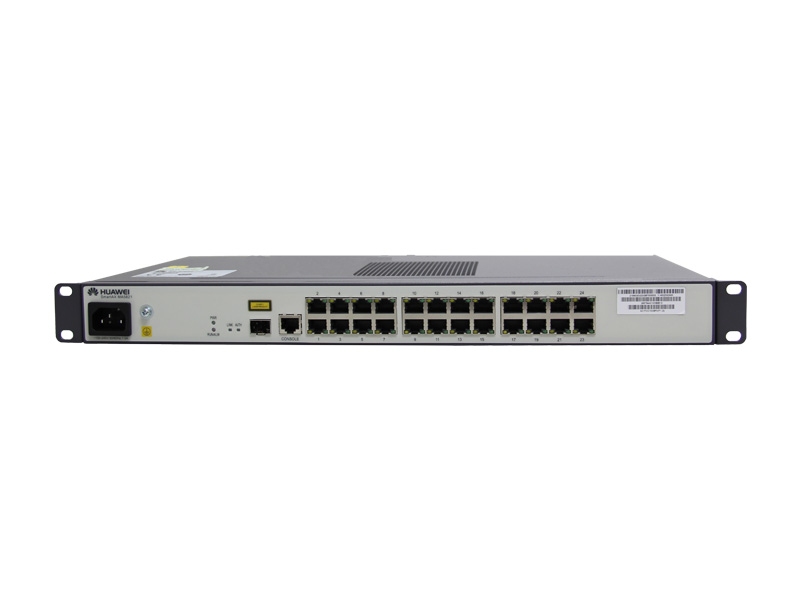

| MA5626-24 |
- 1-Port GPON (SC/UPC);
- 24-Port 10/100MbE (RJ45);
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
| MA5626-8 (Reverse PoE): |
5.6 Gb/s |
| MA5626-8: |
5.6 Gb/s |
| MA5626-16: |
7.2 Gb/s |
| MA5626-24: |
8.8 Gb/s |
|
| Forwarding Rate |
| MA5626-8 (Reverse PoE): |
8.4 Mp/s |
| MA5626-8: |
8.4 Mp/s |
| MA5626-16: |
10.8 Mp/s |
| MA5626-24: |
13.2 Mp/s |
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Security | |
|
| IPv4 ACL: |
128 Ingress + Egress |
| IPv6 ACL: |
Not supported |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
only RADIUS is supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Management | |
| Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
90 to 300 VAC, 50-60 Hz |
|
| Power consumption | |
|
| MA5626-8 (Reverse PoE) |
8.1 W |
| MA5626-8: |
8.1 W |
| MA5626-16: |
11.05 W |
| MA5626-24: |
14.6 W |
|
| Dimensions (HxWxD) | |
|
| MA5626-8 (Reverse PoE): |
43.6 (1U) x 150 х 180 mm (1.72 (1U) x 5.9 x 7.08 in)
|
| MA5626-8: |
43.6 (1U) x 150 х 180 mm (1.72 (1U) x 5.9 x 7.08 in)
|
|
MA5626-16:
|
43.6 (1U) x 442 х 220 mm (1.72 (1U) x 17.4 x 8.66 in)
|
| MA5626-24: |
43.6 (1U) x 442 х 220 mm (1.72 (1U) x 17.4 x 8.66 in)
|
|
| Maximum Weight | |
|
| MA5626-8 (Reverse PoE) |
1.25 kg (2.76 lb) |
| MA5626-8: |
1.23 kg (2.71 lb) |
| MA5626-16: |
2.10 kg (4.63 lb) |
| MA5626-24: |
2.18 kg (4.8 lb) |
|
