| Interfaces | |
|

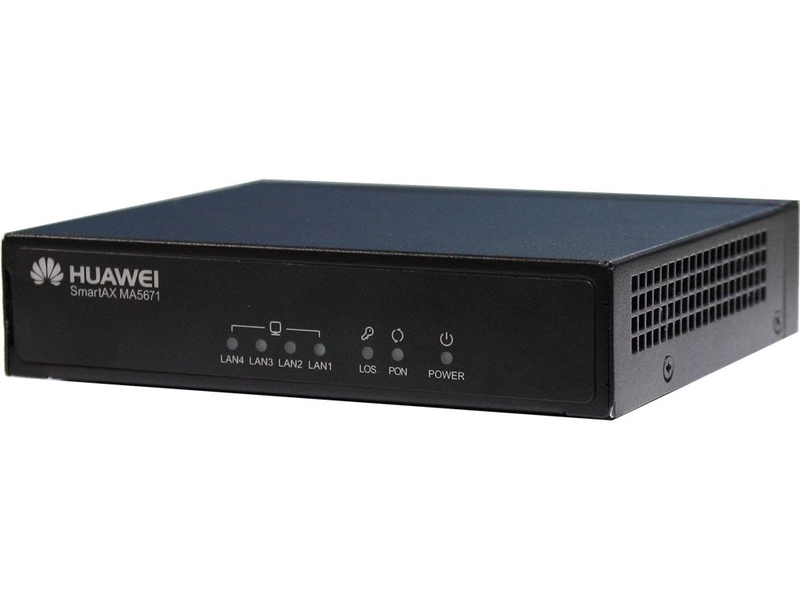

| MA5671: |
- 1-Port GPON (SC/UPC);
- 4-Port 10/100/1000BASET (RJ45)
|
| MA5673: |
- 1-Port GPON (SC/UPC);
- 4-Port 10/100/1000BASET (RJ45);
- 4-Port POTS (RJ11);
- 4-Port E1 (RJ45);
- 1-Port USB;
- 1-Port battery backup
|

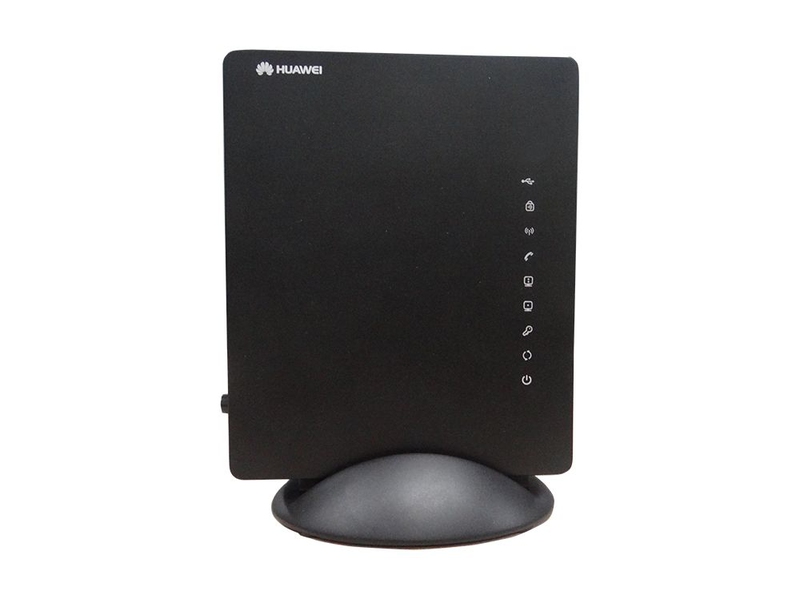

| MA5675: |
- 1-Port GPON (SC/UPC);
- 4-Port 10/100/1000BASET (RJ45);
- 4-Port POTS (RJ11);
- Wi-Fi (IEEE 802.11 b/g/n);
- 1-Port USB;
- 1-Port battery backup
|

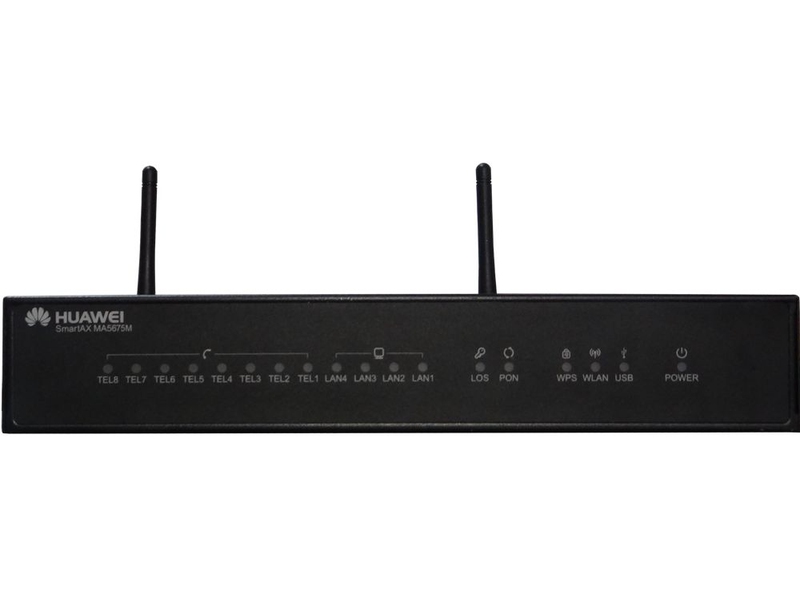

| MA5675M: |
- 1-Port SFP (GPON / GE);
- 4-Port 10/100/1000BASET (RJ45);
- 8-Port POTS (RJ11);
- Wi-Fi (IEEE 802.11 b/g/n);
- 1-Port USB;
- 1-Port battery backup
|
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 16. QinQ; VLAN Translation |
| MAC Address Table |
| Maximum Capacity: |
1,024 entries |
| MAC address filterring: |
Supported |
|
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
255 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 512 entries |
| Routing Table | 32 routes
|
| IP Routing | Static Routes |
| MPLS/VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Not supported |
| DHCP Server |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Voice Features | |
|
| Supported protocols: |
SIP |
| Voice codecs: |
G.711A, G.711m, G.729a, G.729b. |
| Fax: |
T.30/T.38 |
|
| Management | |
| Web-management; Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU with battery backup: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
AC PSU: 110 to 220 VAC, 50-60 Hz;
Battery backup: 12 VDC
|
| DC PSU: |
Not supported
|
|
| Maximum Power consumption | |
|
| MA5671: |
5 W |
| MA5673: |
15 W |
| MA5675: |
14 W |
| MA5675М: |
15 W |
|
| Dimensions (HxWxD) | |
|
| MA5671: |
27 x 134 x 115 mm (1.06 x 5.27 x 4.52 in)
|
| MA5673: |
43.6 x 250 x 180 mm (1.71 x 9.84 x 7.08 in)
|
| MA5675: |
30 x 260 x 180 mm (1.18 x 10.23 x 7.08 in)
|
| MA5675M: |
43.6 x 250 x 180 mm (1.71 х 9.84 х 7.08 in)
|
|
| Maximum weight | |
|
| MA5671: |
0.5 kg (1.10 Ib)
|
| MA5673: |
1.5 kg (3.30 Ib)
|
| MA5675: |
1 kg (2.20 Ib)
|
| MA5675М: |
1 kg (2.20 Ib)
|
|
