| Interfaces | |
|

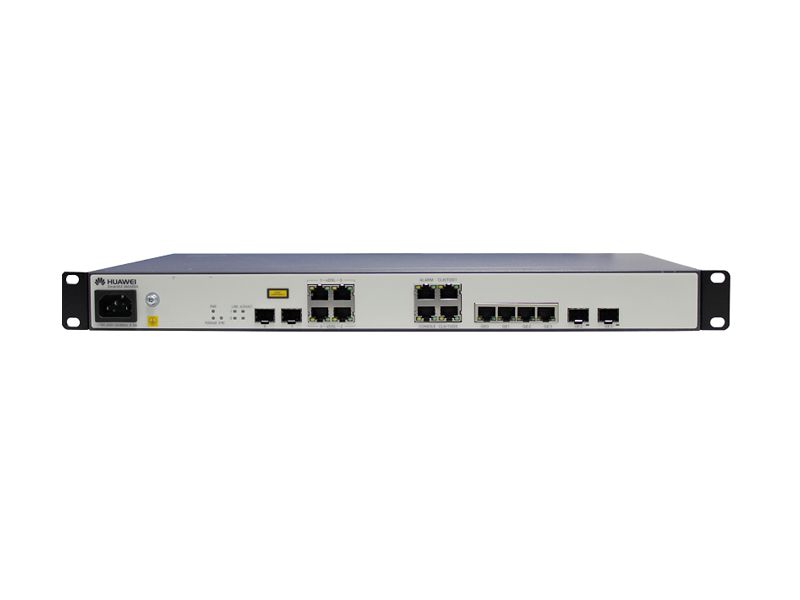

| MA5694 (4 ports): |
- 2-Port SFP (GPON / GE);
- 4-Port VDSL2 (RJ11);
- 1-Port environment monitoring (RJ45);
- 1-Port console (RJ45);
- 2-Port clock / TOD (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP)
|

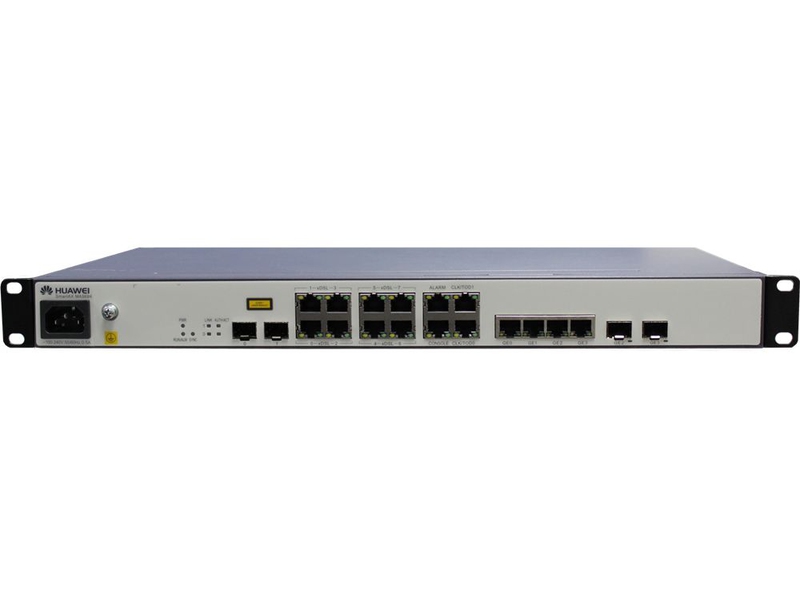

| MA5694 (8 ports): |
- 2-Port SFP (GPON / GE);
- 4-Port VDSL2 (RJ11);
- 1-Port environment monitoring (RJ45);
- 1-Port console (RJ45);
- 2-Port clock / TOD (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP)
|

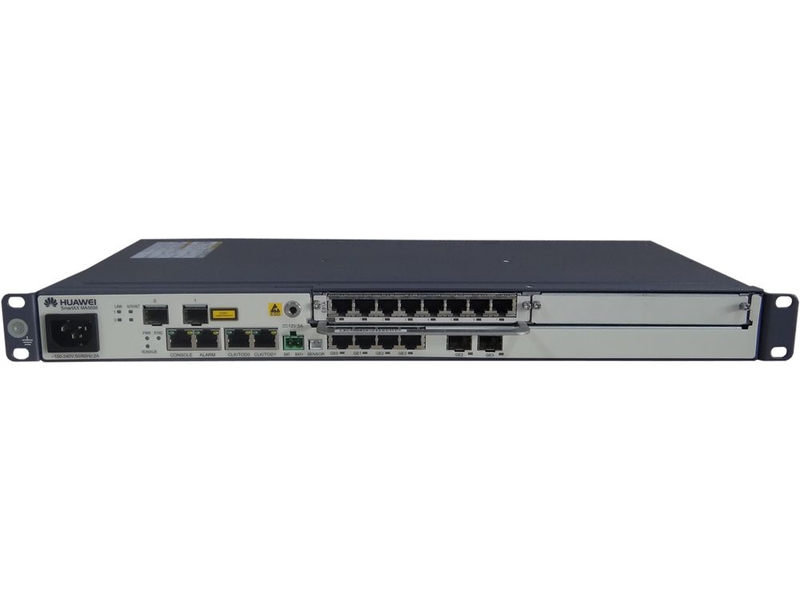

| МА5698: |
- 2-Port SFP (GPON / GE);
- 1-Port environment monitoring (RJ45);
- 1-Port console (RJ45);
- 2-Port clock / TOD (RJ45);
- 1-Port battery backup;
- 4-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP);
- 2 expansion slots
|
|
| Performance | |
| Switching Bandwidth | |
| Forwarding Rate |
| MA5694: |
10 Mp/s |
| MA5698: |
8.688 Mp/s |
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4094. QinQ; VLAN Translation |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
| MAC address filterring: |
Supported |
|
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Not supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p |
|
| Management | |
| Telnet; SSH; SNMP; OMCI |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -40 to +55°C (-40 to +131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
| МА5694: |
AC PSU: 110 to 220 VAC 50-60 Hz;
Battery backup: 12 VDC
|
| MA5698: |
AC PSU: 110 to 220 VAC 50-60 Hz;
Battery backup: 12 VDC
|
| DC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
| МА5694: |
-38.4 to -72 VDC |
| MA5698: |
-38.4 to -72 VDC |
|
| Power consumption | |
|
| MA5694: |
20 W |
| MA5698: |
40 W |
|
| Dimensions (HxWxD) | |
|
| MA5694 |
43.6 (1U) х 482.6 x 245 mm (1.71 (1U) x 19 x 9.65 in)
|
| MA5698 |
43.6 (1U) х 482.6 x 245 mm (1.71 (1U) x 19 x 9.65 in)
|
|
| Maximum Weight | |
|
| MA5694: |
2.5 kg (5.5 lb) |
| MA5698: |
4.22 kg (9.3 lb) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
MA5698 |
| Service Cards: |
| H831EIUC |
8-Port 10/100MbE (RJ45) |
| H831E81A |
8-Port E1 (RJ45) |
|
