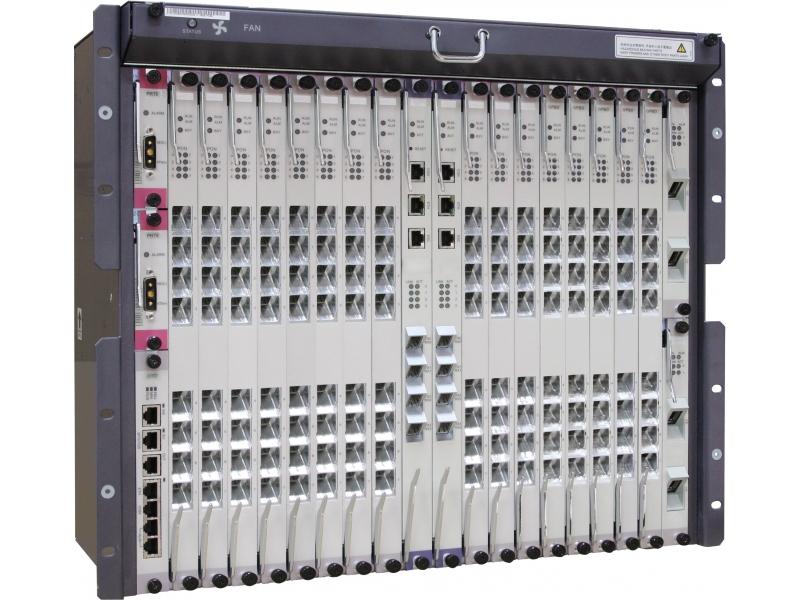

Huawei MA5600T

Download MA5600T Datasheet (eng)

Available to quote:

MA5600T



Request a Quote
SPECIFICATIONS
Interfaces
MA5600T (ETSI):
  • 16 service board slots;
  • 2 control board slots;
  • 2 uplink card slots;
  • 2 DC power supply card slots
MA5600T (IEC):
  • 14 service board slots;
  • 2 control board slots;
  • 2 uplink card slots;
  • 2 DC power supply cards slots

Performance
Switching Capacity
MA5600T(ETSI / IEC): 3.2 Tb/s
Maximum PON ports
Maximum GPON ports
MA5600T (ETSI): 256
MA5600T (IEC): 224
Maximum 10G GPON ports
MA5600T (ETSI): 128
MA5600T (IEC): 112
Layer 2 Features
VLAN

IEEE 802.1Q: 4094; QinQ; VLAN Translation
MAC Address Table
Maximum Capacity:
SCUNSCUF: 32,000 entries
SCUH/SCUV: 131,072 entries
Layer 2 Reliability

STP/RSTP/MSTP;  ERPS (G.8032)
Multicast
IGMP snooping: v2/v3
IGMP groups: 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SSM
Layer 3 features
ARP Table
SCUH/SCUV: 16,384 entries
SCUN: 8,192 entries
Routing Table
IPv4:
SCUN: 5,120 routes
SCUH/SCUV: 12,288 routes
IPv6:
SCUN: 5,120 routes
SCUH/SCUVL: 6,144 routes
IP Routing

Static Routes; RIPv1/2; OSPFv2; IS-IS; VRRP; BGP
MPLS / VPN

Control boards that support MPLS together with the H801SPUB service board: SCUN; SCUH
Supported Features:
MPLS: MPLS-LDP; MPLS RSVP-TE; MPLS OAM; MPLS-TE
L3 VPN: L3 interface-based VRF
L2 VPN: VPLS; PWE3
Security
Control boards Specifications
SCUN:
IPv4 scenario

768 (Basic ACL + Advanced ACL + Link ACL)

128 (User-defined ACL)
IPv4 + IPv6 scenario

256 (Basic ACL + Advanced ACL + Link ACL)

256 IPv6 ACL

120 (User-defined ACL)
SCUH:
IPv4 scenario

768 (Basic ACL + Advanced ACL + Link ACL)

128 (User-defined ACL)
IPv4 + IPv6 scenario

512 (Basic ACL + Advanced ACL + Link ACL)

256 IPv6 ACL

128 (User-defined ACL)
Local AAA: Supported
RADIUS, TACACS+ (for terminal users): Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues:

8
Traffic Limit:

Supported
Traffic Marking:

by 802.1p,  DSCP, VLAN
IPv6

Static Routes; ICMPv6; IPv6 Neighbor Discovery; RIPng; OSPFv3; IPv6 Multicast; Multicast Listener Discovery Snooping (MLDv1/v2)
Management

Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM); Y.1731
Environmental Conditions
Relative Humidity

5 to 85% (non-condensing)
Operating Temperature

-5 to +45°C (23 to 113°F)
Maximum power consumption
MA5600T (ETSI / IEC): up to 1,180 W
Dimensions (HxWxD)
MA5600T (ETSI), including mounting brackets:

447.20 (10U) x 530 x 275.80 mm

(17.61 (10U) x 20.87 x 10.86 in)
MA5600T (IEC), including mounting brackets:

441.70 (10U) x 482.60 x 275.80 mm

(17.39 (10U) x 19 x 10.86 in)
Maximum weight
MA5600T (ETSI): 33 kg (72.7 lb)
MA5600T (IEC): 30.53 kg (67.3 lb)
MA5603T: 20 kg (44.1 lb)
MA5608T: 10 kg (22.05 lb)
Compatible Boards
Name Description
Control boards
SCUN Control board for MA5600T/MA5603T (4-Port 1GbE (SFP))
SCUH Control board for MA5600T/MA5603T (4-Port 1/10GbE (SFP+))
SCUV Control board for MA5600T/MA5603T (4-Port 1/10GbE (SFP+))
Uplink cards
GICD Uplink card for МА5600Т/МА5603Т (4-Port 1GbE (SFP))
GICE Uplink card for МА5600Т/МА5603Т (4-Port 1GbE (RJ45))
GICF Uplink card for МА5600Т/МА5603Т (2-Port 1GbE (SFP))
GICG Uplink card for МА5600Т/МА5603Т (2-Port 1GbE (RJ45))
GICK Uplink card for МА5600Т/МА5603Т (2-Port 1GbE (SFP) with 1588v2 support)
GSCA Uplink card for МА5600Т/МА5603Т (4-Port 1GbE (SFP) with SyncE support)
X2CS Uplink card for МА5600Т/МА5603Т (2-Port 10GbE (SFP+))
Universal interface cards
BIUA BITS card for MA5600T/MA5603T (2-Port BITS IN and 1-Port  BITS OUT. Supports 2 MHz and E1 signals)
CITD Combo interface transfer card for MA5600T/MA5603T (2-Port input of either 2 Mbps or 2 MHz BITS clock signals. 2-Port input of 1PPS+TOD signals. 1-Port output of either 2 Mbps or 2 MHz clock signals. 1-Port output of 1 PPS time signals)
Power supply cards
PRTE Power supply card for МА5600Т/МА5603Т (1 x -48 VDC input )
GPON boards
GPBD GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
GPFD GPON board (16-Port GPON. Splitting ratio: 1:64 and 1:128)
GPBH GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
GPMD GPON board (8-Port GPON. Splitting ratio: 1:64 and 1:128)
10G PON boards
XGBC 10G PON board (4-Port 10G PON)
XGBD 10G PON board (8-Port 10G PON)
SPU boards
SPUA Uplink board for Open Access scenario (8-Port 1GbE (SFP), 2-Port 10GbE (SFP+))
SPUB MPLS board
SPUC Uplink board for Open Access scenario (20-Port 1GbE (SFP) CFSP modules, 4-Port 10GbE (SFP+))
SPUF Uplink board for Open Access scenario. Supports L2 and L3 transfer modes. (8-Port 1/10GbE (SFP/SFP+)).
Ethernet service boards
ETHB Ethernet Service Card. (8-Port 1GbE (SFP))
TDM service boards
CSPA CESoP service board. (Structure-agnostic TDM over packet (SAToP)). (64-Channel E1)
TOPB TDM Traffic over PSN service board. Supports the following features: Native TDM, CESoP, STM-1 (2-Port STM-1)
TOPA

TDM Traffic over PSN service board.

Supports the following features:

  • Native TDM (with NH1A/O2CE extension card);
  • CESoP (with EH1A/CSSA extension card);
  • TDM (with 16-Channel E1 (with NH1A/EH1A extension card);
  • TDM (with 2-Channel STM-1 (with O2CE/CSSA extension card);
P2P service boards
OPFA P2P services board. (16-Port 100MbE (SFP))
OPGD P2P services board. (24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP)).
OPGE P2P services board. (24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP).  1588v2 (PTP) supported)
ATM service boards
AIUG ATM services board. (4-Port STM-1)
ADSL2+ service boards
ADPD ADSL over POTS service board. (64-Port ADSL2+)
ADPM ADSL over POTS service board. (64-Port  ADSL2+. MELT supported)
ADQD ADSL over ISDN service board. (64-Port ADSL2+)
ADKM ADSL over ISDN service board. (64-Port ADSL2+. ADSL Bonding support)
ADPE ADSL over POTS service board. (64-Port ADSL2+. Internal 600ohms splitter)
VDSL service boards
VDRD VDSL2 over POTS service board. (24-Port VDSL2)
VDMF VDSL2 over POTS service board. (48-Port VDSL2. VDSL2 PTM Bonding supported)
VDNF VDSL2 over ISDN service board. (48-Port VDSL2)
VDJM VDSL2 over ISDN service board. (48-Port VDSL2. G.INP supported)
VDPD VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding supported)
VDPE VDSL2 over POTS service board. (64-Port VDSL2)
VDPM VDSL2 over POTS service board. (64-Port VDSL2. MELT supported)
VDQM VDSL2 over ISDN service board. (64-Port VDSL2)
VCMM VDSL2 over POTS service board. (48-Port VDSL2. MELT supported. VDSL2 PTM Bonding supported)
VCPE VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding support. Internal splitter)
VCPD VDSL2 over POTS service board. (64-Port VDSL2. VDSL2 PTM Bonding supported)
VCPM VDSL2 over POTS service board. (64-Port VDSL2. MELT supported. VDSL2 PTM Bonding supported)
Vectoring boards
VPEA VDSL Vectoring feature board. Compatible with the following VDSL2 Cards: VCMM, CCPE, VCPD, VCPE, VCPM
VPGA

VDSL Vectoring feature support. Compatible with the following VDSL2 Cards: VCMM, CCPE. VCPD, VCPE, VCPM
SHDSL service board
SHLM SHDSL.bis service board. (16-Port SHDSL)
SHGM SHDSL.bis service board. (32-Port SHDSL)
Combo boards
CAME ADSL over POTS service board. (48-Port ADSL2+ and POTS with built-in splitter)
CVME VDSL over POTS service board. (48-Port VDSL2 and POTS with built-in splitter)
CCPE VDSL over POTS service board. (64-Port VDSL2 and POTS with built-in splitter)
Voice service boards
ASPB Voice Services board. (64-Port VoIP POTS)
DSRE Voice Services board. (32-Channel ISDN)
EDTB Voice Services board. (16-Port SHDSL and 16-Port E1)
ADSL splitter boards
SPPLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service board: ADPD
SPPLB Splitter board. BT complex impedance. Compatible with the folowing service board: ADPD
SPPLC Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service board: ADPD
SPPH Splitter board. 2B1Q or 4B3T. Compatible with the folowing service board: ADQD
SPPF1 Splitter board. 600 Ohm. Compatible with the folowing service board: ADPD
VDSL splitter boards
VSNF Splitter board. 600ohms. Compatible with the folowing service boards: VDMF, VDRD
VSNLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDMF, VDRD
VSPHA Splitter board. 2B1Q or 4B3T. Compatible with the folowing service boards: VDNF, VDJM
VSPLA Splitter board. Complex impedance (ETSI TS 101 952 01 01 option A). Compatible with the folowing service boards: VDPM, VDQM, VDPD
VSPLC Splitter board. Complex impedance (ETSI TS 101 952 01 01 option B). Compatible with the folowing service boards: VDPM, VDQM, VDPD
SHDSL extension boards
SHET 64-Channel SHDSL extension board. Compatible with the folowing service boards: SHLM, SHGM
