| Interfaces | |
|

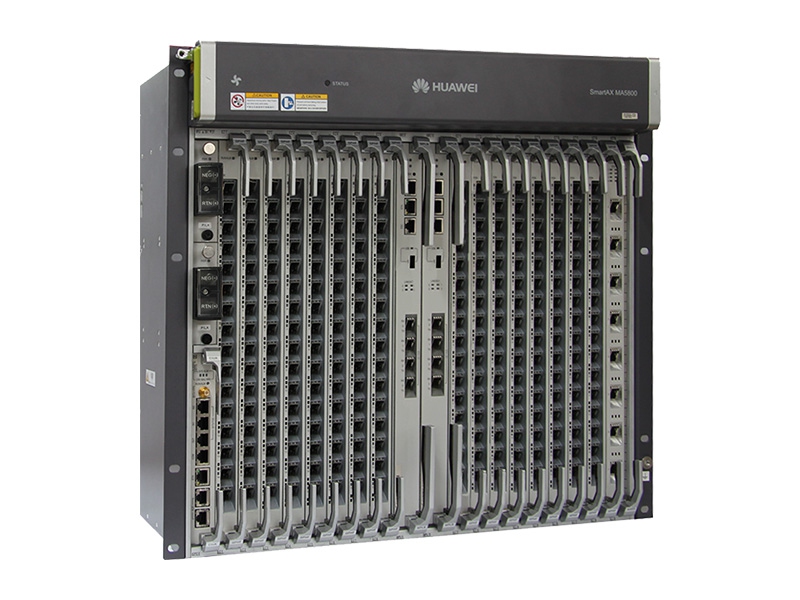

| MA5800-X17 (ETSI): |
- 17 Service boards slots;
- 2 Control boards slots;
- 2 DC Power supply cards slots
|

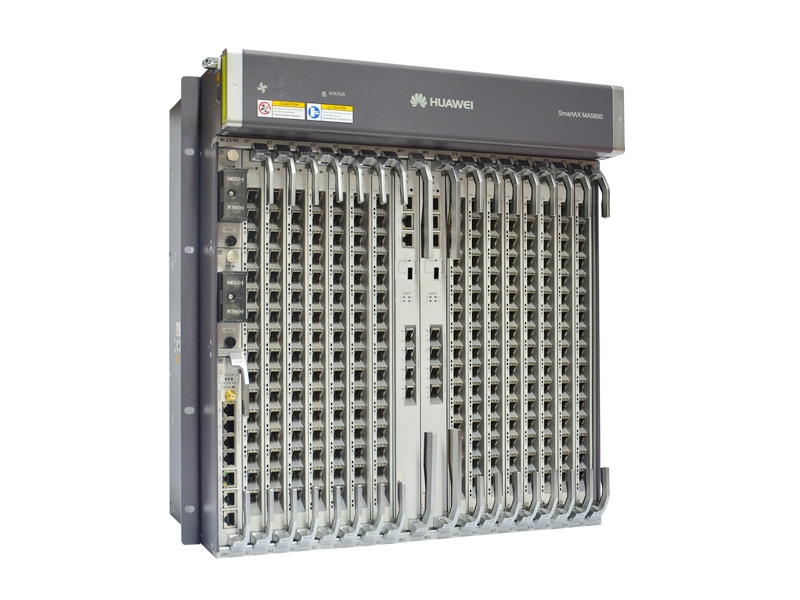

| MA5800-X15 (IEC): |
- 16 Service boards slots;
- 2 Control boards slots;
- 2 DC Power supply cards slots
|

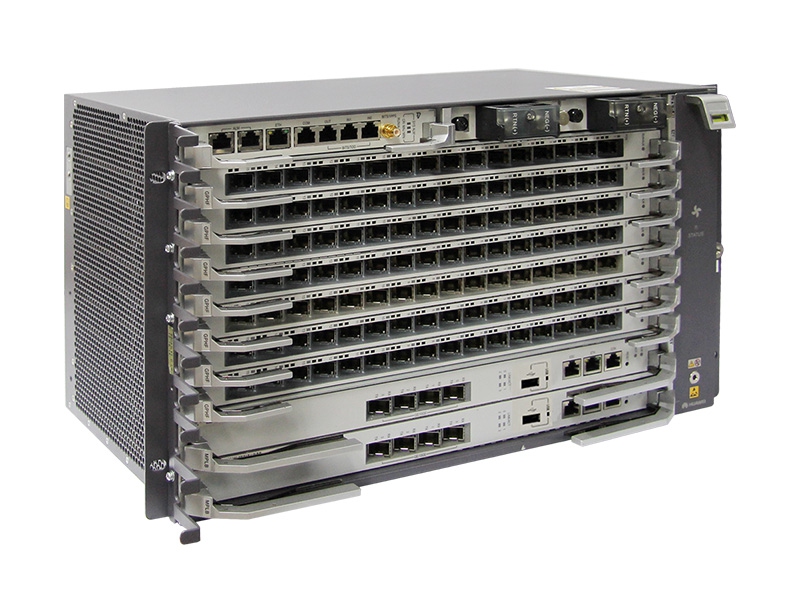

| MA5800-X7: |
- 7 Service boards slots;
- 2 Control boards slots;
- 2 DC Power supply cards slots
|

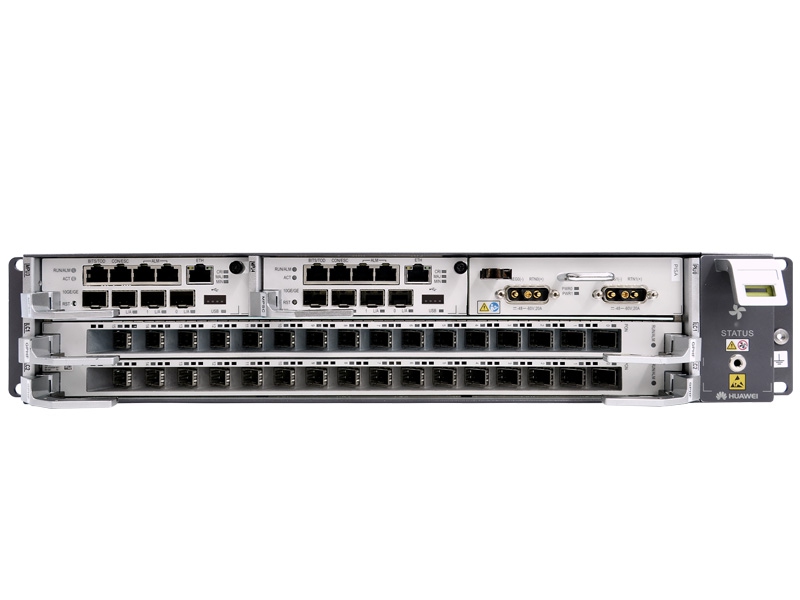

| MA5800-X2: |
- 2 Service boards slots;
- 2 Control boards slots;
- 1 Power supply card slot (AC / DC inputs)
|
|
| Performance | |
| Switching Bandwidth |
| MA5800-X17: |
7 Tb/s |
| MA5800-X15: |
7 Tb/s |
| MA5800-X7: |
7 Tb/s |
| MA5800-X2 |
480 Gb/s |
|
| Maximum PON ports | |
| Maximum GPON ports |
| MA5800-X17: |
272 |
| MA5800-X15: |
240 |
| MA5800-X7: |
117 |
| MA5800-X2 |
32 |
|
| Maximum 10G PON ports |
| MA5800-X17: |
136 |
| MA5800-X15: |
120 |
| MA5800-X7: |
56 |
| MA5800-X2 |
16 |
|
| Layer 2 Features | |
| VLAN | IEEE 802.1Q: 4094; QinQ; VLAN Translation |
| MAC Address Table |
| Maximum Capacity: |
262,143 |
|
| Layer 2 Reliability | STP/RSTP/MSTP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v2/v3 |
| IGMP groups: |
8,192 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SSM |
|
| Layer 3 features | |
| ARP Table | 65,536 entries
|
| Routing Table |
| IPv4: |
65,536 routes |
| IPv6: |
16,384 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2; IS-IS; BGP |
| MPLS / VPN | |
| Supported. MPLS LDP, VPLS, PWE3 |
| Security | |
|
| IPv4 ACL: |
65,535 Ingress + Egress |
| IPv6 ACL: |
65,535 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8
|
| Traffic Limit: |
Supported
|
| Traffic Marking: |
by 802.1p, DSCP
|
|
| IPv6 | |
| Static Routes; ICMPv6; IPv6 Neighbor Discovery; RIPng; OSPFv3; IS-IS IPv6 |
| Management | |
| Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); 802.1ag (CFM); Y.1731 |
| Environmental Conditions | |
| Relative Humidity | 5 to 85% (non-condensing) |
| Operating Temperature | -40 to +65°C (-40 to 149°F) |
| Maximum power consumption | |
|
| MA5800-X17: |
up to 1,256 W |
| MA5800-X15: |
up to 1,156 W |
| MA5800-X7: |
up to 662 W |
| MA5800-X2: |
up to 299.5 W |
|
| Dimensions (HxWxD) | |
|
| MA5800-X17 (including mounting brackets): |
486 (11U) x 535 x 268.7 mm
(19.1 (11U) x 21.06 x 10.58 in)
|
| MA5800-X15 (including mounting brackets): |
486 (11U) x 482.6 x 268.7 mm
(19.1 (11U) x 19.0 x 10.58 in)
|
| MA5800-X7 (including mounting brackets): |
263.9 (6U) x 482.6 x 268.7 mm
(10.4 (6U) x 19.0 x 10.58 in)
|
| MA5800-X2 (including mounting brackets): |
88.1 (2U) x 482.6 x 268.7 mm
(3.47 (2U) x 19.0 x 10.58 in)
|
|
| Maximum weight | |
|
| MA5800-X17: |
45 kg (99.2 lb) |
| MA5800-X15: |
33 kg (75.7 lb) |
| MA5800-X7: |
26 kg (57.3 lb) |
| MA5800-X2: |
9.4 kg (20.7 lb) |
|
| Compatible Boards | |
|
| Model Number |
Description |
| Control Boards |
| MPLA |
Control Board for MA5800-X17/X15/X7 (4-Port 1/10GbE (SFP/SFP+)) |
| MPLB |
Control Board for MA5800-X17/X15/X7 (4-Port 1/10GbE (SFP/SFP+)) |
| MPSC |
Control Board for MA5800-X2 (4-Port 1/10GbE (SFP/SFP+)) |
|
|
| Uplink Board |
| NXED |
Uplink Board for MA5800-X17/X15/X7 (8-Port 1/10GbE (SFP/SFP+)) |
|
|
| Universal interface Boards |
| CIUA |
BITS Board for MA5800-X17/X15/X7 (2-Port BITS clock input and 1-Port BITS clock output (2 MHz / 2 Mbps); 2-Port 1PPS + TOD) |
|
|
| Power Supply Cards |
| PILA |
Power supply card for MA5800-X17/X15/X7 (1 x -48 VDC input ) |
| PISA |
Power supply card for MA5800-X2 (2 x -48 VDC inputs ) |
| PISB |
Power supply card for MA5800-X2 (1 x 220 VAC input and 1 x -48 VDC battery backup port ) |
|
|
| GPON Boards |
| GPHF |
GPON Board (16-Port GPON. Splitting ratio: 1:64 or 1:128) |
| GPSF |
GPON Board (16-Port GPON. Splitting ratio: 1:64 or 1:128) |
| 10G PON Boards |
| XGHD |
10G PON Board (8-Port 10G PON. Splitting ratio: 1:256) |
| XSED |
10G PON Board (8-Port 10G PON. Splitting ratio: 1:256) |
| TWED |
10G PON Board (8-Port 10G PON. Splitting ratio: 1:256) |
| CGCD |
10G PON Board (8-Port GPON / 10G PON. Splitting ratio: 1:64 or 1:128 (GPON), 1:256 (10G GPON)) |
|
|
| Ethernet Service Boards |
| OXHD |
Ethernet service Board (8-Port 1/10GbE (SFP/SFP+) |
|
|
| TDM Service Boards |
| EDSH |
TDM E1 Board (2 x 16-Channel E1 interfaces (NE96 connector))
|
|
|
| P2P Service Boards |
| OGHK |
P2P services Board (24-Port 100/1000MbE (SFP) or 48-Port 100/1000MbE (CFSP)) |
|
|
| Video Service Boards |
| CVEC |
Video service processing board. Operates together with the downstream media converter (CMC), processes DVB services. (256 input transport streams (TS)) |
|
