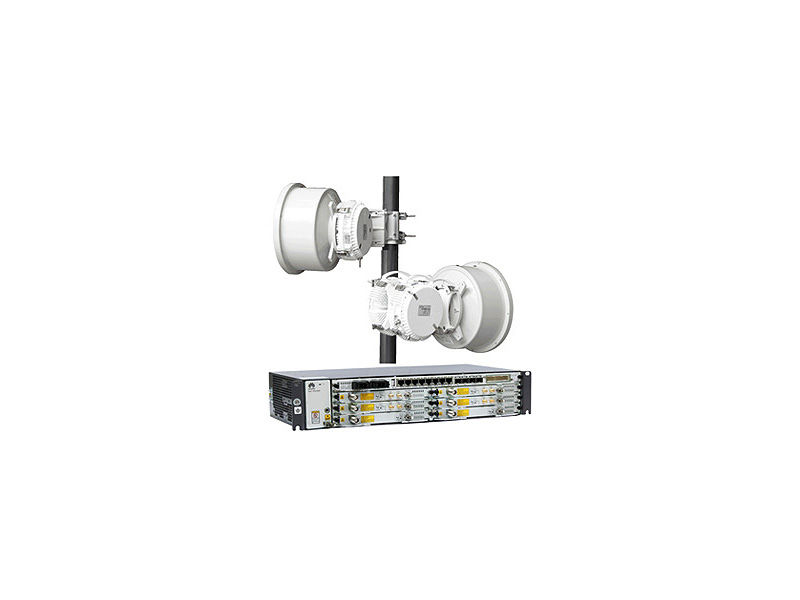

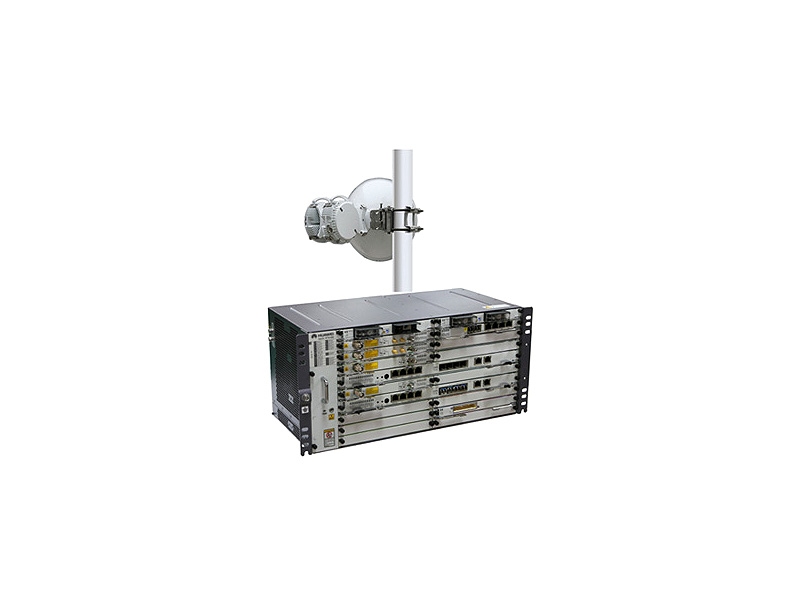

Huawei RTN 900 series

Download RTN900 series Datasheet (eng)Download RTN950 Datasheet (eng)Download RTN950A Datasheet (eng)

Available to quote:

RTN905 1E; RTN950 2E

RTN910A; RTN950

RTN950A

Request a Quote
SPECIFICATIONS
Interfaces
RTN 905 1E:
  • 1-Port ODU (IF);
  • 2-Port Cross polarization interference cancellation (XPIC);
  • 1-Port USB;
  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo (SFP or SFP-T);
  • 2-Port STM-1;
  • 1-Port E1 (16 channels);
  • 1 slot for MN1 card
RTN 905 2E:
  • 2-Port ODU (IF);
  • 2 ODU power switches;
  • 1-Port USB;
  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo (SFP or SFP-T);
  • 2-Port STM-1;
  • 1-Port E1 (16 channels);
  • 1 slot for MN1 card
RTN 910A:
  • 2 Service cards slots;
  • 1 Control cards slots.
RTN 950:
  • 6 Service cards slots;
  • 2 Control cards slots;
  • 2 Power Supply Cards slots
RTN 950A:
  • 6 Service cards slots;
  • 1 Control cards slots;
Performance
Switching Bandwidth
RTN905 1E: 8 Gb/s

RTN905 2E:

 8 Gb/s

RTN910A:

 10 Gb/s
RTN950: 10 Gb/s
RTN950A: 10 Gb/s
Environmental Conditions
Relative Humidity
RTN905 1E: 5 to 95%

RTN905 2E:

 5 to 95%

RTN910A:

 5 to 95%
RTN950: 5 to 95%
RTN950A: 5 to 95%
ODU: 5 to 95%
Operating Temperature
RTN905 1E:

-5 to +60°C (23 to 140°F)

RTN905 2E:

-5 to +60°C (23 to 140°F)

RTN910A:

-5 to +60°C (23 to 140°F)
RTN950:

-5 to +60°C (23 to 140°F)
RTN950A:

-5 to +60°C (23 to 140°F)
ODU:

-35 to +55°C (-31 to +131°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Not supported
DC PSU:
Type:
RTN905 1E; RTN905 2E; RTN910A; RTN950A: Internal
RTN950 Removable
Quantity:
RTN905 1E; RTN905 2E; RTN910A; RTN950; RTN950A 2
Rated voltage range: -38.4 to -57.6 VDC
Power consumption
RTN905 1E: 55 W

RTN905 2E:

 92 W

RTN910A:

 89 W
RTN950: 125 W
RTN950A: 129 W
Dimensions (HxWxD)
RTN905 1E:

44 x 442 х 220 mm

(1.73 x 17.4 x 8.7 in)

RTN905 2E:

44 x 442 х 220 mm

(1.73 x 17.4 x 8.7 in)

RTN910A:

44 x 442 х 220 mm

(1.73 x 17.4 x 8.7 in)
RTN950:

88 x 442 х 220 mm

(3.46 x 17.4 x 8.7 in)
RTN950A:

88 x 442 х 220 mm

(3.46 x 17.4 x 8.7 in)
ODU:

280 x 280 х 92 mm

(11.02 x 11.02 x 3.62 in)
Maximum Weight
RTN905 1E IDU: 2.8 kg (6.17 lb)
RTN905 2E IDU: 3 kg (6.61 lb)
RTN910A IDU: 3.55 kg (7.58 lb)
RTN950 IDU: 6.2 kg (13.67 lb)
RTN950A IDU: 6.2 kg (13.67 lb)
ODU: 4.6 kg (10.14 lb)
Compatible expansion cards
Model Number Description
RTN905 1E/2E; RTN950A:
MN1

Supports CES, ML-PPP features
RTN910A:
CSHR Hybrid system control, switching, and timing card. Switching for  VC-12 / VC-3 / VC-4
RTN950
CST Integrated TDM system control, switching, and timing card. Switching for  VC-12 / VC-3 / VC-4
CSH Integrated Hybrid/Packet system control, switching, and timing card. Switching for  VC-12 / VC-3 / VC-4
CSHU Integrated Hybrid/Packet system control, switching, and timing card. Switching for  VC-12 / VC-3 / VC-4
CSHUA Integrated Hybrid/Packet/Routing system control, switching, and timing card. Supports L3VPN functionality. Switching for  VC-12 / VC-3 / VC-4
RTN950A
CSHO Hybrid system control, switching, and timing card. Switching for VC-12 / VC-3 / VC-4
RTN910A; RTN950; RTN950A:
ISV3 Versatile IF card. 1 x IF interface. Supports the following  IF modes:IS3 uses the highest-order modulation mode of 2048QAM; IS2 uses the highest-order modulation mode of 256QAM.
ISM6

Two-channel versatile IF card. 2 x IF interfaces. Supports the following  IF modes: IS6 uses the highest-order modulation mode of 4096QAM; IS3 uses the highest-order modulation mode of 2048QAM; IS2 uses the highest-order modulation mode of 256QAM
CQ1 4-Interface channelized STM-1 card
ML1

16-Interface E1 (Smart) tributary card. Supports CES E1, ATM/IMA E1, ML-PPP E1, Fractional E1
MD1 32-Interface E1 (Smart) tributary card. Supports CES E1, ATM/IMA E1, ML-PPP E1, Fractional E1
AUX

Auxiliary interface card. Provides 1-interface orderwire, 1-Interface asynchronous data, 1-Interface synchronous data, and 4 x input and 2 x output external alarm interfaces.
RTN950; RTN950A:
ISU2 Universal IF card. Provides 1 interface IF. Supports modulation schemes from QPSK to 256QAM.
ISX2

Universal XPIC IF card. Provides 1 interface IF. Supports modulation schemes from QPSK to 256QAM.
IFU2 Universal IF card. Provides 1 interface IF. Supports modulation schemes from QPSK to 256QAM
SL1DA Interface card. Provides 2-Port STM-1
EG4

Interface card. Provides 2-Port combo 1GbEX (RJ45)  / 1GbE (SFP), 2-Port 100/1GbEX (RJ45)
EG4P

Interface card. Provides 2-Port combo 1GbEX (RJ45)  / 1GbE (SFP), 2-Port 100/1GbEX (RJ45)  with the power supply function (up to 55 W)
EFP8

Interface card. Provides 8-Port 100MbEX (RJ45) with EoPDH support.
EMS6

Interface card. Provides 4-Port 100MbEX (RJ45) and 2-Port 1GbE (SFP) with EoSDH support
SP3S

16-Interface E1 tributary card
SP3D

32-Interface E1 tributary card
TCU6

6-interface E1 connector conversion card. Provides 1 x DB44 connector and 6 x RJ45 connectors.
RTN950:
IF1

SDH IF card. Provides 1-Interface IF. Supports modulation schemes from QPSK to 128QAM
IFX2

Universal IF card that supports the XPIC function in Integrated IP radio mode.
SL1D

Optical interface card. 2-Interface STM-1.
SL1DA

Optical interface card. 2-Interface STM-1. Supports the K byte pass-through function.
EM6T

Interface card. 4-Port 100MbEX (RJ45) and  2-Port 1GbE (RJ45)
EM6TA

Interface card. 4-Port 100MbEX (RJ45) and  2-Port 1GbE (RJ45). Supports IEEE 1588v2
EM6F

Interface card. 4-Port 100MbEX (RJ45) and  2-Port 100/1000MbE (SFP)
EM6FA

Interface card. 4-Port 100MbEX (RJ45) and  2-Port 100/1000MbE (SFP). Supports IEEE 1588v2
