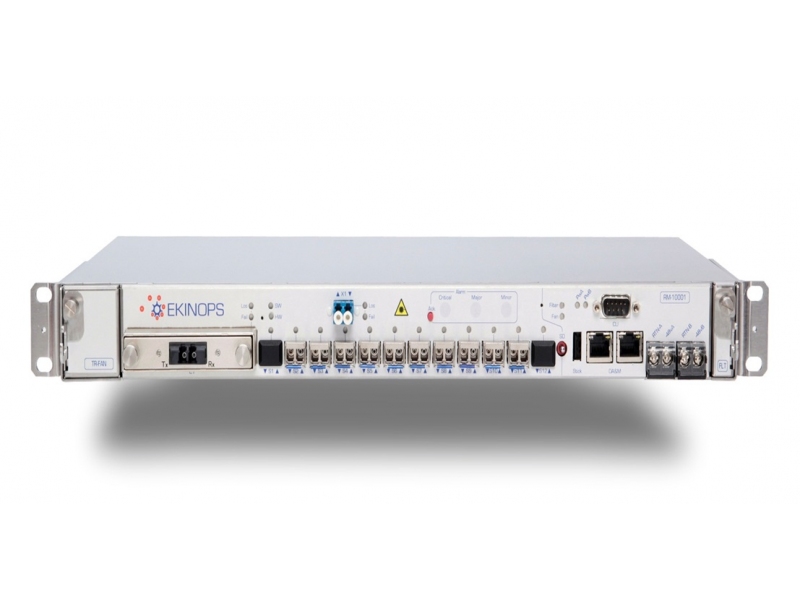

Ekinops DWDM RM 10001/10010 solution

Download RM10001-10010 Datasheet (eng)

Available to quote:

RM 10001 Transponder: Supported modes:  100G Transponder. Supports 1 x 100 Gbit/s client

RM 10010 Muxponder: Supported modes:  10x10G. Supports 10 x 10 Gbit/s clients.

Request a Quote
SPECIFICATIONS
Interfaces
RM 10001 Transponder:
  • 12-Port 10GbE (SFP+);
  • 1-Port 100G BASE (CFP)
RM 10010 Muxponder:
  • 12-Port 10GbE (SFP+);
  • 1-Port 100G BASE (CFP)
100G Clients Aggregation Modes
10 x 10GbE
8 x OTU2
12 x 8G FC
8 x OC-192/STM-64
Management

SNMP, RS232, SSH, HTTP, Ekinops MPSN: Multi-Protocol Service and Network Manager
Environmental Conditions
Relative Humidity

10 to 90%
Operating Temperature

-5 to +55°C (23 to 122°F)
Power consumption

up to 200 W
Dimensions (HxWxD)

44 (1U) x 482.6 х 300 mm

(1.73 (1U) x 19 x 11.81 in)
