| Interfaces | |
|

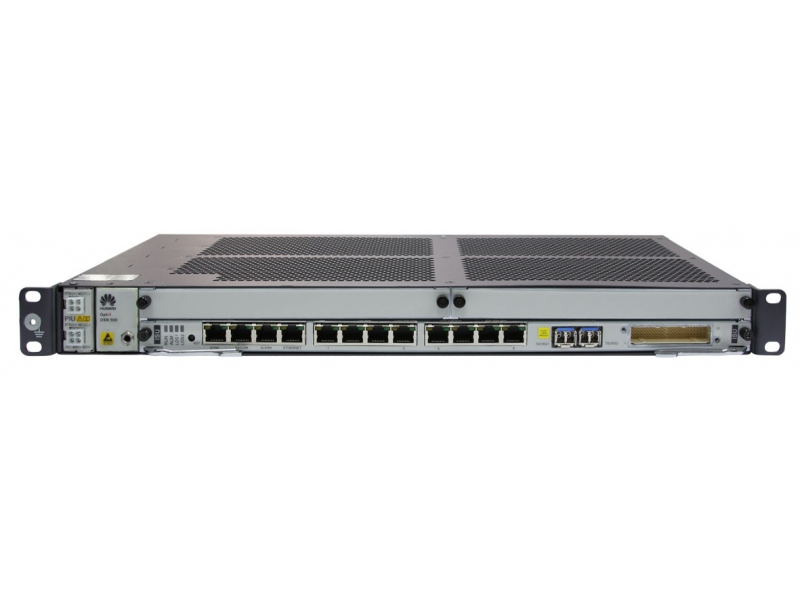

| OSN 500 (DC): |
- 2 Expansion slots;
- 1 Control Cards slot;
- 1 Power Supply slot (2 inputs).
|
|
| Performance | |
|
| Packet Services: |
7.2 Gb/s |
| TDM Services: |
20 Gb/s |
|
| Supported services | |
|
|
Ethernet interface:
|
FE/GE
|
|
SDH interface:
|
STM-1/4
|
|
PDH interface:
|
E1/E3; T1/T3
|
|
CES interface:
|
ATM/IMA; PWE3; TDM PWE3
|
|
WDM interface:
|
- 40 DWDM wavelengths according to ITU-T G.694.1;
- 8 CWDM wavelengths according to ITU-T G.694.2
|
|
| Services protection | |
|
| LSP / PW Linear protection ; MPLS-TP Ring protection |
| 1+1 and 1:1 Linear MSP |
| ERPS (G.8032); STP/RSTP/MSTP; LAG; LPT; IMA protection |
|
| Environmental Conditions | |
| Relative Humidity | 10 to 90% |
| Operating Temperature | -5 to +55°C (23 to 131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Supported by using UPS-module |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| Maximum power consumption | |
| up to 100 W |
| Dimensions (HxWxD) | |
|
|
44 (1U) x 442 х 220 mm
(1.73 (1U) x 17.4 x 8.66 in)
|
|
| Maximum Weight | |
| 2 kg (4.4 lb) (Empty chassis) |
| Compatible control cards | |
|
| Model Number |
Description |
| TNH1CSHD: |
- 2-Port 100/1000MbE (SFP);
- 4-Port 100MbE (RJ45);
- 16-Port E1
|
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| TNM1MD1: |
32-Channel E1 |
| TNM1EM6T: |
2-Port 100/1GbE (RJ45); 4-Port 100MbE (RJ45) |
| TNM1EM6F: |
2-Port 1GbE (SFP); 4-Port 100MbE (RJ45) |
| TNM1EF8F: |
8-Port 100BASE-FX (SFP) |
| TNM1CQ1: |
4-Port STM-1 (SFP) |
|
|
| Power Supply Cards: |
| UPM: |
UPS Card |
| TNC1PIU: |
DC Power Supply Card |
|
|
| Auxiliary Cards: |
| TNC1FAN: |
Fan Card |
|
