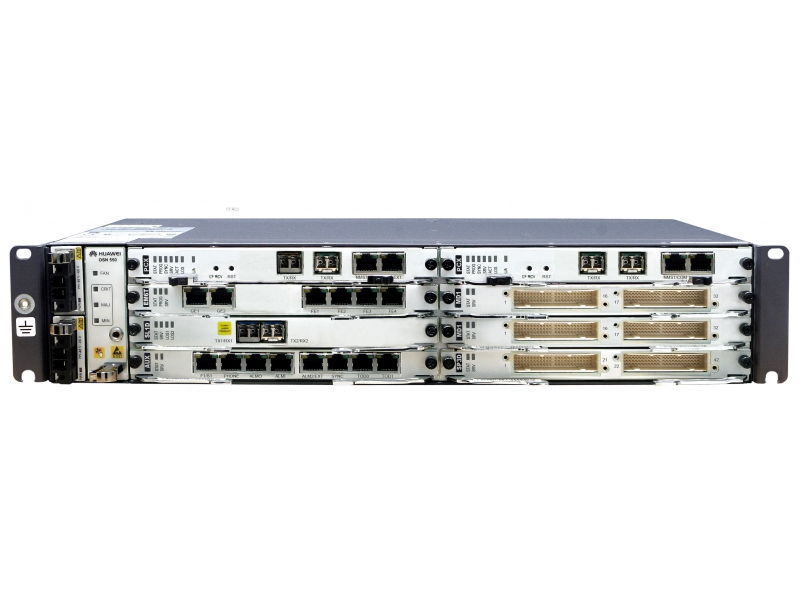

| Interfaces | |
|
| OSN 550 (DC): |
- 6 Service Cards slots;
- 2 Control Cards slots;
- 2 Power Supply slots
|
| OSN 550 (AC): |
- 4 Expansion slots;
- 2 Control Cards slots;
- 2 Power Supply slots
|
|
| Performance | |
|
| Packet Services: |
60 Gb/s |
| TDM Services: |
20 Gb/s |
|
| Supported services | |
|
|
Ethernet interface:
|
FE/GE/10GE
|
|
SDH interface:
|
STM-1/4/16
|
|
PDH interface:
|
E1/E3; T1/T3
|
|
CES interface:
|
ATM/IMA E1; STM-1
|
|
WDM interface:
|
- 40 DWDM wavelengths according to ITU-T G.694.1;
- 8 CWDM wavelengths according to ITU-T G.694.2
|
|
| Services protection | |
|
| LSP/PW; MPLS-TP Ring protection |
| 2 x fiber MSP-SP Ring; 1+1, 1:1 Linear MSP; SNCP; Fiber shared virtual path protection; DNI (ITU-T G.842) |
| ERPS (G.8032); RSTP; LAG; LPT; IMA |
|
| Environmental Conditions | |
| Relative Humidity | 10 to 90% |
| Operating Temperature | -5 to +55°C (23 to 131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| Maximum power consumption | |
| |
| Dimensions (HxWxD) | |
|
|
88 (2U) x 442 х 220 mm
(3.46 (2U) x 17.4 x 8.66 in)
|
|
| Maximum Weight | |
| 3.5 kg (7.72 lb) (Empty chassis) |
| Compatible control cards | |
|
| Model Number |
Description |
| Hybrid Type |
| TNM1PCXLX |
1-Port 10GbE (SFP+); 1-Port STM-1 (SFP) |
| TNM1PCXX |
1-Port 10GbE (SFP+) |
| TNM1PCXLG |
1-Port 1GbE (SFP); 1-Port STM-1 (SFP) |
| TNM1PCXGA |
1-Port 1GbE (SFP) |
| TNM1PCXGB |
1-Port 1GbE (SFP) |
| TDM type |
| TNM1CXL1 |
1-Port STM-1 (SFP) |
| TNM1CXL4 |
1-Port STM-4 (SFP) |
| TNM1CXL16 |
1-Port STM-16 (SFP) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
|
|
| Packet Services |
| TNM1MD1 |
32-Channel E1 |
| TNM1EM6T |
2-Port 100/1GbE (RJ45); 4-Port 100MbE (RJ45) |
| TNM1EM6F |
2-Port 1GbE (SFP); 4-Port 100MbE (RJ45) |
| TNM1EG4C |
4-Port combo 1GbE (RJ45) / 1GbE (SFP) |
| TNM1EG8 |
4-Port 1GbE (SFP) |
| TNM1EF8F |
8-Port 100BASE-FX (SFP) |
| TNM1EX1 |
1-Port 10GbE (SFP+) |
| TNM1CQ1 |
4-Port STM-1 (SFP) |
| SDH Services |
| TNH2SL1D |
2-Port STM-1 (SFP) |
| TNH2SL1Q |
4-Port STM-1 (SFP) |
| TNH2SL4D |
2-Port STM-1 (SFP) |
| PDH Services |
| TNH2SP3D |
42-Channel E1/T1 |
| TNH2PL3T |
3-Channel E3/T3 |
| TNM1PD1 |
PDH Card. Operating together with the DMS Card |
| TNM1DMS |
32-Channel E1/T1 |
| EoS Services |
| TNH2EFS8 |
8-Port 100MbEX (RJ45) |
| TNH2EGT1 |
1-Port 1GbE (SFP) |
| TNM1EGS4 |
4-Port 1GbE (SFP) |
| WDM Services |
| TNM1DMD2 |
2-Port add/drop additional wavelength (SFP) |
|
|
| Power Supply Cards: |
| UPM |
UPS Card |
| TND1PIU |
DC Power Supply Card |
| TNFAPIU |
AC Power Supply Card |
|
|
| Auxiliary Cards: |
| TNM1AUX |
Auxiliary Card |
| TNM1FAN |
Fan Card |
|
