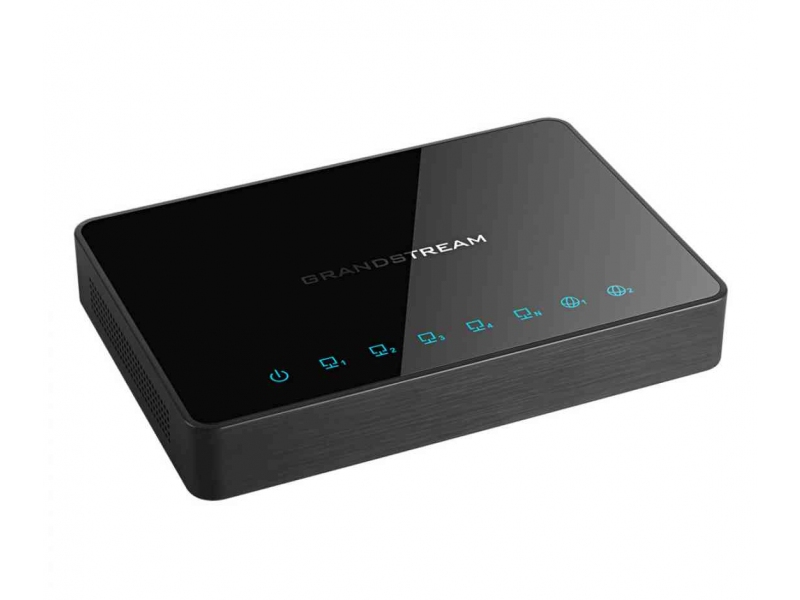

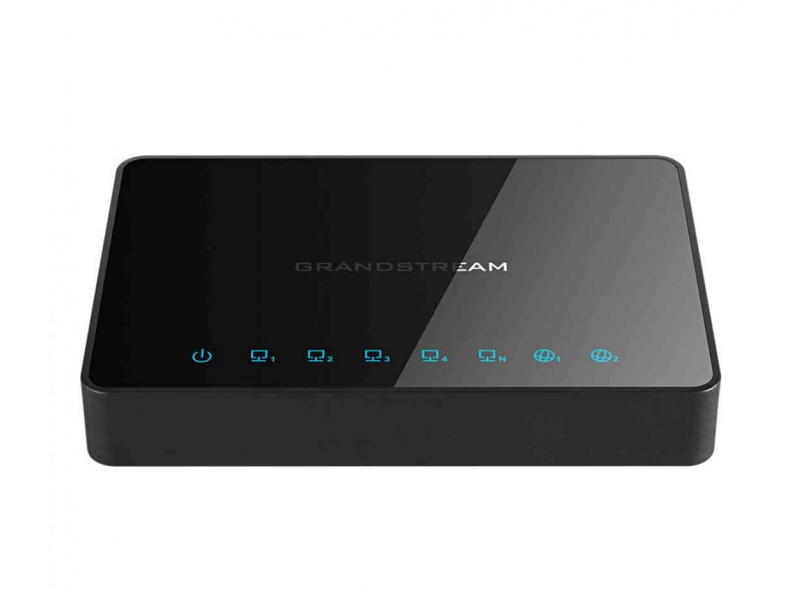

Grandstream GWN7000

Download GWN7000 Datasheet (eng)

Available to quote:

GWN7000


Request a Quote
SPECIFICATIONS

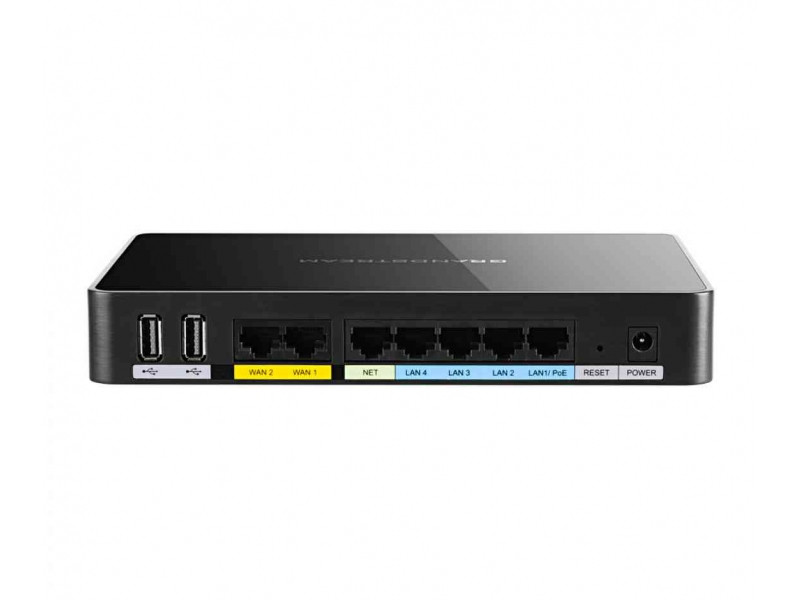

Interfaces
GWN7000 :
  • 2-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port 10/100/1000MbE (RJ45) WAN / LAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2-Port USB 3.0
WLAN

Not supported
AP Management Feature
Maximum AP Supported: 300
AP Supported:

GWN76xx series
Layer 2 Features
VLAN

IEEE 802.1Q: 16
Layer 2 Reliability

Not supported
Multicast

Not supported
Layer 3 Features
IP Routing

Static Routes
MPLS / VPN

L2TP, IPSec VPN
Security
Local AAA: Supported
RADIUS, TACACS+: Not supported
DHCP Server Supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Not supported
IP Source Guard: Not supported
Broadcast, multicast, unknown unicast suppression: Not supported
Management

Web-management, Telnet
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: PoE (802.3at)
Maximum power consumption

16 W
Acoustic noise

0 dB
Dimensions (HxWxD)

37 x 200 x 136 mm

(1.45 x 7.87 x 5.35 in)
Maximum Weight

0.57 kg (1.25 Ib)
Compatible Expansion Cards

Not supported
