Huawei AR120 series

Download AR120 series Datasheet (eng)

Available to quote:

AR129CVW; AR129CGVW-L;

AR129CV; AR129CGVW-L

EOS for AR121W, AR121GW-L; AR129; AR129W; AR129GW-L:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000011215


Request a Quote
SPECIFICATIONS
Interfaces
AR129CGVW-L:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2-Port FXS (RJ11);
  • 2 LTE antennas (SMA RF);
  • 4 Wi-Fi antennas (SMA);
  • 2 SIM card slots;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR129GW-L:
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 LTE antenna (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 2 SIM card slots;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR121GW-L:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

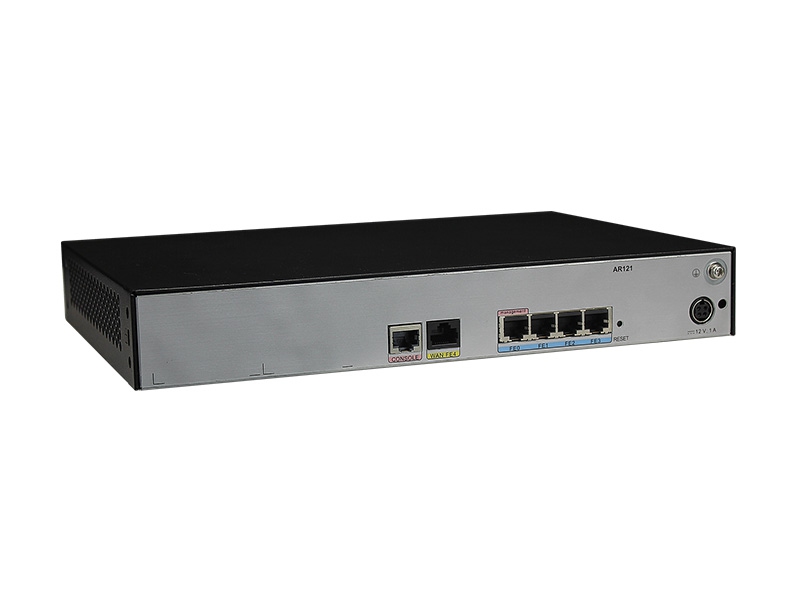

AR121:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR121W:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR129:
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR129W:
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
Performance
Switching Capacity

50 Mbps
Forwarding Rate

300 Kpps
WLAN
3G / LTE:
AR129CGVW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz);
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8;
  • LTE FDD: Band 1/2/3/4/5/7/8/20
AR129GW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz);
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8;
  • LTE FDD: Band 1/2/3/4/5/7/8/20
AR121GW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz);
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8;
  • LTE FDD: Band 1/2/3/4/5/7/8/20
Wi-Fi:
AR129CGVW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO; 802.11 ac, 5GHz, 2 x 2 MIMO;
  • Rate supported: 867 Mbps;
  • Antenna gain: 2.4 GHz: 1.9 dBi;  5.0 GHz: 3.4 dBi
AR129GW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR121GW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR121W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR129W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AP Management Feature
Maximum AP Supported: 8
AP Supported:

AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
Layer 2 Features
MAC Address Table
Maximum Capacity: 2,000 entries
VLAN

IEEE 802.1Q: 128; GVRP
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: Not supported
Multicast VLAN (MVR): Not supported
Multicast Routing: PIM-SM; PIM-DM; PIM-SSM; MSDP
Layer 3 features
ARP Table

2,000 entries
Routing Table
Routing Table (RIB) (IPv4): 20,000 prefixes
Routing Table (RIB) (IPv6): 20,000 prefixes
Forwarding Table (FIB) (IPV4): 10,000 prefixes
Forwarding Table (FIB) (IPV6): 10,000 prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

IPSec VPN; GRE; L2TP
Security
IPv4 ACL: 2,000 Ingress + Egress
IPv6 ACL: 512 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; CWMP; Web-management
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 85 to 264 VAC, 47-64 Hz.
DC PSU: Not supported
Maximum power consumption
AR129CGVW-L: up to 15 W
AR129GW-L: up to 13 W
AR121GW-L: up to 13 W
AR121: up to 9.3 W
AR121W: up to 11.32 W
AR129: up to 9.7 W
AR129W: up to 11.5 W
Acoustic noise

0 dB
Dimensions (HxWxD)
AR129CGVW-L:

30 x 230 x 130 mm

(1.18 x 9.1 x 5.1 in)
AR129GW-L:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR121GW-L:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR121:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR121W:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR129:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR129W:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
Maximum Weight
AR129CGVW-L: 0.6 kg (1.32 lb)
AR129GW-L: 2.8 kg (6.2 lb)
AR121GW-L: 2.8 kg (6.2 lb)
AR121: 2.8 kg (6.2 lb)
AR121W: 2.8 kg (6.2 lb)
AR129: 2.8 kg (6.2 lb)
AR129W: 2.8 kg (6.2 lb)
Compatible Expansion Cards

Not supported
