Huawei AR150 series

Download AR150 series Datasheet (eng)

End-of-Sale

EOS for AR151, AR157:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000011216

EOS for AR157W, AR157VW, AR157G-HSPA+7, AR158E, AR158EVW

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000009813/

EOS for AR151G-HSPA+7, AR156, AR156W:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000008803/

Request a Quote
SPECIFICATIONS
Interfaces
AR151:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

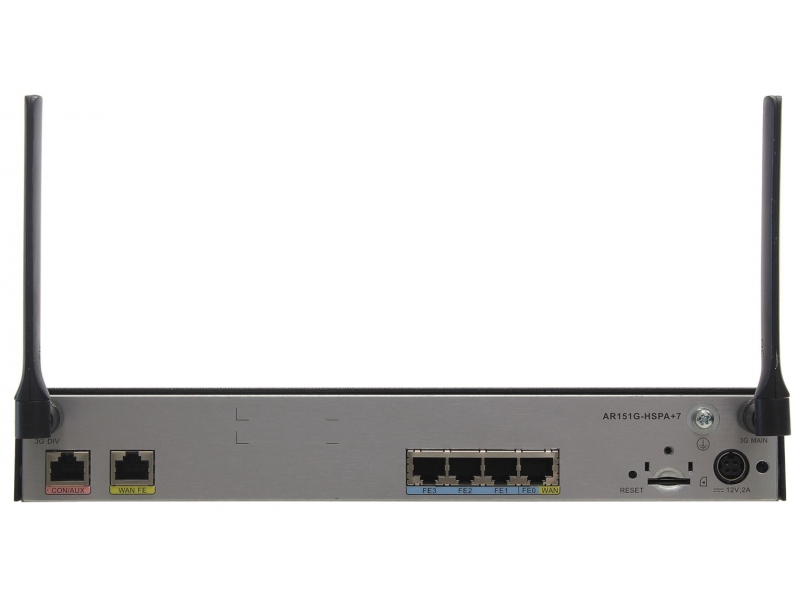

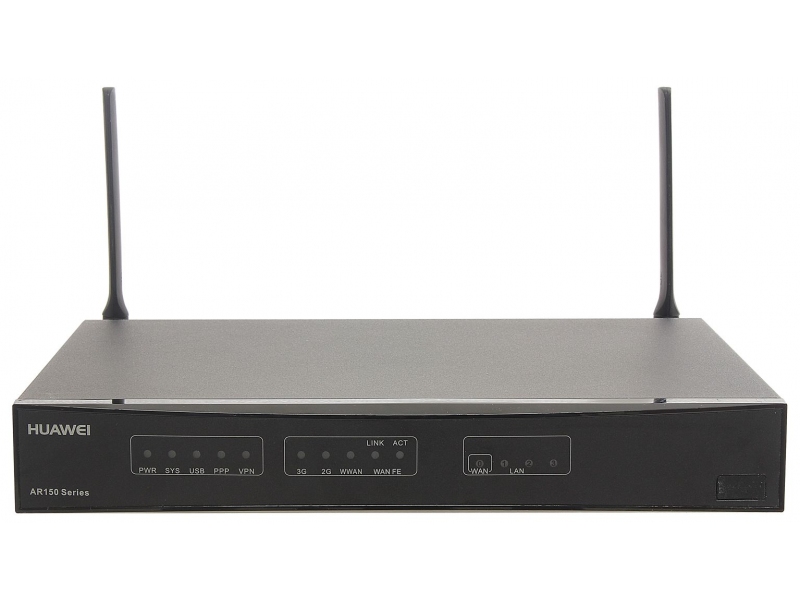

AR151G-HSPA+7:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 3G antennas (SMA);
  • 1 SIM card slot;
  • 1-Port USB;
  • 1 PoE power jack
  • 1-Port console (RJ45)

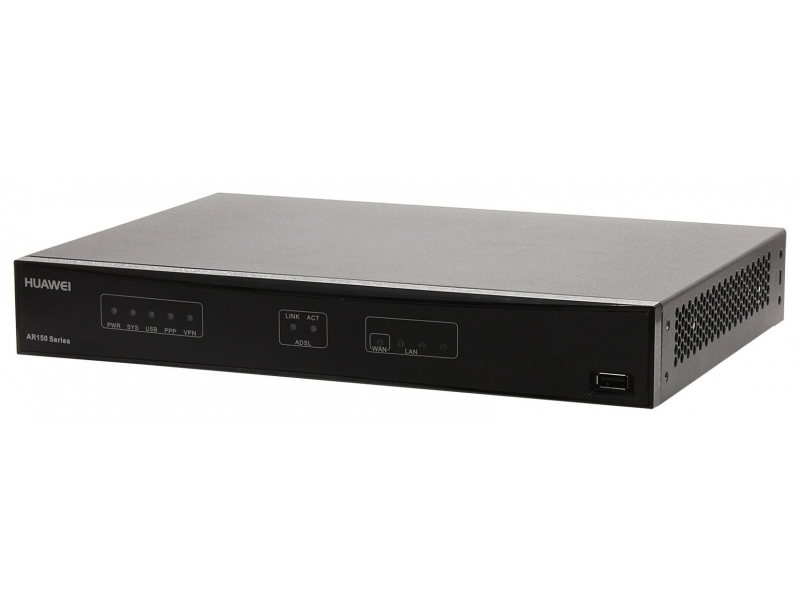

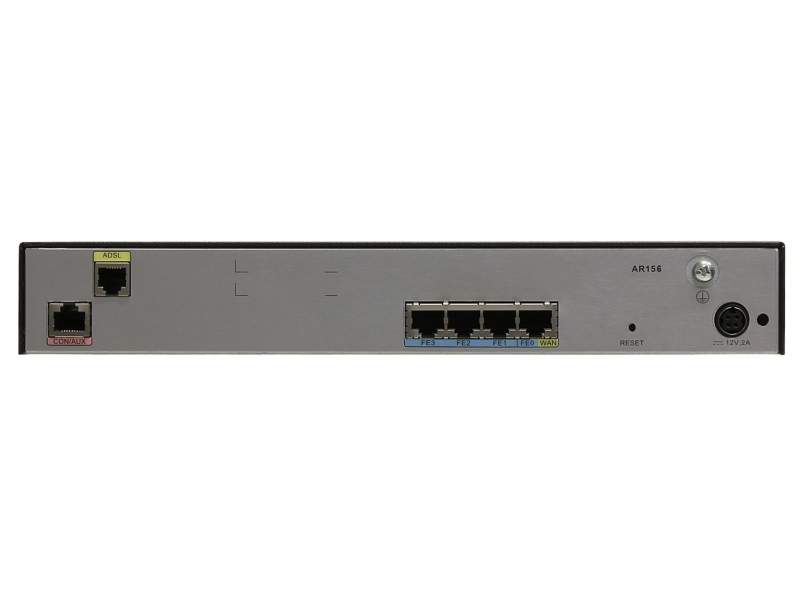

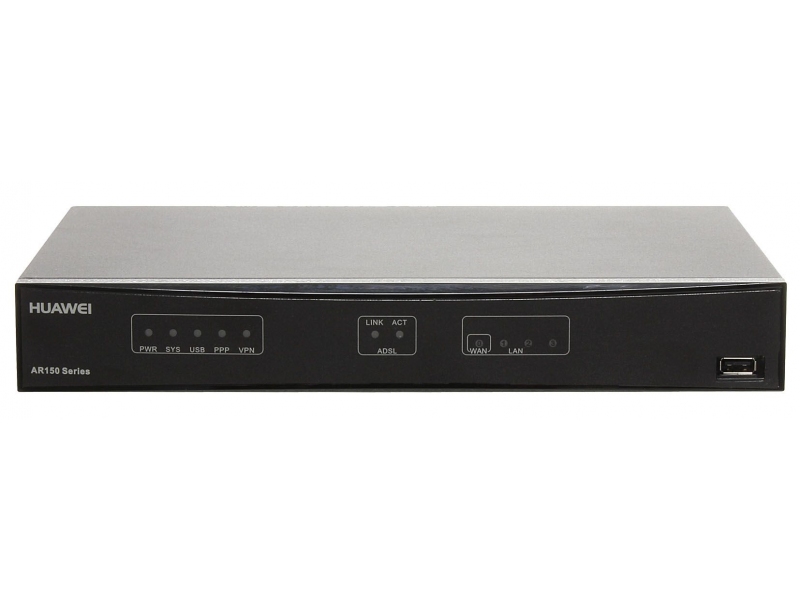

AR156:
  • 1-Port ADSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

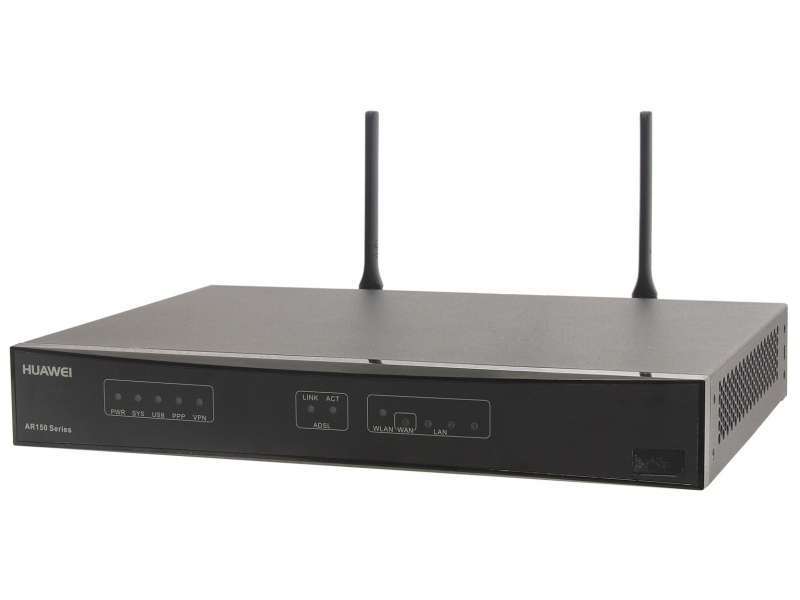

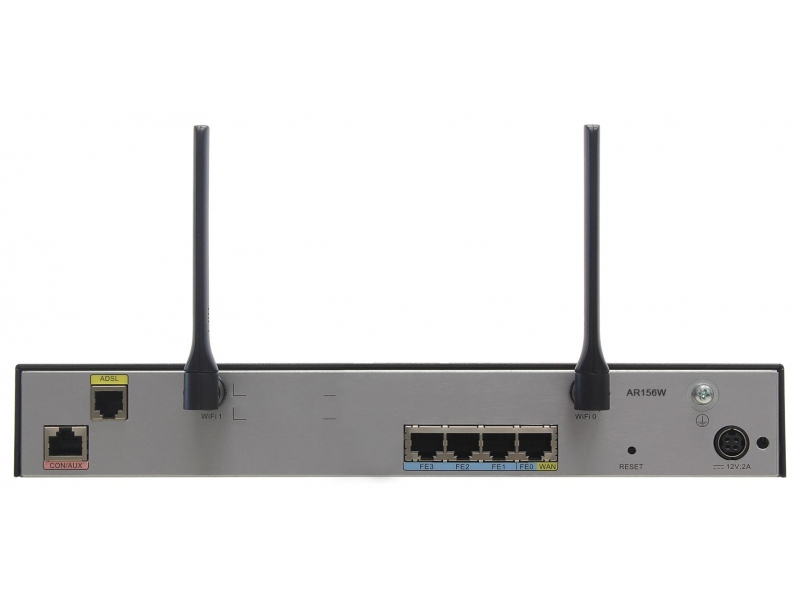

AR156W:
  • 1-Port ADSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR157:
  • 1-Port ADSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

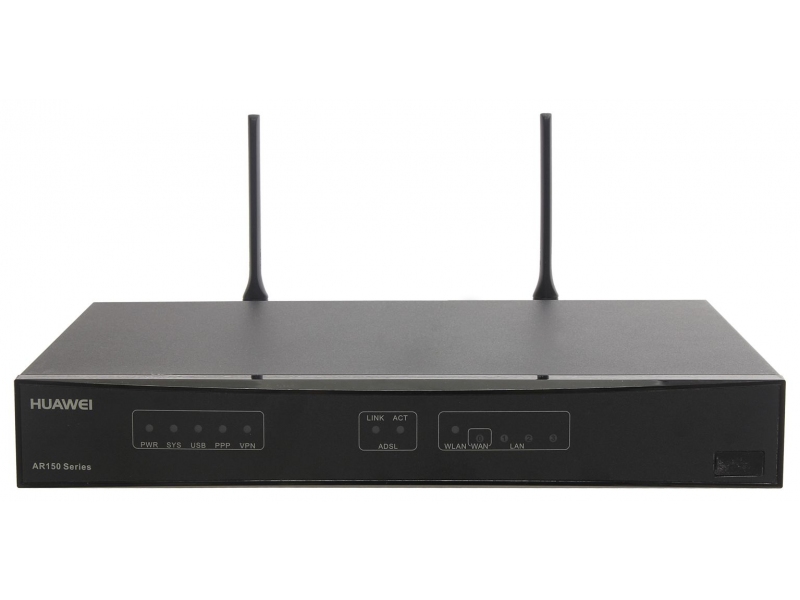

AR157W:
  • 1-Port ADSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

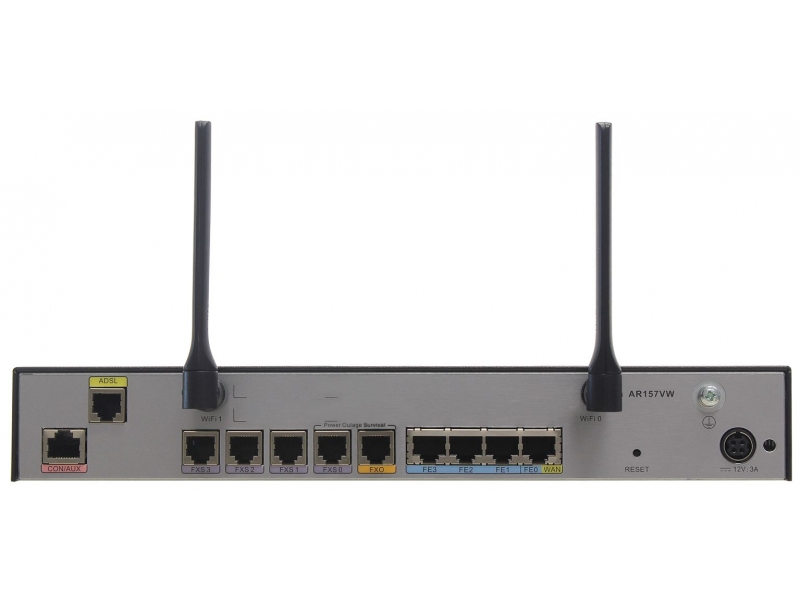

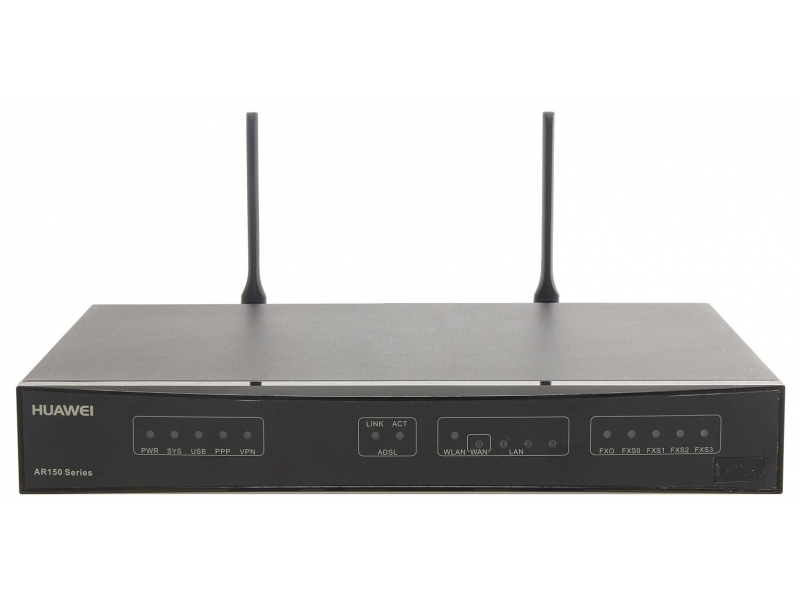

AR157VW:
  • 1-Port ADSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 4-Port FXS (RJ11);
  • 1-Port FXO (RJ11);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

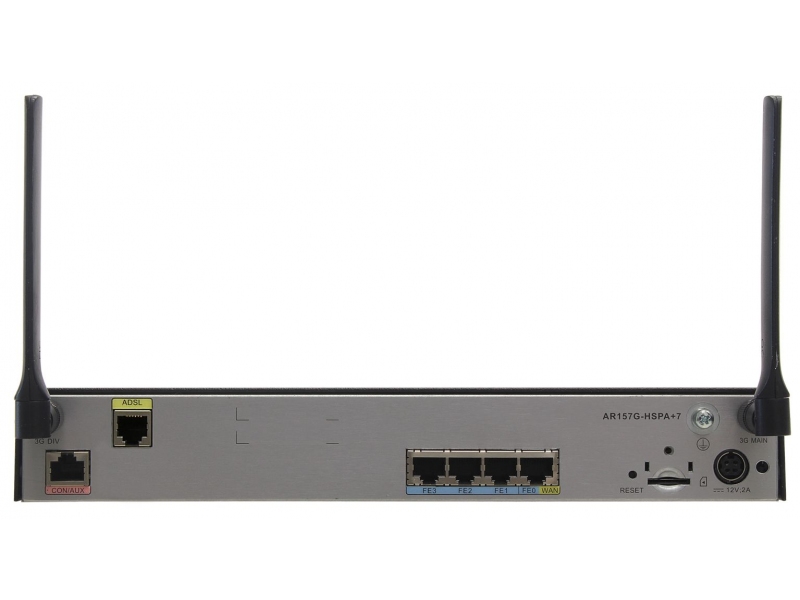

AR157G-HSPA+7:
  • 1-Port 10/100MbE (RJ45) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 2 3G antennas (SMA);
  • 1 SIM card slot;
  • 1-Port USB;
  • 1-Port console (RJ45)
AR158E:
  • 1-Port G.SHDSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

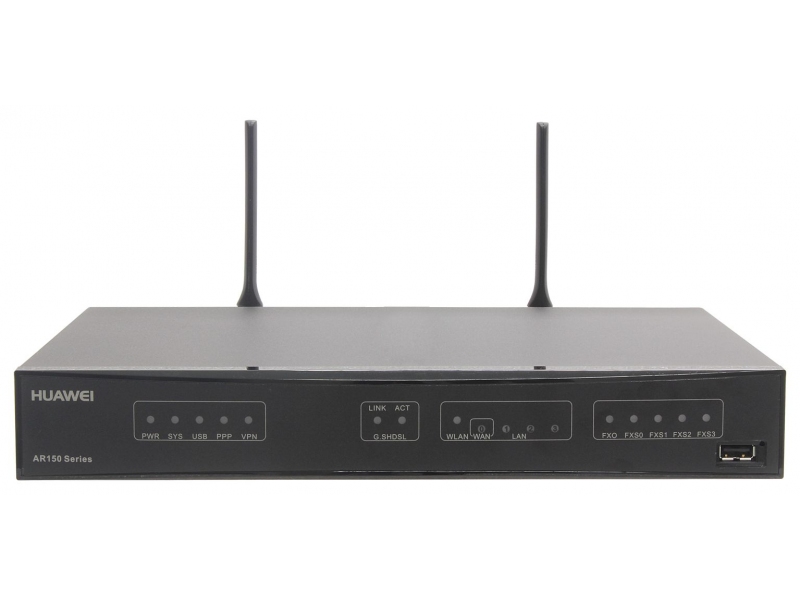

AR158EVW:
  • 1-Port G.SHDSL (RJ11) WAN;
  • 4-Port 10/100MbE (RJ45) LAN;
  • 4-Port FXS (RJ11);
  • 1-Port FXO (RJ11);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
Performance
Switching Capacity

100 Mbps
Forwarding Rate

300 Kpps
WLAN
3G-HSPA+7:
AR151G-HSPA+7:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz);
  • HSPA+/HSUPA/HSDPA/WCDMA: 850/900/1900/2100 (MHz)
AR157G-HSPA+7:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz);
  • HSPA+/HSUPA/HSDPA/WCDMA: 850/900/1900/2100 (MHz)
Wi-Fi:
AR156W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR157W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR157VW:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR158EVW:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AP Management Feature
Maximum AP Supported: 8 (license is required)
AP Supported:

AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
Voice Features
Supported protocols: (SIP / H.248)  (license is required)
Voice codecs: G.711A/µ
Fax: T.38
Layer 2 Features
MAC Address Table
Maximum Capacity: 2,000 entries
VLAN

IEEE 802.1Q: 128; GVRP
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: Not supported
Multicast VLAN (MVR): Not supported
Multicast Routing: PIM-SM; PIM-DM; PIM-SSM; MSDP
Layer 3 features
ARP Table

2,000 entries
Routing Table
Routing Table (RIB) (IPv4): 20,000 prefixes
Routing Table (RIB) (IPv6): 20,000 prefixes
Forwarding Table (FIB) (IPV4): 10,000 prefixes
Forwarding Table (FIB) (IPV6): 10,000 prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

IPSec VPN (license is required); GRE; L2TP
Security
IPv4 ACL: 2,000 Ingress + Egress
IPv6 ACL: 512 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; CWMP; Web-management
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 114°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 85 to 264 VAC, 47-63 Hz.
DC PSU: Not supported
Maximum power consumption
AR151: up to 36 W
AR151G-HSPA+7: up to 24 W
AR156: up to 36 W
AR156W: up to 24 W
AR157: up to 36 W
AR157W: up to 60 W
AR157VW: up to 60 W
AR157G-HSPA+7: up to 24 W
AR158E: up to 36 W
AR158EVW: up to 60 W
Acoustic noise

0 dB
Dimensions (HxWxD)
AR151:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR151G-HSPA+7:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR156:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR156W:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR157:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR157W:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR157VW:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR157G-HSPA+7:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR158E:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
AR158EVW:

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)

Maximum Weight

2.8 kg (6.2 lb)
Compatible Expansion Cards

Not supported
