Huawei AR160 series

Download AR160 series Datasheet (eng)

Available to quote:

AR161; AR161W; AR161G-L;

AR169; AR169G-L; AR169W-P-M9;

AR169RW-P-M9; AR169W; AR161FV-1P;

AR161FW; AR161F; AR161FG-L;

AR161FGW-L; AR162F; AR168F;

AR169F; AR169FVW;  AR169FGVW-L;

EOS for AR169FGW-L, AR161FW-P-M5:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000011219

Request a Quote
SPECIFICATIONS
Interfaces
AR161:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

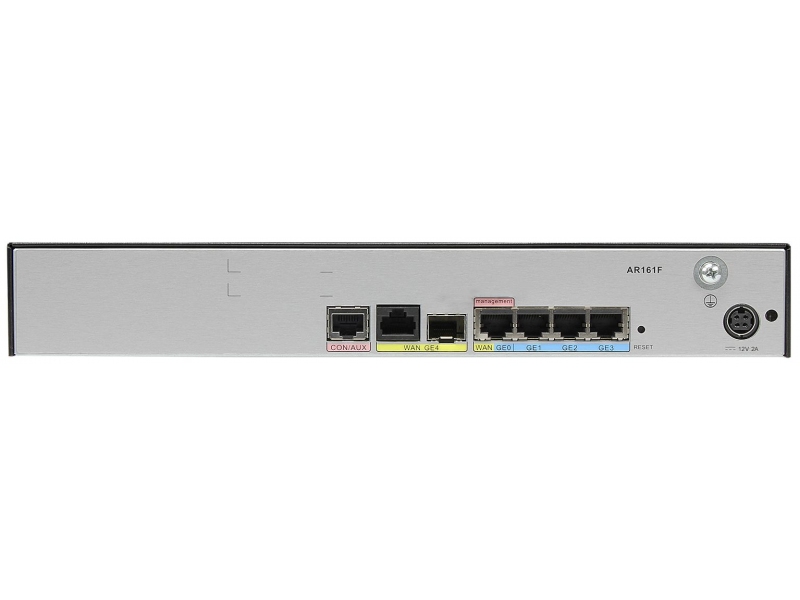

AR161F:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

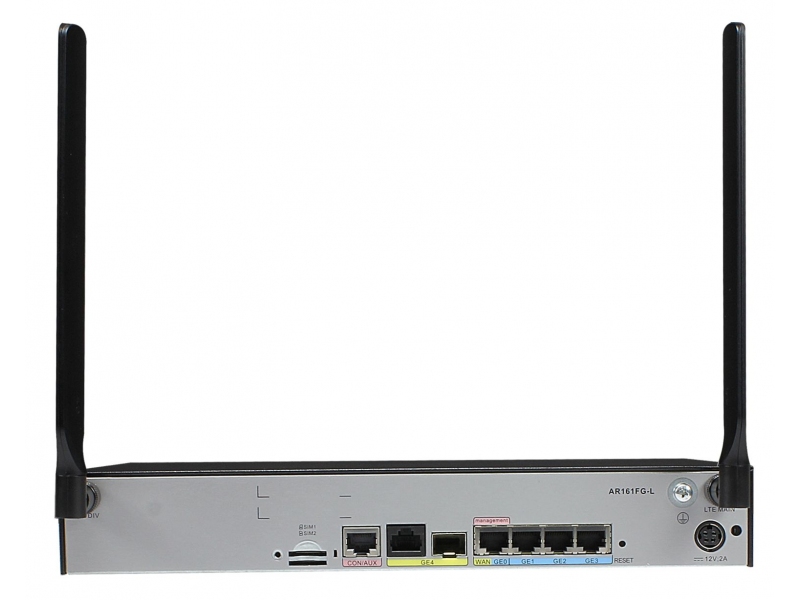

AR161FG-L:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 SIM card slots;
  • 2 LTE antennas (SMA RF);
  • 1-Port USB;
  • 1-Port console (RJ45)

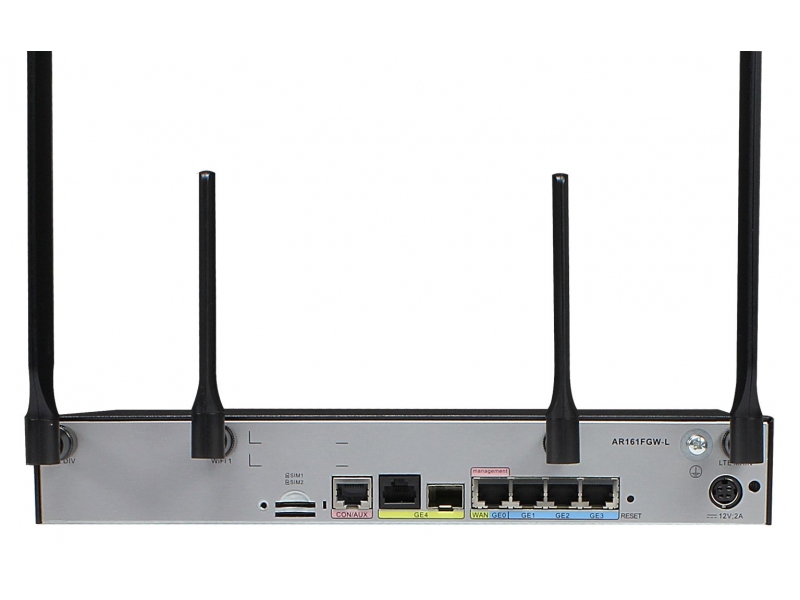

AR161FGW-L:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 SIM card slots;
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR161FV-1P:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port E1 (RJ45);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR161FW:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

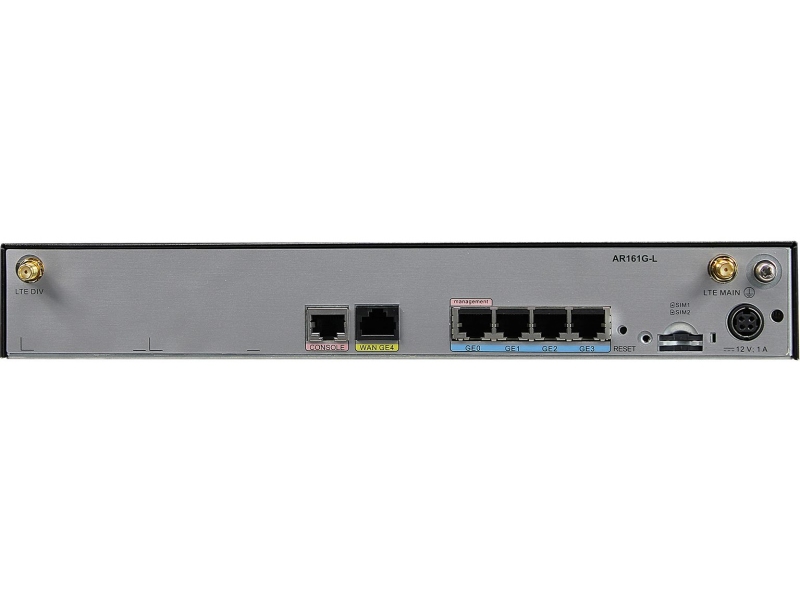

AR161G-L:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 SIM card slots;
  • 2 LTE antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR161W:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 3G antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR162F:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Interface SA (DB28)
  • 1-Port USB;
  • 1-Port console (RJ45)

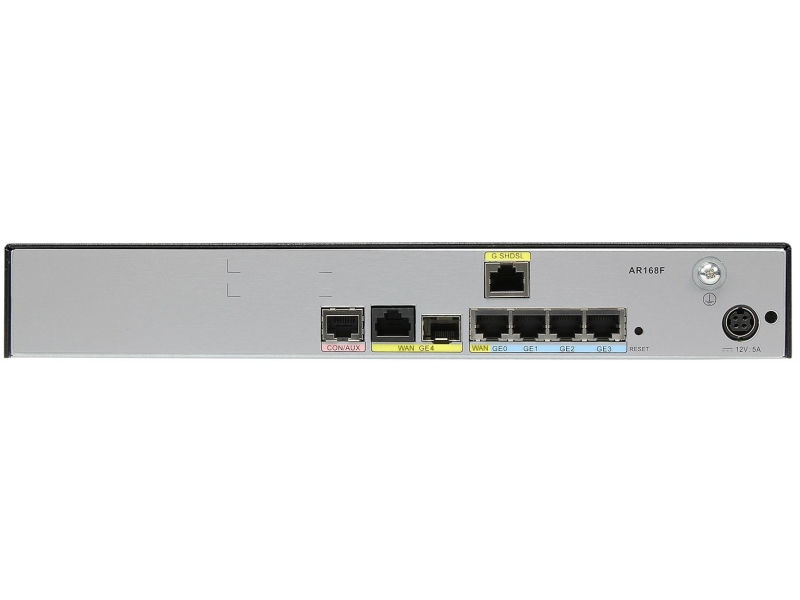

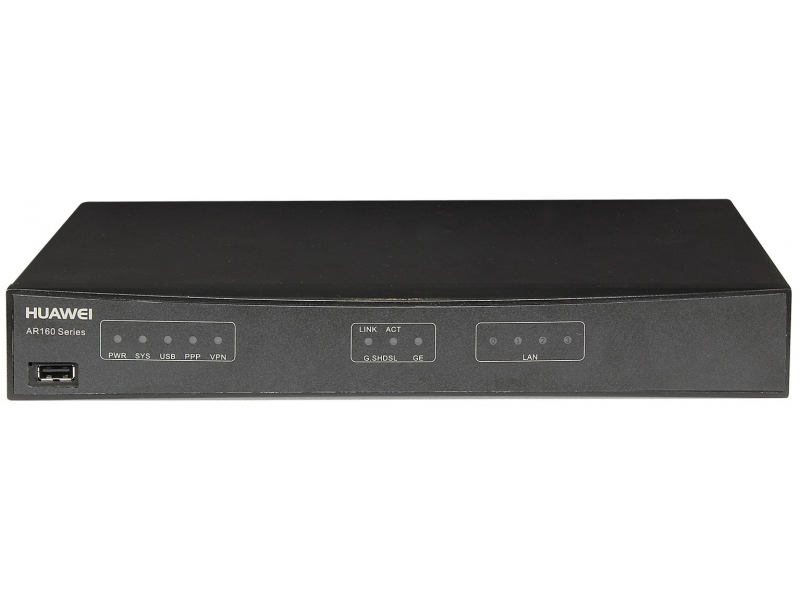

AR168F:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 1-Port G.SHDSL (RJ45) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

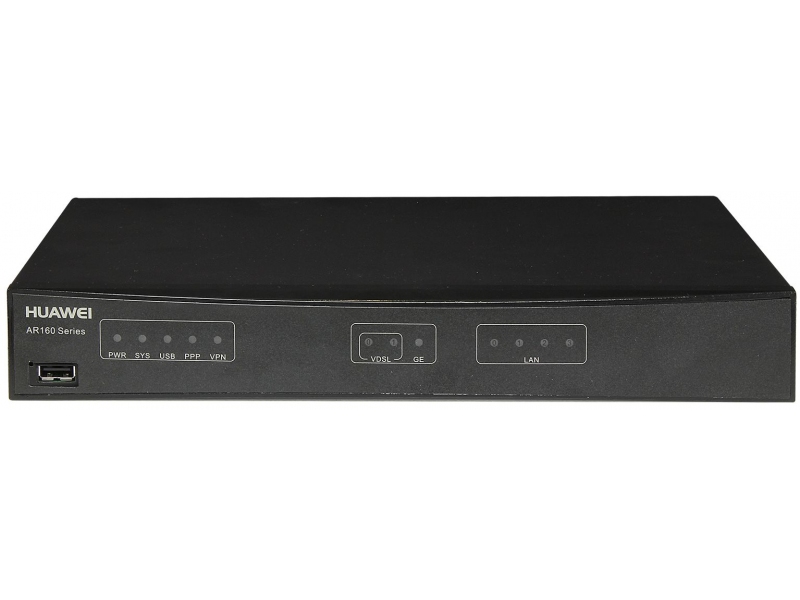

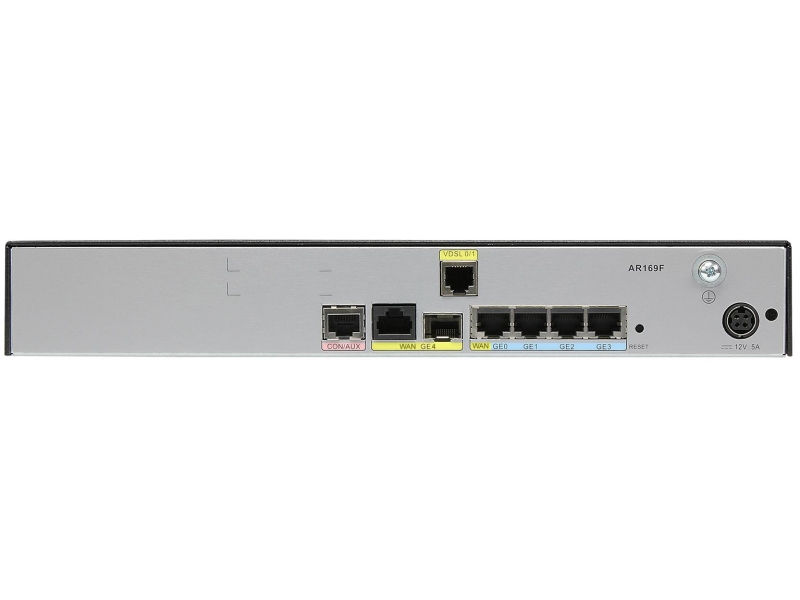

AR169F:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port USB;
  • 1-Port console (RJ45)

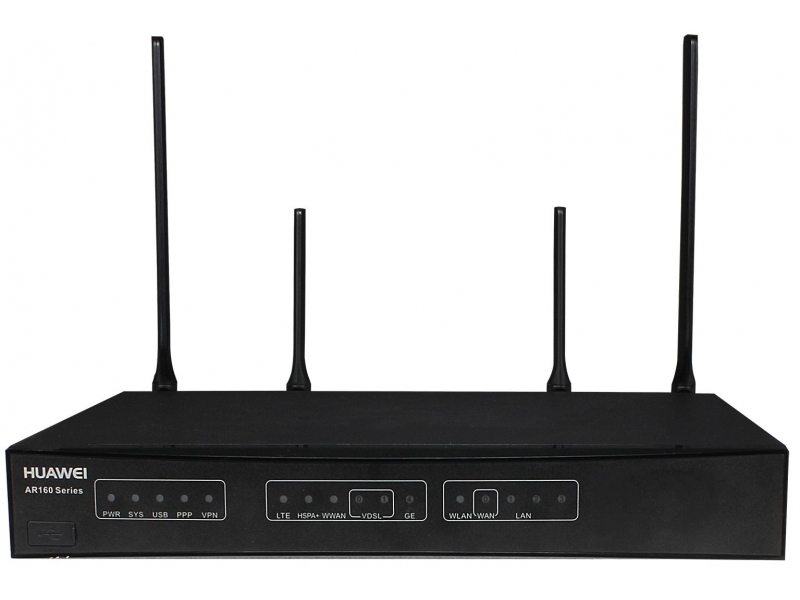

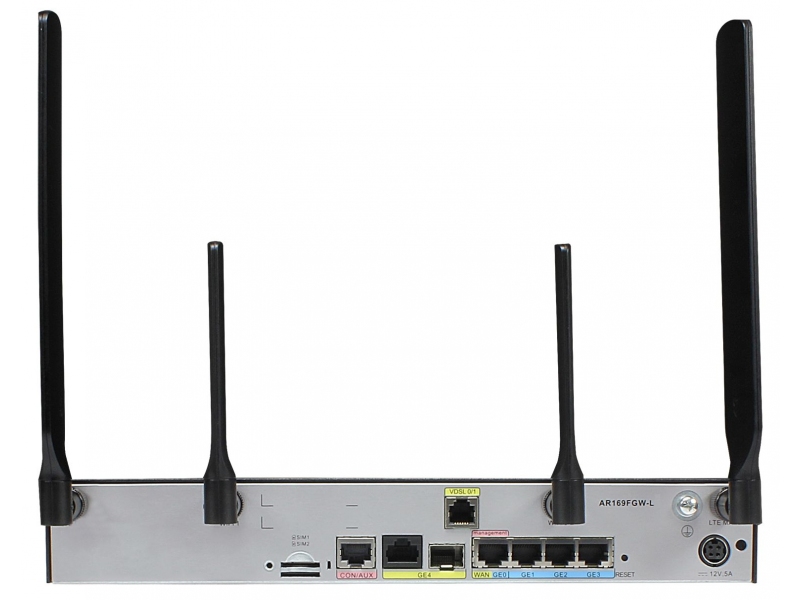

AR169FGW-L:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 SIM card slots;
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA RF);
  • 1-Port USB;
  • 1-Port console (RJ45)

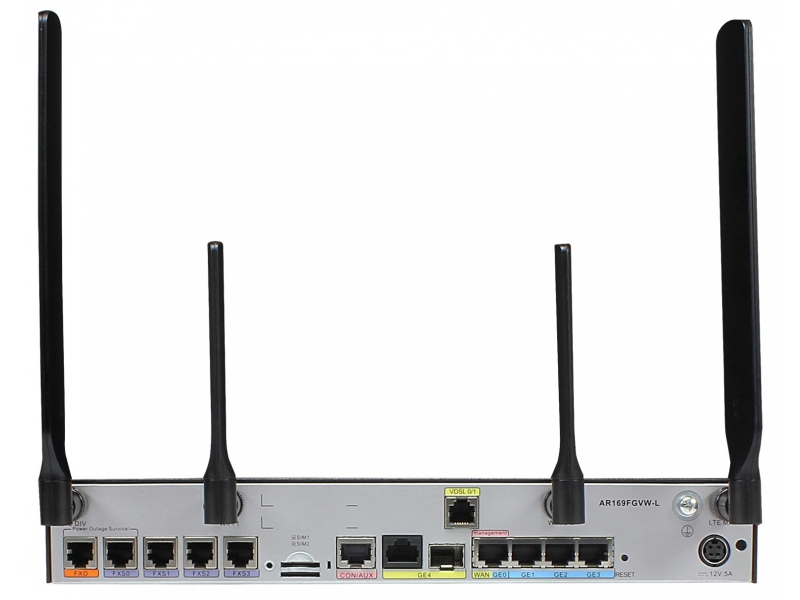

AR169FGVW-L:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 4-Port FXS (RJ11);
  • 1-Port FXO (RJ11);
  • 2 SIM card slots;
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA RF);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR169FVW:
  • 1-Port combo 1GbE (RJ45/SFP)  WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 4-Port FXS (RJ11);
  • 1-Port FXO (RJ11);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

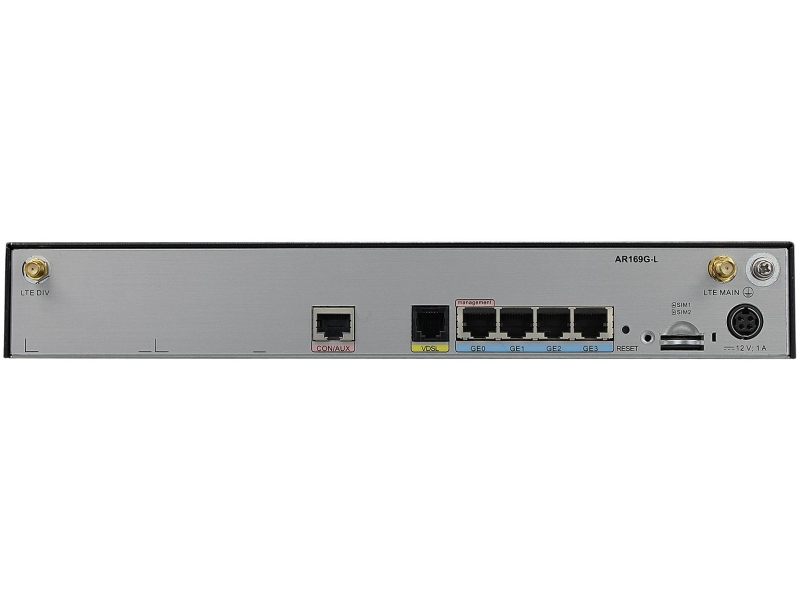

AR169G-L:
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 SIM card slots;
  • 2 LTE antennas (SMA RF);
  • 1-Port USB;
  • 1-Port console (RJ45)

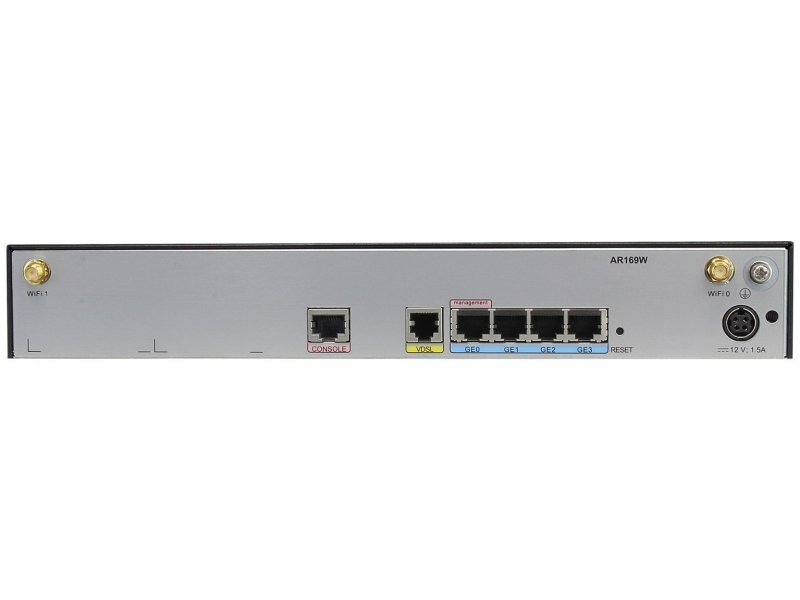

AR169W:
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port console (RJ45)

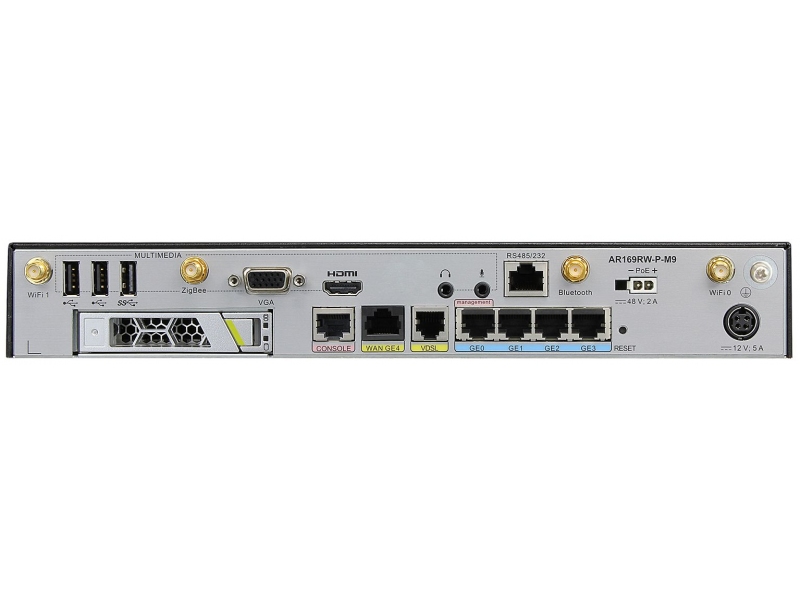

AR169RW-P-M9:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • Built-in HDD;
  • 1-Interface RS485/232 (RJ45);
  • 1 Bluetooth antenna (SMA);
  • 2 Wi-Fi antennas (SMA);
  • 1 ZigBee antenna (SMA);
  • 4-Port USB;
  • 1-Port VGA (DB15);
  • 1-Port HDMI
  • 1-Port earphone jack;
  • 1-Port microphone jack;
  • 1-Port PoE power jack
  • 1-Port console (RJ45)

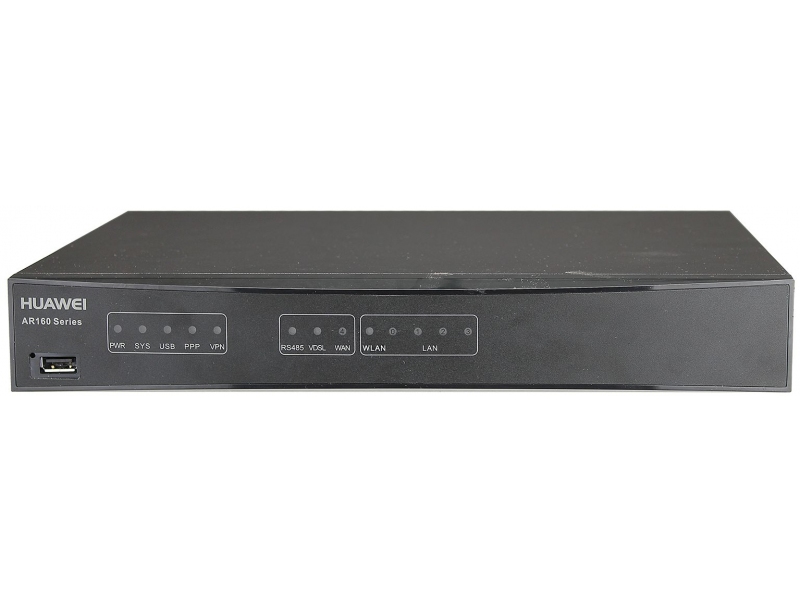

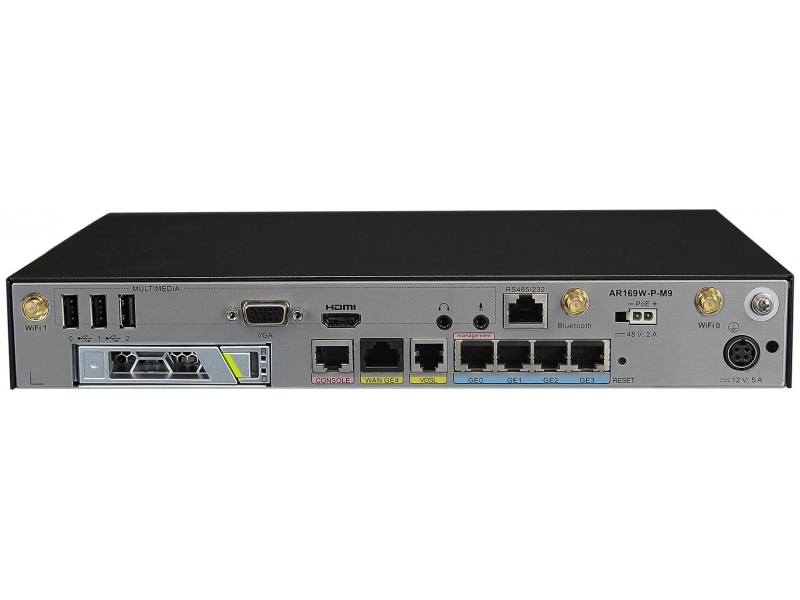

AR169W-P-M9:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port VDSL (RJ11) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • Built-in HDD;
  • 1-Interface RS485/232 (RJ45);
  • 1 Bluetooth antenna (SMA);
  • 2 Wi-Fi antennas (SMA);
  • 4-Port USB;
  • 1-Port VGA (DB15);
  • 1-Port HDMI
  • 1-Port earphone jack;
  • 1-Port microphone jack;
  • 1-Port PoE power jack
  • 1-Port console (RJ45)
Performance
Switching Capacity

150 Mbps
Forwarding Rate

550 Kpps
WLAN
3G / LTE:
AR161FG-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/5/7/8/20
AR161FGW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/5/7/8/20
AR169FGVW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/5/7/8/20
AR169FGW-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/5/7/8/20
AR161G-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/4/5/7/8/20
AR169G-L:
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • LTE FDD: Band 1/2/3/4/5/7/8/20
Wi-Fi:
AR161FGW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR161FW:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR169FVW:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR169FGVW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR169FGW-L:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR161W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR169W:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR169W-P-M9:
  • Standards/bands supported:802.11b/g/n/ac, 2.4GHz, 5.0 GHz, 2 x 2 MIMO;
  • Rate supported: 867 Mbps;
  • Antenna gain: 2.15 dBi / 3.0 dBi
AR169RW-P-M9
  • Standards/bands supported:802.11b/g/n/ac, 2.4GHz, 5.0 GHz, 2 x 2 MIMO;
  • Rate supported: 867 Mbps;
  • Antenna gain: 2.15 dBi / 3.0 dBi
Bluetooth:
AR169W-P-M9:
  • Standards/bands supported: BT4.0, EDR; 2.4 GHz
  • Rate supported: 1 Mbps
AR169RW-P-M9
  • Standards/bands supported: BT4.0, EDR; 2.4 GHz
  • Rate supported: 1 Mbps
AP Management Feature
Maximum AP Supported: 8 (license is required)
AP Supported:

AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
Voice Features
Supported protocols: (SIP / H.248)  (license is required)
Voice codecs: G.711A/µ
Fax: T.38
Layer 2 Features
MAC Address Table
Maximum Capacity: 2,000 entries
VLAN

IEEE 802.1Q: 128; GVRP
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: Not supported
Multicast VLAN (MVR): Not supported
Multicast Routing: PIM-SM; PIM-DM; PIM-SSM; MSDP
Layer 3 features
ARP Table

2,000 entries
Routing Table
Routing Table (RIB) (IPv4): 20,000 prefixes
Routing Table (RIB) (IPv6): 20,000 prefixes
Forwarding Table (FIB) (IPV4): 10,000 prefixes
Forwarding Table (FIB) (IPV6): 10,000 prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

IPSec VPN (license required); GRE; L2TP
Security
IPv4 ACL: 2,000 Ingress + Egress
IPv6 ACL: 512 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; CWMP; Web-management
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 114°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Quantity: 1
Rated voltage range: 85 to 264 VAC, 47-63 Hz.
DC PSU: Not supported
Maximum power consumption
AR161: up to 24 W
AR161F: up to 24 W
AR161FG-L: up to 24 W
AR161FGW-L: up to 24 W
AR161FV-1P: up to 24 W
AR161FW: up to 24 W
AR161G-L: up to 24 W
AR161W: up to 24 W
AR162F: up to 36 W
AR168F: up to 24 W
AR169F: up to 24 W
AR169FGW-L: up to 60 W
AR169FGVW-L: up to 24 W
AR169FVW: up to 24 W
AR169G-L: up to 24 W
AR169W: up to 60 W
AR169RW-P-M9: up to 60 W
AR169W-P-M9: up to 60 W
Acoustic noise

0 dB
Dimensions (HxWxD)

44 (1U) x 300 x 216.4 mm

(1.73 (1U) x 11.81 x 8.52 in)
Maximum Weight

2.8 kg (6.2 lb)
Compatible Expansion Cards

Not supported
