| Interfaces | |
|

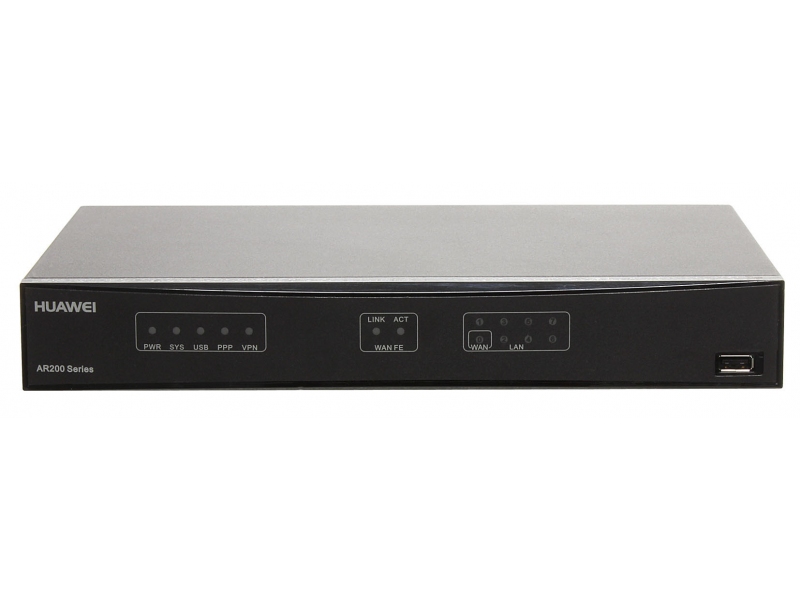

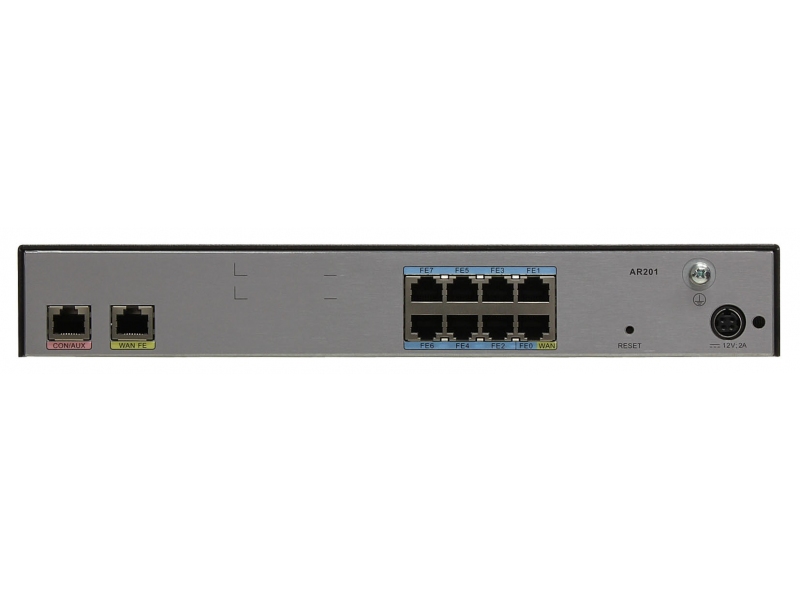

| AR201: |
- 1-Port 10/100MbE (RJ45) WAN;
- 8-Port 10/100MbE (RJ45) LAN;
- 1-Port USB;
- 1-Port console (RJ45)
|

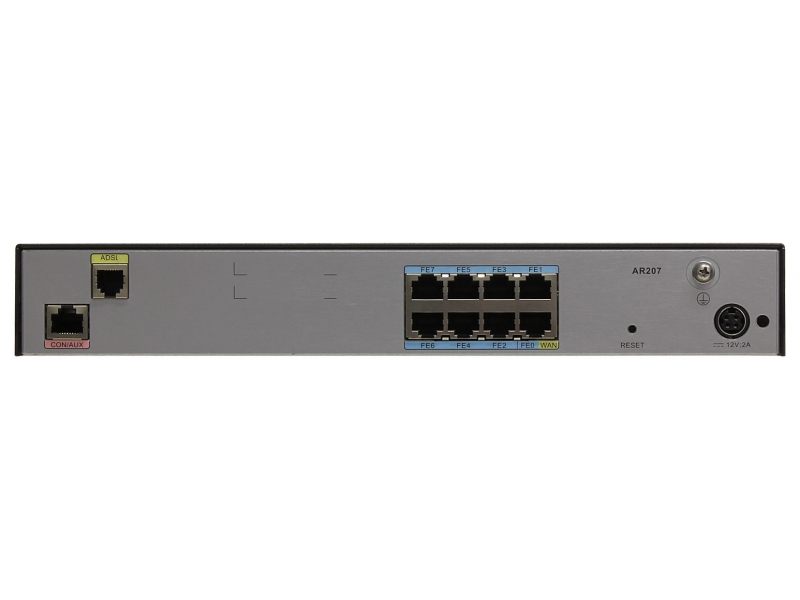

| AR207: |
- 1-Port ADSL (RJ11) WAN;
- 8-Port 10/100MbE (RJ45) LAN;
- 1-Port USB;
- 1-Port console (RJ45)
|

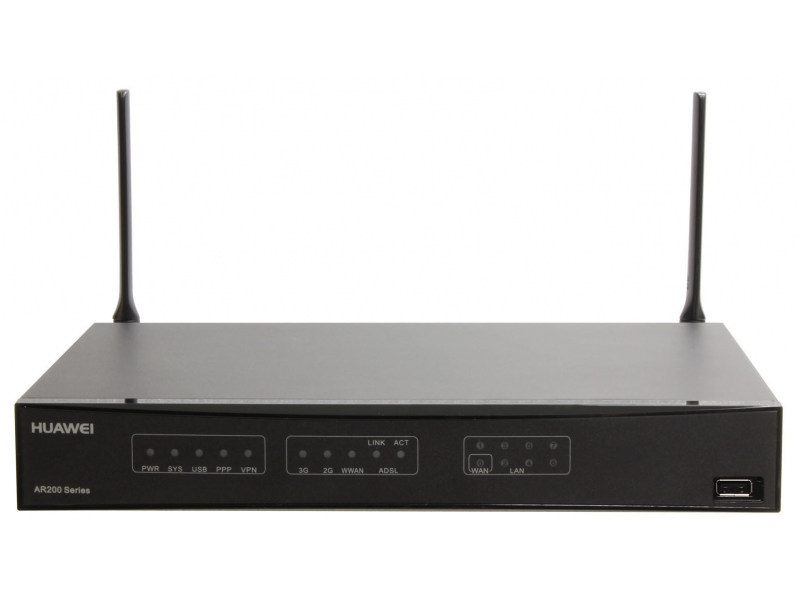

| AR207G-HSPA+7: |
- 1-Port ADSL (RJ11) WAN;
- 8-Port 10/100MbE (RJ45) LAN;
- 1 SIM card slot;
- 2 3G antennas (SMA);
- 1-Port USB;
- 1-Port console (RJ45)
|

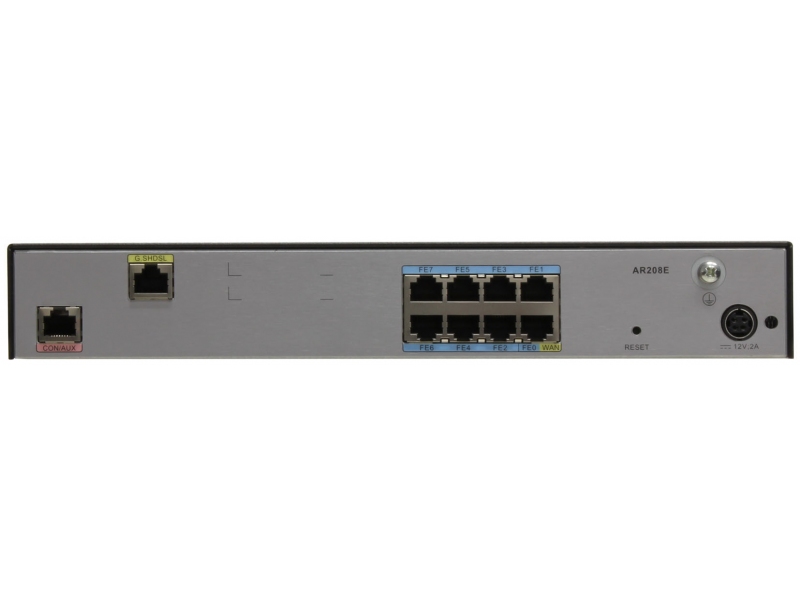

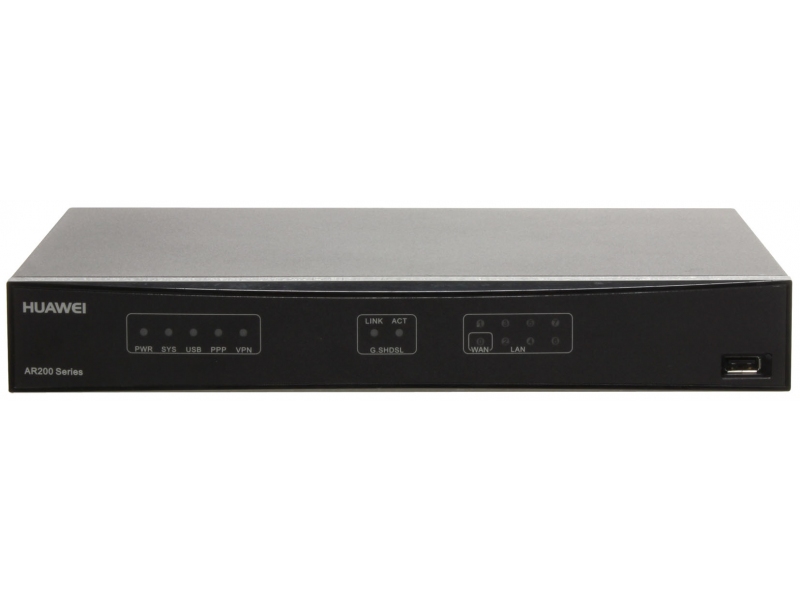

| AR208E: |
- 1-Port G.SHDSL (RJ11) WAN;
- 8-Port 10/100/1000MbE (RJ45) LAN;
- 1-Port USB;
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Capacity | 150 Mbps |
| Forwarding Rate | 550 Kpps |
| WLAN | |
|
| 3G / LTE: |
| AR207G-HSPA+7: |
- GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
- HSPA+/HSUPA/HSDPA/WCDMA: 850/900/1900/2100 (MHz)
|
|
| AP Management Feature | |
|
| Maximum AP Supported: |
8 (license required) |
| AP Supported: |
AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
|
|
| Voice Features | |
|
| Supported protocols: |
(SIP / H.248) (license is required) |
| Voice codecs: |
G.711A/µ |
| Fax: |
T.38 |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
2,000 entries |
|
| VLAN | IEEE 802.1Q: 128; GVRP |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
Not supported |
| Multicast VLAN (MVR): |
Not supported |
| Multicast Routing: |
PIM-SM; PIM-DM; PIM-SSM; MSDP |
|
| Layer 3 features | |
| ARP Table | 2,000 entries |
| Routing Table |
| Routing Table (RIB) (IPv4): |
20,000 prefixes |
| Routing Table (RIB) (IPv6): |
20,000 prefixes |
| Forwarding Table (FIB) (IPV4): |
10,000 prefixes |
| Forwarding Table (FIB) (IPV4): |
10,000 prefixes |
|
| IP Routing | Static Routes; BGP; IS-IS; OSPFv2 |
| MPLS / VPN | |
| IPSec VPN (license is required); GRE; L2TP |
| Security | |
|
| IPv4 ACL: |
2,000 Ingress + Egress |
| IPv6 ACL: |
512 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Not supported |
| DHCP Snooping: |
Not supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SNMP v1/v2/v3; SSH; CWMP; Web-management |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 114°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
External |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Not supported |
|
|
| Maximum power consumption | |
| up to 36 W |
| Acoustic noise | |
| 0 dB |
| Dimensions (HxWxD) | |
| 44 (1U) x 300 x 216.4 mm
(1.73 (1U) x 11.81 x 8.52 in) |
| Maximum Weight | |
| 2.8 kg (6.2 lb) |
| Compatible Expansion Cards | |
| Not supported
|
