Huawei AR510 series

Download AR510 series Datasheet (eng)

Available to quote:

AR511GW-LAV2M3; AR511CGW-LAV2M3;

AR511GW-LM7; AR511GW-L-B3;

AR513W-V3M8; AR515GW-LM9-D

EOS for AR511CGW-LAV2M3:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000011220

Request a Quote
SPECIFICATIONS
Interfaces

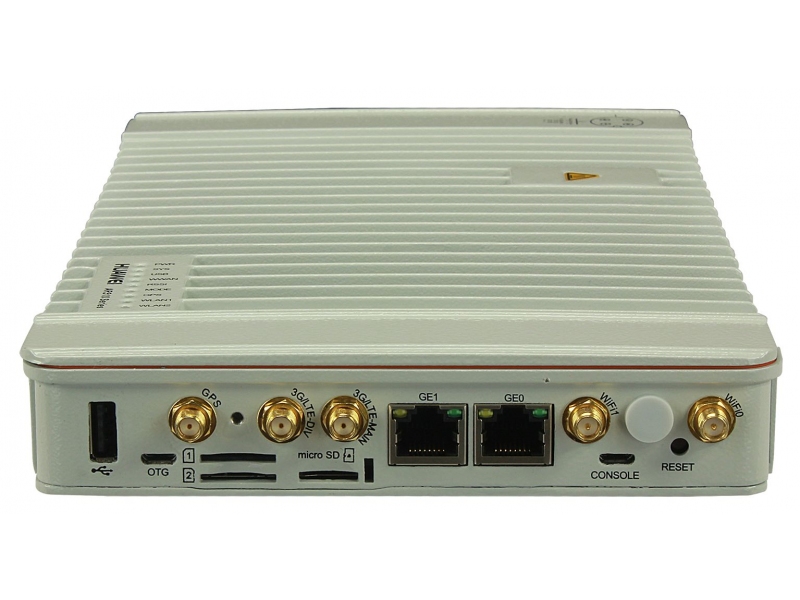

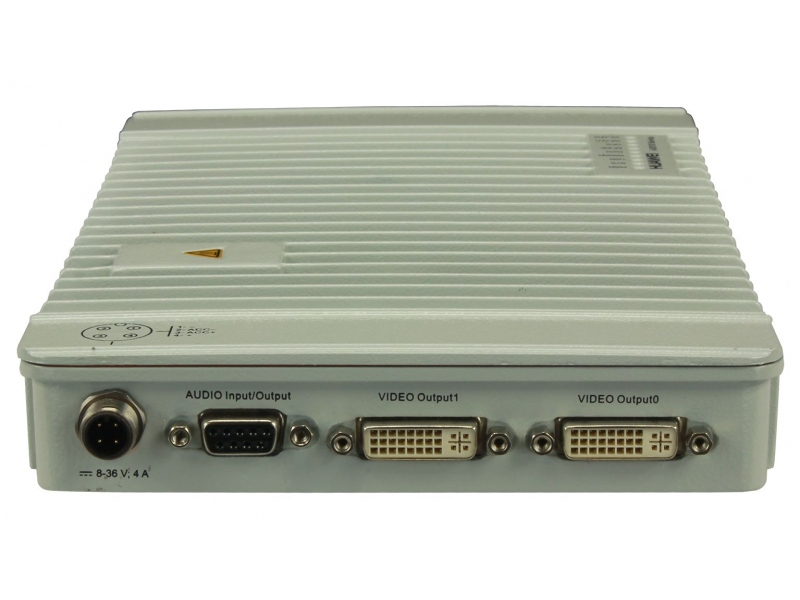

AR511GW-LAV2M3:
  • 2-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port Audio 1 IN / 2 OUT (DB9);
  • 2-Port Video OUT (DVI-I);
  • 1 GPS antenna (SMA RF);
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port microUSB;
  • 2 SIM card slots;
  • 1 Micro SD card slot;
  • 1-Port console (microUSB)
AR511CGW-LAV2M3:
  • 2-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port Audio 1 IN / 2 OUT (DB9);
  • 2-Port Video OUT (DVI-I);
  • 1 GPS antenna (SMA RF);
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port microUSB;
  • 2 SIM card slots;
  • 1 Micro SD card slot;
  • 1-Port console (microUSB)
AR511GW-LM7:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 1 GPS antenna (SMA RF);
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1-Port USB;
  • 1-Port microUSB;
  • 2 SIM card slots;
  • 1 Micro SD card slot;
  • 1-Interface mSATA (USB 3.0)
  • 1-Port console (microUSB)
AR511GW-L-B3:
  • 1-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port Audio IN / OUT (DB9);
  • 2-Port Video OUT (DVI-I);
  • 1 GPS antenna (SMA RF);
  • 2 LTE antennas (SMA RF);
  • 2 Wi-Fi antennas (SMA);
  • 1 DTMB antenna (SMA-K);
  • 1-Port USB;
  • 1-Port microUSB;
  • 2 SIM-card slots;
  • 1 Micro SD card slot;
  • 1-Port console (microUSB)

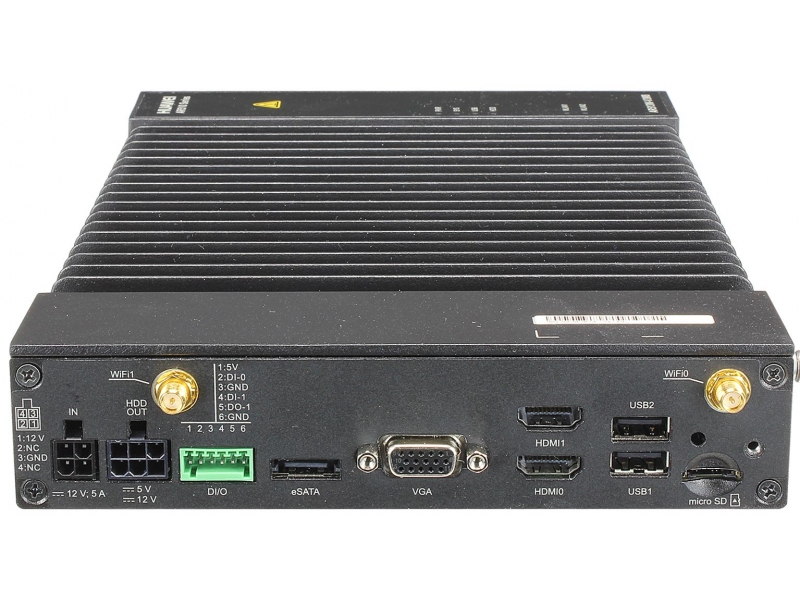

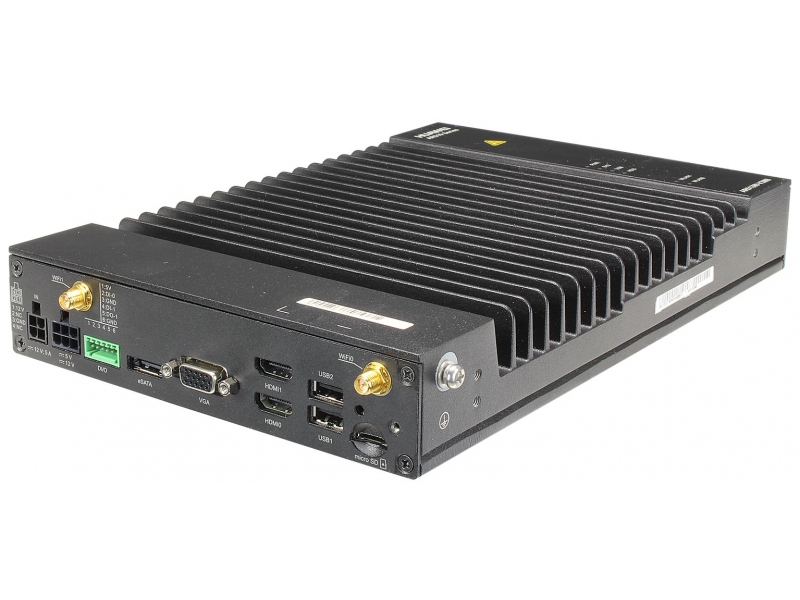

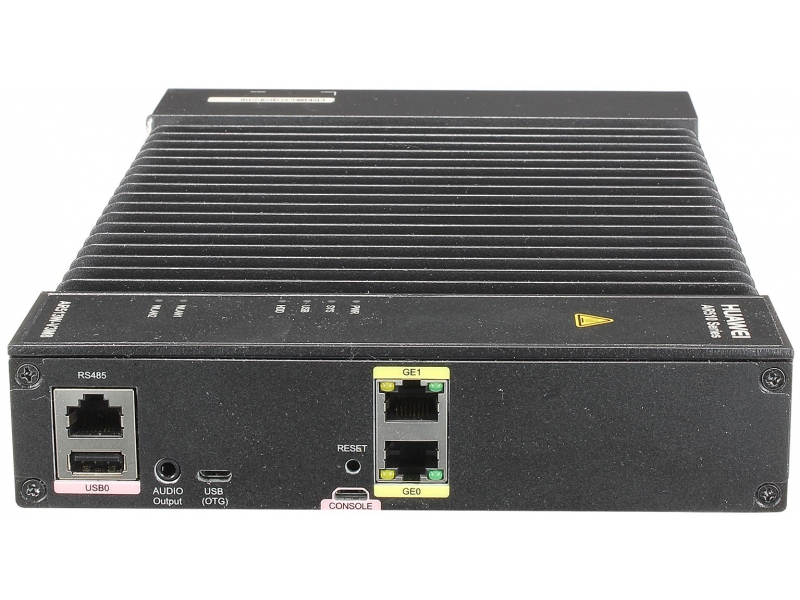

AR513W-V3M8:
  • 2-Port 10/100/1000MbE (RJ45) WAN;
  • 1-Port SATA ;
  • 1-Port DI / DO (Phoenix terminal block);
  • 1-Interfrace eSATA (eSATA connector);
  • 1-Port VGA (DB15);
  • 2-Port HDMI;
  • 2-Port USB;
  • 2 Wi-Fi antennas (SMA);
  • 1-Port RS485 (RJ45) (reserved for future use);
  • 1-Port Audio (3.5 mm);
  • 1-Port microUSB;
  • 1 Micro SD card slot;
  • 1-Port console (microUSB)

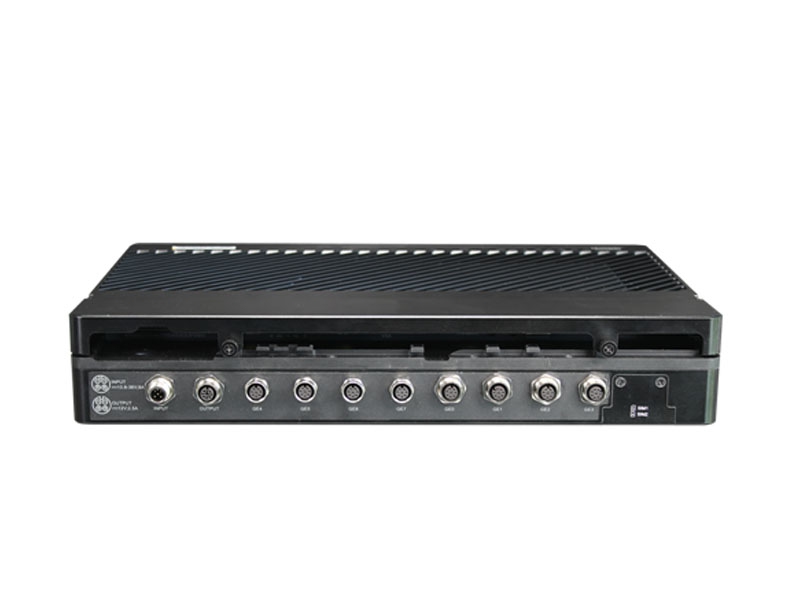

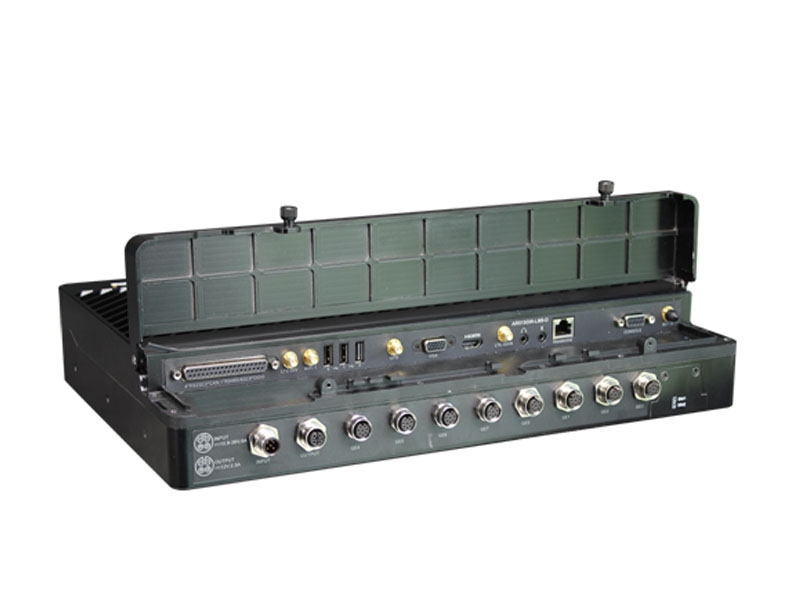

AR515GW-LM9-D:
  • 4-Port 10/100/1000MbE (M12) WAN;
  • 4-Port 10/100/1000MbE (M12) LAN;
  • 1-Port VGA (DB15);
  • 2 SIM-card slots;
  • 1-Port DB37 (usage: 4 x RS232; 2 x CAN; 1 x RS465/RS422;  8 x I/O (3 x DI/DO 5 V level; 2 x DI 5 V level; 3 x AI 24 V level; 5V / GND);
  • 2 LTE antennas (SMA);
  • 2 Wi-Fi antennas (SMA);
  • 3-Port USB;
  • 1 GPS antenna (SMA RF);
  • 1-Port HDMI;
  • 1-Port Earphone jack;
  • 1-Port Microphone jack;
  • 1-Port RS485/RS242 (RJ45);
  • 1 HDD expansion slot;
  • 1-Port console (DB9)
Performance
Switching Capacity

75 Mbps
Forwarding Rate

350 Kpps
WLAN
3G / LTE:
AR511GW-LAV2M3:
  • LTE FDD: Band 1/2/3/5/7/8/20
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
AR511CGW-LAV2M3:
  • FDD LTE: Band 1/3/8
  • TDD LTE: Band 38/39/40/41
  • HSPA+: Band 1/2/5/8
  • TD-SCDMA: Band 34/39
  • GSM/GPRS/EDGE: 900/1800/1900 (MHz)
AR511GW-LM7:
  • LTE FDD: Band 1/2/3/5/7/8/20
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
AR511GW-L-B3:
  • LTE FDD: Band 1/2/3/5/7/8/20
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
AR515GW-LM9-D:
  • LTE FDD: Band 1/2/3/5/7/8/20
  • WCDMA/HSDPA/HSUPA/HSPA+: Band 1/2/5/8
  • GSM/GPRS/EDGE: 850/900/1800/1900 (MHz)

Wi-Fi:
AR511GW-LAV2M3:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR511CGW-LAV2M3:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR511GW-LM7:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR511GW-L-B3:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR513W-V3M8:
  • Standards/bands supported: 802.11b/g/n, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 300 Mbps;
  • Antenna gain: 2.15 dBi
AR515GW-LM9-D:
  • Standards/bands supported: 802.11b/g/n/ac, 2.4GHz, 5.0 GHz; 2 x 2 MIMO;
  • Rate supported: 867 Mbps;
  • Antenna gain: 2.15 dBi

AP Management Feature
Maximum AP Supported: 8
AP Supported:

AP6010SN-GN; AP6010DN-AGN; AP6310SN-GN; AP6510DN-AGN;
AP6610DN-AGN; AP7110SN-GN; AP7110DN-AGN; AP5010SN-GN;
AP5010DN-AGN; AP3010DN-AGN; AP6510DN-AGN-US; AP6610DN-AGN-US; AP5030DN; AP5130DN; AP7030DE; AP2010DN; AP8130DN; AP8030DN; AP9330DN; AP4030DN; AP4130DN; AP3030DN; AP2030DN; AP9131DN; AP3010DN-V2
Layer 2 Features
MAC Address Table
Maximum Capacity: 256 entries
VLAN

IEEE 802.1Q: 64; GVRP
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: Not supported
Multicast VLAN (MVR): Not supported
Multicast Routing: PIM-SM; PIM-DM
Layer 3 features
ARP Table

1,000 entries
Routing Table
Routing Table (RIB): 2,000 prefixes
Forwarding Table (FIB): 2,000 prefixes
IP Routing

Static Routes; IS-IS; OSPFv2
MPLS / VPN

GRE
Security
IPv4 ACL: 2,000 Ingress + Egress
IPv6 ACL: Not supported
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; CWMP; Web-management
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature
AR511GW-LAV2M3; AR511CGW-LAV2M3: -10 to +60°C (14 to 140°F)
AR511GW-LM7: 0 to +50°C (32 to 122°F)
AR511GW-L-B3; AR513W-V3M8: -10 to +60 °C (14 to 140°F)
AR515GW-LM9-D:
  • With Hard DIsk Drive (HDD) installed: 0 to +45°C (32 to 113°F)
  • With a Solid State Drives (SSD) installed: –25 to +60°C (-13 to 140°F)
  • With no hard disk installed: –25 to +60°C (-13 to 140°F)
Power Supply
Power Supply Unit (PSU)
AC PSU: Not supported
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range:

AR511GW-LAV2M3; AR511CGW-LAV2M3; AR511GW-LM7; AR511GW-L-B3:

 12 VDC / 24 VDC
AR513W-V3M8: 12 VDC
AR515GW-LM9-D: 24 VDC
Maximum power consumption
AR511GW-LAV2M3; AR511CGW-LAV2M3: up to 30 W
AR511GW-LM7: up to 25 W
AR511GW-L-B3; AR513W-V3M8: up to 30 W
AR515GW-LM9-D: up to 72 W
Acoustic noise

0 dB
Dimensions (HxWxD)
AR511GW-LAV2M3; AR511CGW-LAV2M3; AR511GW-LM7; AR511GW-L-B3:

30.0 x 275.0 x 160 mm

(1.2 x 10.8 x 6.3 in)
AR513W-V3M8:

40.0 x 275.0 x 180 mm

(1.6 x 10.8 x 7.1 in)
AR515GW-LM9-D:

68.0 x 406.0 x 270 mm

(2.68 x 15.98 x 10.63 in)
Maximum Weight
AR511GW-LAV2M3; AR511CGW-LAV2M3; AR511GW-LM7; AR511GW-L-B3: 1.3 kg (2.87 lb)
AR513W-V3M8: 2.3 kg (5.07 lb)
AR515GW-LM9-D: 6.9 kg (15.2 lb)
Compatible Expansion Cards

Not supported
