Huawei AR550 series

Download AR550 series Datasheet (eng)

Available to quote:

AR550C-4GE; AR550C-2C6GE

AR550-8FE-D-H; AR550-24FE-D-H

Request a Quote
SPECIFICATIONS
Interfaces
AR550C-4GE:
  • 2-Port 1G/2.5G (SFP) WAN;
  • 4-Port 10/100/1000MbE (RJ45) LAN;
  • 1-Port DI / DO interface (5-pin Phoenix terminal block);
  • 1-Port USB;
  • 1-Port console (RJ45)
AR550C-2C6GE:
  • 2-Port 1G/2.5G (SFP) WAN;
  • 2-Port combo 1GbE (RJ45/SFP);
  • 6-Port 10/100/1000MbE (RJ45) LAN (GE0 and GE1 support PoE++, GE2 to GE5 support PoE+) ;
  • 1-Port DO/DI interface (5-pin Phoenix terminal block);
  • 1-Port RS485;
  • 1 Port PoE power socket;
  • 1-Port USB;
  • 1-Port console (RJ45)

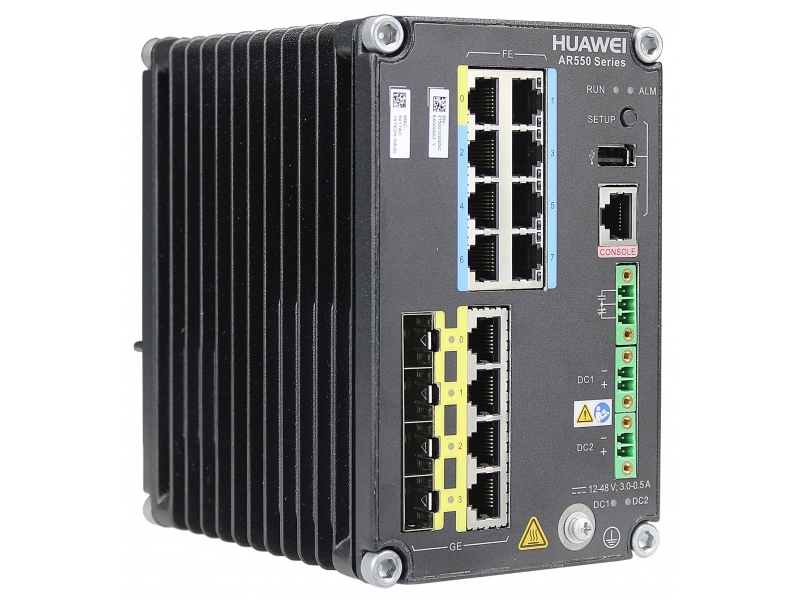

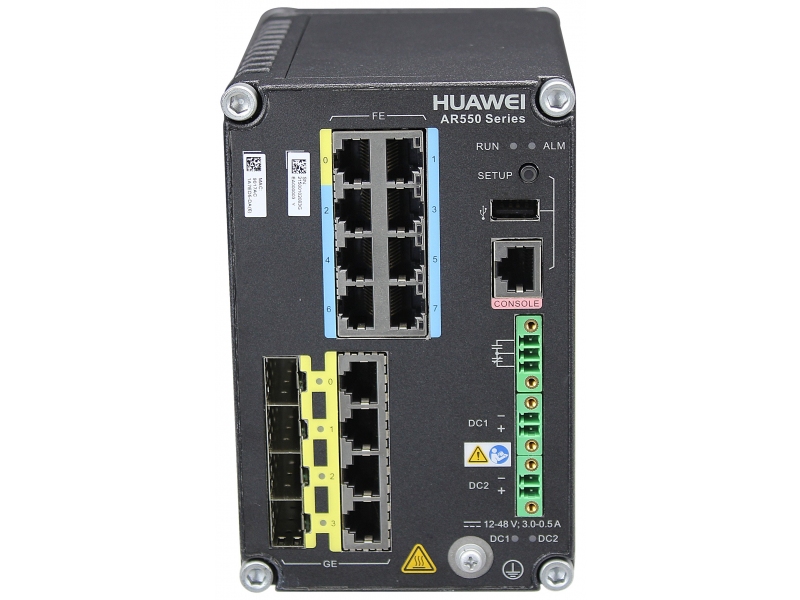

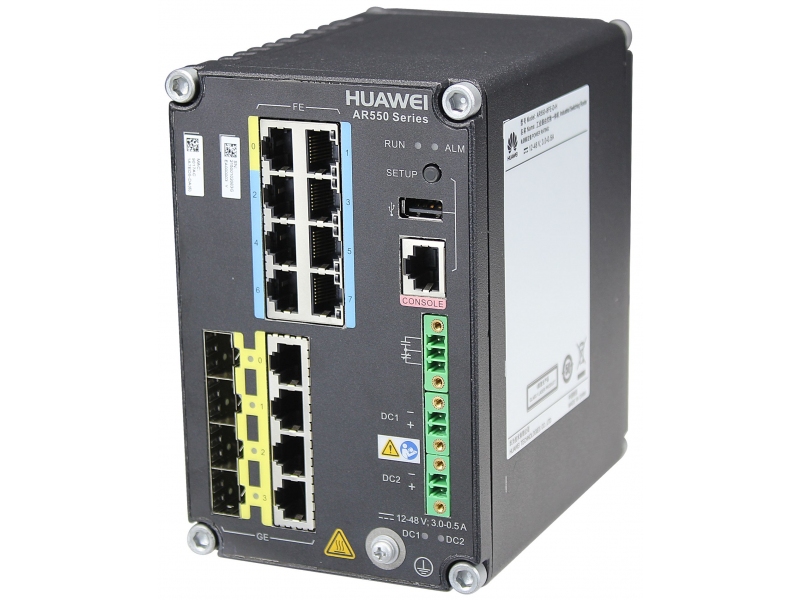

AR550-8FE-D-H:
  • 4-Port combo 1GbE (RJ45/SFP) WAN / LAN;
  • 8-Port 10/100MbE (RJ45) LAN;
  • 1-Port DO interface (3-pin Phoenix terminal block);
  • 1-Port USB;
  • 1-Port console (RJ45)

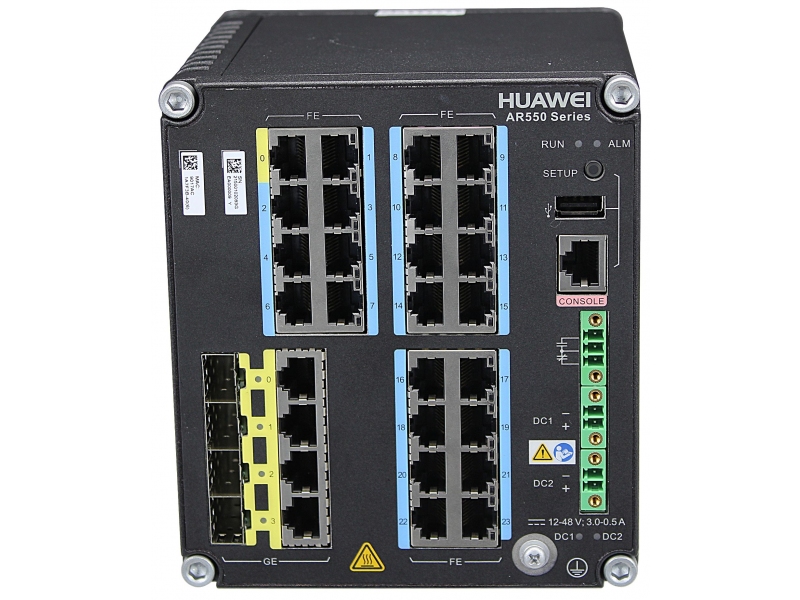

AR550-24FE-D-H:
  • 4-Port combo 1GbE (RJ45/SFP) WAN / LAN;
  • 24-Port 10/100MbE (RJ45) LAN;
  • 1-Port DO interface (3-pin Phoenix terminal block);
  • 1-Port USB;
  • 1-Port console (RJ45)
Performance
Switching Capacity
AR550C-4GE: 54 Gb/s
AR550C-2C6GE: 54 Gb/s
AR550-8FE-D-H: 24.8 Gb/s
AR550-24FE-D-H: 24.8 Gb/s
Forwarding Rate
AR550C-4GE: 13.5 Mp/s
AR550C-2C6GE: 19.5 Mp/s
AR550-8FE-D-H: 7.2 Mp/s
AR550-24FE-D-H: 9.6 Mp/s
WLAN

Not supported
AP Management Feature

Not supported
Layer 2 Features
MAC Address Table
Maximum Capacity: 256 entries
VLAN

IEEE 802.1Q: 64; GVRP
Layer 2 Reliability

STP/RSTP/MSTP; SEP
Multicast
IGMP snooping:
AR550C-4GE; AR550C-2C6GE: Not supported
AR550-8FE-D-H; AR550-24FE-D-H: Supported
Multicast VLAN (MVR): Not supported
Multicast Routing:
AR550C-4GE; AR550C-2C6GE: Not supported
AR550-8FE-D-H; AR550-24FE-D-H: PIM-SM; PIM-DM; PIM-SSM; MSDP

Layer 3 features
ARP Table

1,000 entries
Routing Table
Routing Table (RIB): 2,000 prefixes
Forwarding Table (FIB): 2,000 prefixes
IP Routing
AR550C-4GE: Static Routes; RIP; BGP
AR550C-2C6GE: Static Routes; RIP; BGP
AR550-8FE-D-H: Static Routes; RIP
AR550-24FE-D-H: Static Routes; RIP
MPLS / VPN

IPSec VPN
Security
IPv4 ACL: 2,000 Ingress + Egress
IPv6 ACL: Not supported
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Not supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SNMP v1/v2/v3; Web-management
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

-40 to +70°C (-40 to +158°F)
Power Supply
Power Supply Unit (PSU)
AC PSU: PAC-60WB
Type: External
Quantity: 1
Rated voltage range: 90 to 264 VAC
Output: 12 VDC
AC PSU: 240W PoE Power Supply
Type: External
Quantity: 1
Rated voltage range: 90 to 290 VAC
Output: 4 x 56 VDC
AC PSU: PAC-PSE08G-H
Type: External
Quantity: 1
Rated voltage range: 90 to 264 VAC
Output:
  • 12 VDC (25 W)
  • 48 VDC  (120 W PoE)
DC PSU: Not supported
Maximum power consumption
AR550C-4GE: 13 W
AR550C-2C6GE: 14 W
AR550-8FE-D-H: 21 W
AR550-24FE-D-H: 28 W
Acoustic noise

0 dB
Dimensions (HxWxD)
AR550C-4GE: 150 x 44 x 133 mm (5.9 x 1.73 x 5.2 in)
AR550C-2C6GE: 150 x 44 x 133 mm (5.9 x 1.73 x 5.2 in)
AR550-8FE-D-H: 97 x 133 x 153 mm (3.8 x 5.2 x 6.02 in)
AR550-24FE-D-H: 133 x 133 x 150 mm (5.2 x 5.2 x 5.9 in)
Maximum Weight
AR550C-4GE: 1.1 kg (2.4 lb)
AR550C-2C6GE: 1.1 kg (2.4 lb)
AR550-8FE-D-H: 1.6 kg (3.5 lb)
AR550-24FE-D-H: 2.1 kg (4.6 lb)
Compatible Expansion Cards

Not supported
