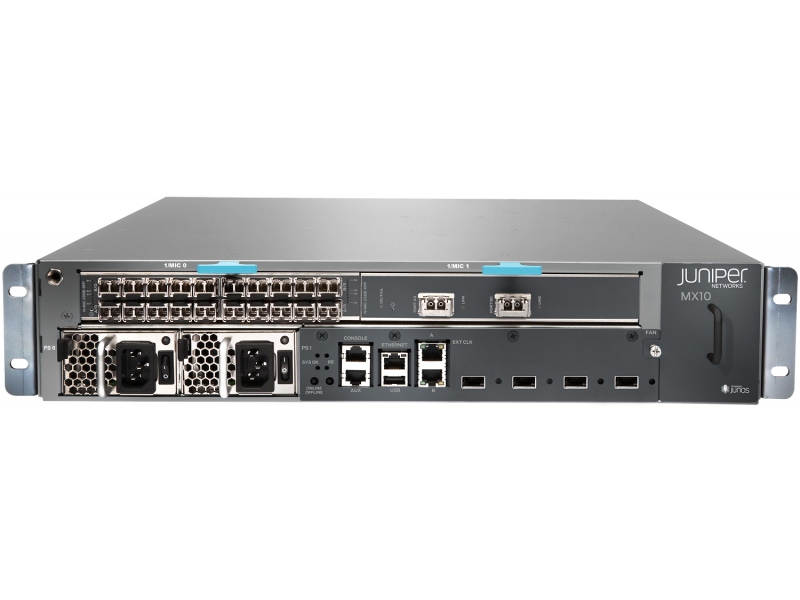

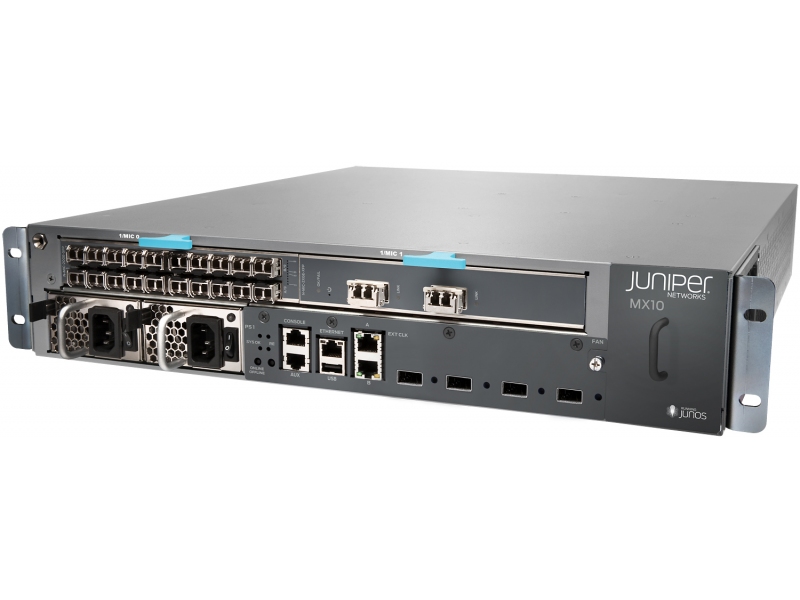

Juniper MX10

Download MX10 Datasheet (eng)

Available to quote:

MX10-T-AC; MX10-T-DC

Request a Quote
SPECIFICATIONS
Interfaces
MX10-T-AC/DC
  • 2 expansion slots (MIC) on the front panel (bundle includes 20-Port 1GbE (SFP) MIC card);

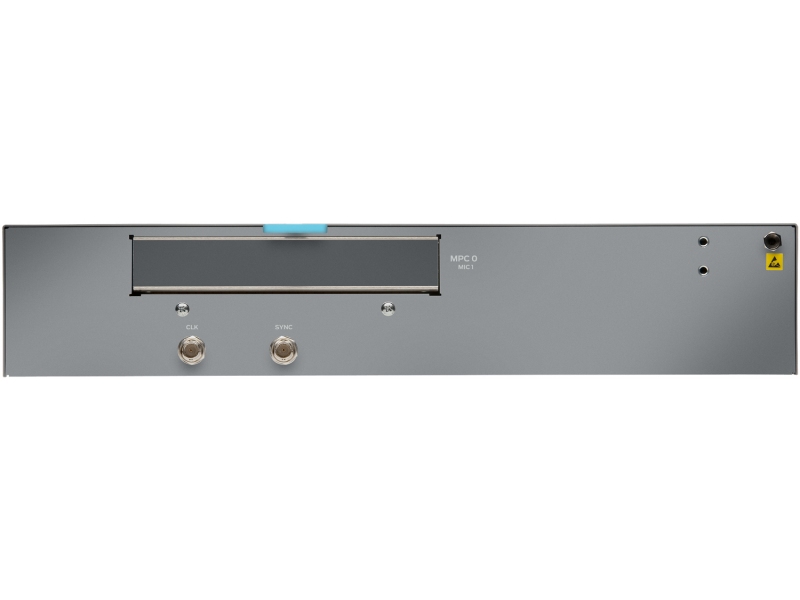

  • 1 expansion slot (MIC) on the rear panel;
  • 4-port 10GbE (XFP) on the front panel (license is required to activate 4 ports);
  • 1-Port 10/100/1000MbE out-of-band management (RJ45);
  • 1-Port AUX (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB;
  • 2-Port Clock IN (BITS) (RJ45) on the front panel;
  • 1-Port Clock OUT (BNC) (10 MHz) on the rear panel;
  • 1-Port Sync OUT (BNC) (1 PPS) on the rear panel
Performance
Switching Capacity

40 Gb/s
Forwarding Rate

55 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 500,000 entries
IFL table

16,000 interfaces
Layer 3 features
Routing Table
Routing Table (RIB): 4M prefixes
Forwarding Table (FIB): 1M prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

MPLS; VPLS; BFD; GRE
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
BRAS: Supported
CGNAT: Supported
Packet Filtering: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF
Environmental Conditions
Relative Humidity

5 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -40 to -72 VDC
Maximum power consumption
MX10-T-AC: up to 376 W
MX10-T-DC: up to 320 W
Acoustic noise

up to 70 dB
Dimensions (HxWxD)

87.6 (2U) x 445 х 596 mm

(3.45 (2U) x 17.52 x 23.46 in)
Maximum Weight

13.7 kg (30.2 lb)
Compatible expansion cards MIC

Model Number

Description

MIC-3D-8OC3OC12-4OC48

Multirate 8-Port non-channelized OC3-OC12 / 4-Port non-channelized OC48

MIC-3D-4OC3OC12-1OC48

4-Port non-channelized OC3-OC12 / 1-Port non-channelized OC48

MIC-3D-4CHOC3-2CHOC12

4-Port channelized OC3 / 2-Port channelized OC12 (down to DS0)

MIC-3D-8CHOC3-4CHOC12

8-Port channelized OC3 / 4-Port channelized OC12 (down to DS0)

MIC-3D-8OC3-2OC12-ATM

Multirate 8-Port non-channelized ATM OC3/STM1 or 2-Port non-channelized OC12/STM4 ATM

MIC-3D-4COC3-1COC12-CE

Multirate circuit emulation MIC. 4-Port channelized OC3 / STM1 (to DS0) or 1-Port channelized OC12/STM4 (to DS0)

MIC-3D-16CHE1-T1-CE

Circuit Emulation MIC. 16-Port сhannelized E1 / T1

MIC-3D-16CHE1-T1-CE-H

Circuit Emulation-hardened MIC. 16-Port сhannelized E1 / T1
MIC-3D-8DS3-E3 4-Port non-channelized DS3 / non-channelized E3
MIC-3D-8CHDS3-E3-B 8-Port channelized DS3 /  non-channelized E3

MIC-3D-1OC192-XFP

1-Port OC192

MS-MIC-16G

Multiservices MIC. Supports CGNAT, Firewall, IPSec

MIC3-3D-20GE-SFP

20-Port 100/1000MbE (SFP)

MIC-3D-20GE-SFP-E

20-Port 100/1000MbE (SFP). Environmentally hardened for 0 to 55°C (32 to 131°F) operating temperatures

MIC-3D-20GE-SFP-EH

20-Port 100/1000MbE (SFP). Environmentally hardened for -40 to +65°C (-40 to +149°F) operating temperatures

MIC-3D-2XGE-XFP

2-Port 10GbE (XFP)

MIC-3D-40GE-TX

40-Port 10/100/1000MbE (RJ45)
