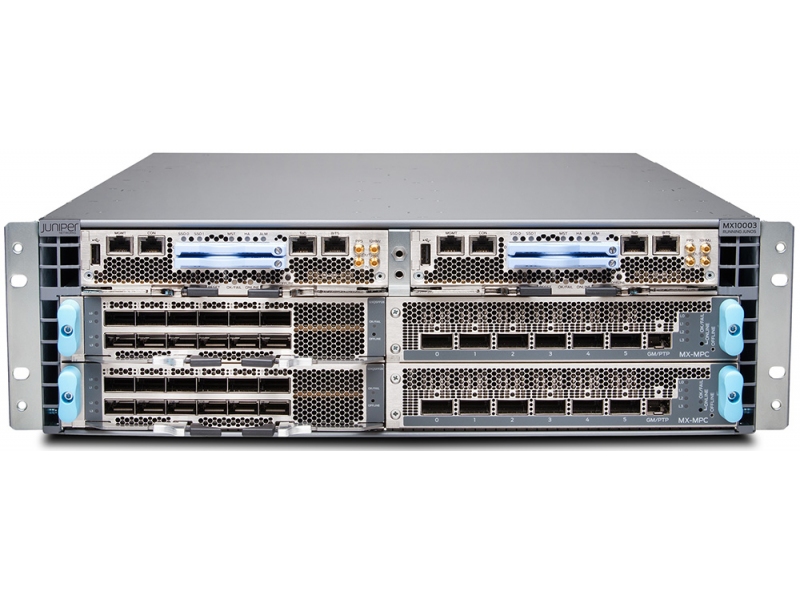

Juniper MX10003

MX10003 Datasheet (eng)

Available to quote:

MX10003

Request a Quote
SPECIFICATIONS
Interfaces
MX10003:
  • 2 Service Cards (MPC) slots;
  • 2 Routing and control board (RCB) slots

Performance
Switching Bandwidth

2.4 Tb/s
Layer 3 features
Routing Table
Routing Table (RIB): 20M prefixes
Forwarding Table (FIB): 4M prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

Supported.  LDP; RSVP; VPLS; L2VPN
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
BRAS: Not supported
CGNAT: Not supported
Packet Filtering: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF
Environmental Conditions
Relative Humidity

5 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 6
Rated voltage range: 90 to 264 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 6
Rated voltage range: -40 to -72 VDC
Maximum power consumption

2,400 W
Acoustic noise

60 dB
Dimensions (HxWxD)
132.5 (3U) x 482.6 х 762 mm
(5.217 (3U) x 19 x 30 in)
Maximum Weight

54.43 kg (120 lb)
Compatible Control Boards (RCB)
Model Number Description
JNP10003-RE1: Routing and Control board for MX10003 (CPU: 1.6 GHz , Memory: 64GB, Storage: 100 GB SSD)
Compatible Service Cards (MPC)

Model Number

Description
JNP10003-LC2103: 6-Port 100GbE (QSFP+), 1 MIC slot
Compatible Interface Cards (MIC)

Model Number

Description
JNP-MIC1: 12-Port 100GbE (QSFP+)
