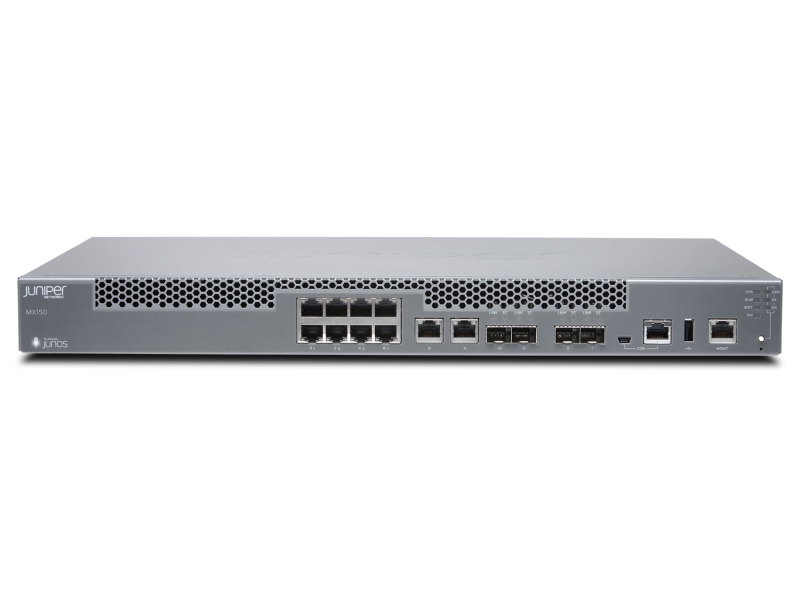

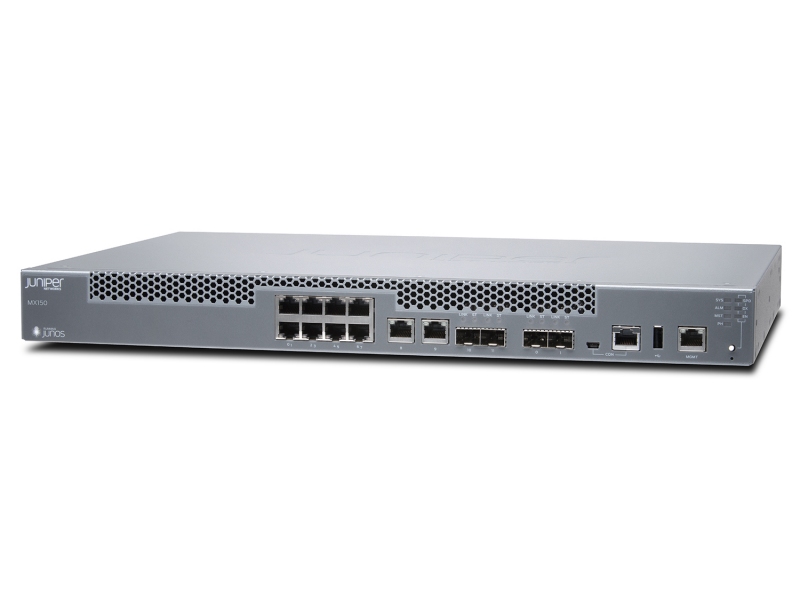

Juniper MX150

MX150 Datasheet (eng)

Available to quote:

MX150



Request a Quote
SPECIFICATIONS
Interfaces
MX150:
  • 10-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port USB
Performance
Switching Bandwidth

20 Gbit/s
Layer 3 features
Routing Table
Routing Table (RIB): 20M prefixes (with S-MX150-R license)
Forwarding Table (FIB): 4M prefixes (with S-MX150-R license)
IP Routing

Static Routes; BGP (with S-MX150-IR/-R license); IS-IS (with S-MX150-IR/-R license); OSPFv2 (with S-MX150-IR/-R license)
MPLS / VPN

Supported (with S-MX150-IR/-R license).  LDP; RSVP; VPLS; L2VPN; EVPN
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
BRAS: Not supported
CGNAT: Not supported
Packet Filtering: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF
Environmental Conditions
Relative Humidity

5 to 90% (noncondensing)
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Not supported
Maximum power consumption

140 W
Acoustic noise

60 dB
Dimensions (HxWxD)
43.7 (1U) x 440.9 х 304.8 mm
(1.72 (1U) x 17.36 x 12 in)
Maximum Weight

4.3 kg (9.48 lb)
Compatible expansion cards

Not supported
