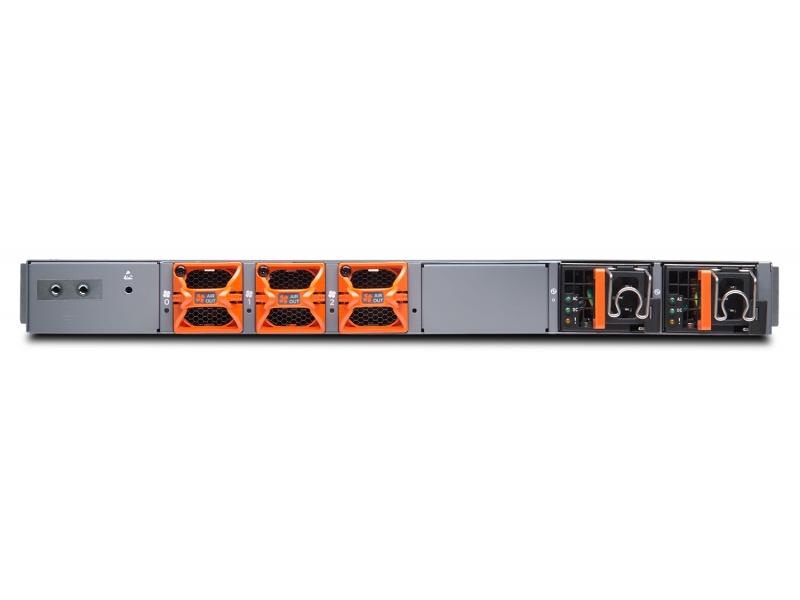

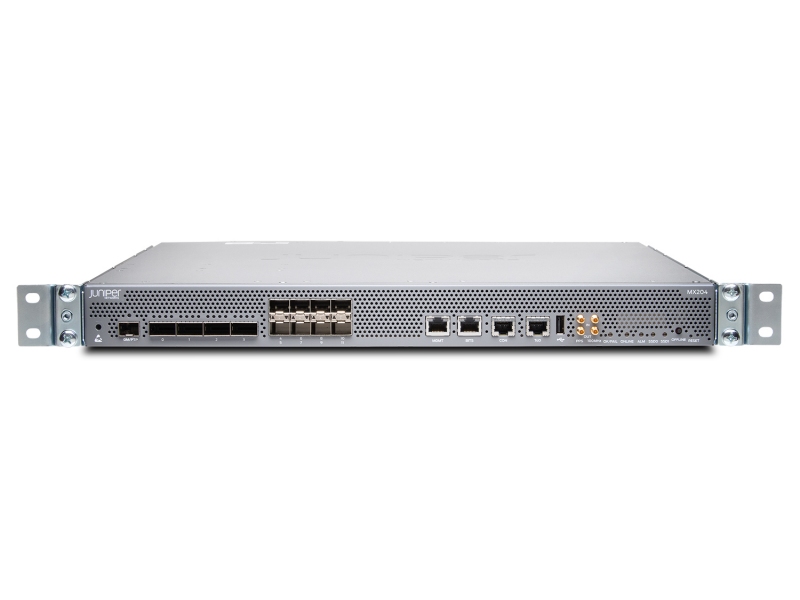

Juniper MX204

MX204 Datasheet (eng)

Available to quote:

MX204

Request a Quote
SPECIFICATIONS
Interfaces
MX204:
  • 4-Port 100GbE (QSFP28);
  • 8-Port 10GbE (SFP+);
  • 1-Port PTP (SFP);
  • 1-Port 10/100/1000MbE out-of-band management (RJ45);
  • 1-Port Clock (BITS) (RJ45);
  • 1-Port console (RJ45);
  • 1-Port ToD (RJ45);
  • 1-Port USB;
  • 1-Port Clock IN (BNC) (10 MHz);
  • 1-Port Clock OUT (BNC) (10 MHz);
  • 1-Port Clock IN (BNC) (1 PPS);
  • 1-Port Clock OUT (BNC) (1 PPS)
Performance
Switching Bandwidth

400 Gbit/s
Layer 3 features
Routing Table
Routing Table (RIB): 20M prefixes (with MX204-IR/-R mode)
Forwarding Table (FIB): 4M prefixes (with MX204-IR/-R mode)
IP Routing

Static Routes; BGP (with MX204-IR/-R mode); IS-IS (with MX204-IR/-R mode); OSPFv2 (with MX204-IR/-R mode)
MPLS / VPN

Supported (with MX204-IR/-R mode).  LDP; RSVP; VPLS; L2VPN; EVPN
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
BRAS: Not supported
CGNAT: Not supported
Packet Filtering: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF
Environmental Conditions
Relative Humidity

5 to 90% (noncondensing)
Operating Temperature
0 to 55°C (32 to 131°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -40 to -72 VDC
Maximum power consumption

260 W
Acoustic noise

60 dB
Dimensions (HxWxD)
44.5 (1U) x 447 х 475 mm
(1.75 (1U) x 17.6 x 18.7 in)
Maximum Weight
10.5 kg (23.15 lb)
Compatible expansion cards

Not supported
