Juniper MX80-48Т

Download MX80-48Т Datasheet (eng)

Available to quote:

MX80-48T-AC; MX80-48T-DC



Request a Quote
SPECIFICATIONS
Interfaces
MX80-48T-AC/DC

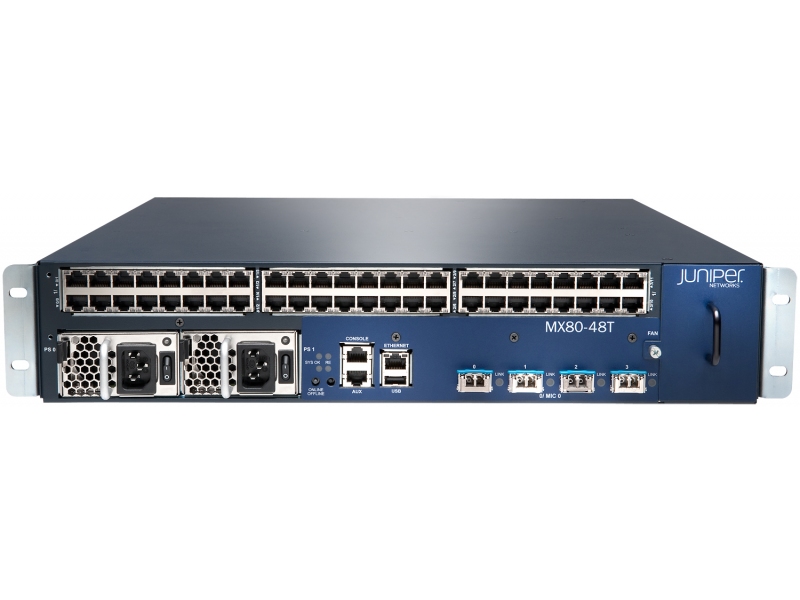

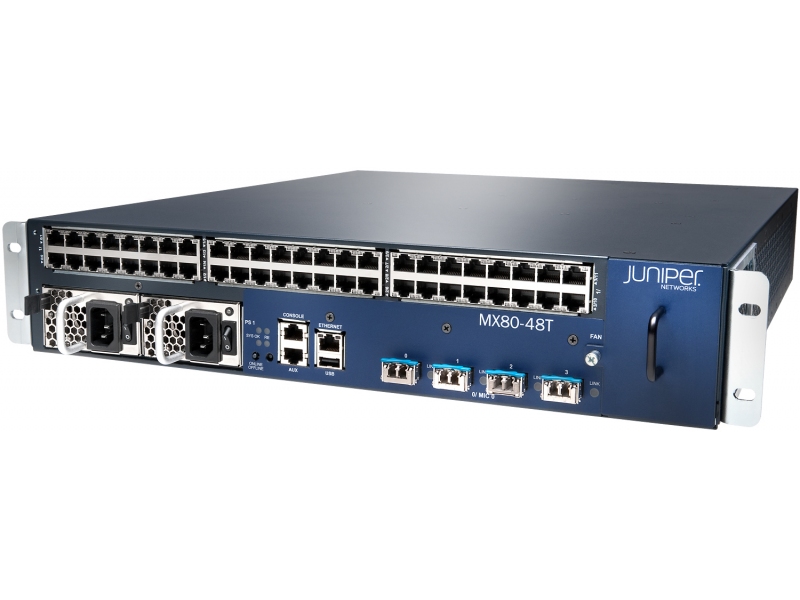

  • 1 expansion slot on the front panel (bundle includes: 1 card 48-Port 1GbE (RJ45));

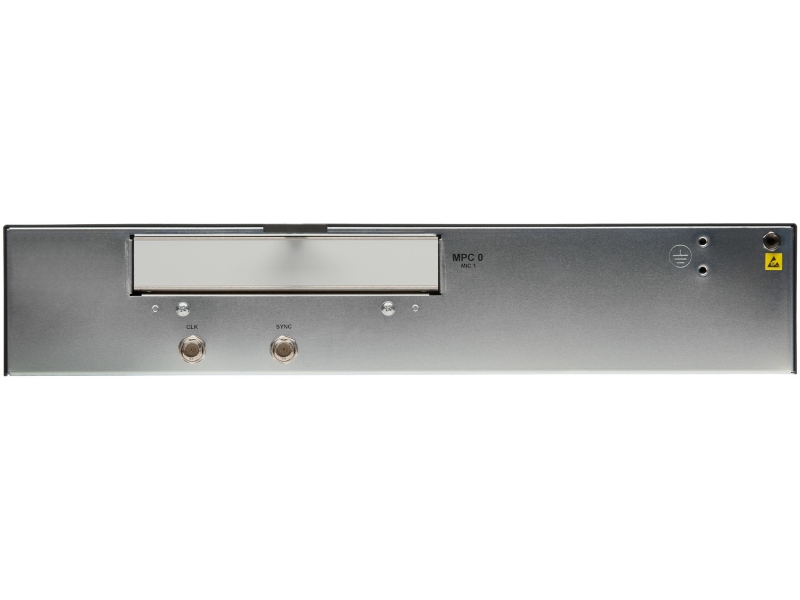

  • 1 expansion slot (MIC) on the rear panel;
  • 4-Port 10GbE (XFP) on the  front panel;
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port AUX (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB;
  • 1-Port Clock OUT (BNC) (10 MHz) on the rear panel;
  • 1-Port Sync OUT (BNC) (1 PPS) on the rear panel
Performance
Switching Capacity

80 Gb/s
Forwarding Rate

55 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 500,000 entries
IFL table

16,000 interfaces
Layer 3 features
Routing Table
Routing Table (RIB): 4M prefixes
Forwarding Table (FIB): 1M prefixes
IP Routing

Static Routes; BGP; IS-IS; OSPFv2
MPLS / VPN

MPLS; VPLS; BFD; GRE
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
BRAS: Supported
CGNAT: Supported
Packet Filtering: Supported
Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF
Environmental Conditions
Relative Humidity

5 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -40 VDC  to -72 VDC
Maximum power consumption
MX80-48T-AC: up to 376 W
MX80-48T-DC: up to 320 W
Acoustic noise

up to 70 dB
Dimensions (HxWxD)

87.6 (2U) x 445 х 596 mm

(3.45 (2U) x 17.52 x 23.46 in)
Maximum Weight

13.7 kg (30.2 lb)
Compatible expansion cards MIC

Model Number

Description

MS-MIC-16G

Multiservices MIC. Supports CGNAT, Firewall, IPSec
