Juniper MX960

Available to quote:

MX960BASE3-AC; MX960BASE-AC

MX960BASE3-AC-ECM; MX960BASE-AC-ECM

MX960BASE3-DC; MX960BASE-DC

MX960BASE3-DC-ECM; MX960BASE-DC-ECM

Request a Quote

SPECIFICATIONS

Interfaces

12 Service Cards (MPC) slots,
3 Control Cards (SCB) slots

Performance

Switching Capacity

9.92 Tbit/s (using SCBE2 Control Card)

Switching Capacity per slot

SCB:

120 Gb/s

SCBE:

160 Gb/s

SCBE2:

340 Gbit/s (with redundant fabric support)

480 Gbit/s (without redundant fabric support)

Layer 3 features

Routing Table

Routing Table (RIB):	15M prefixes
Forwarding Table (FIB):	1,8M prefixes

IP Routing

Static Routes; BGP; IS-IS; OSPFv2

MPLS / VPN

MPLS; VPLS; BFD; GRE

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
BRAS:	Supported
CGNAT:	Supported
Packet Filtering:	Supported

Management

Telnet; SNMP v1/v2/v3; SSH; XML; NETCONF

Environmental Conditions

Relative Humidity

5 to 90% (noncondensing)

Operating Temperature

0 to 40°C (32 to 104°F)

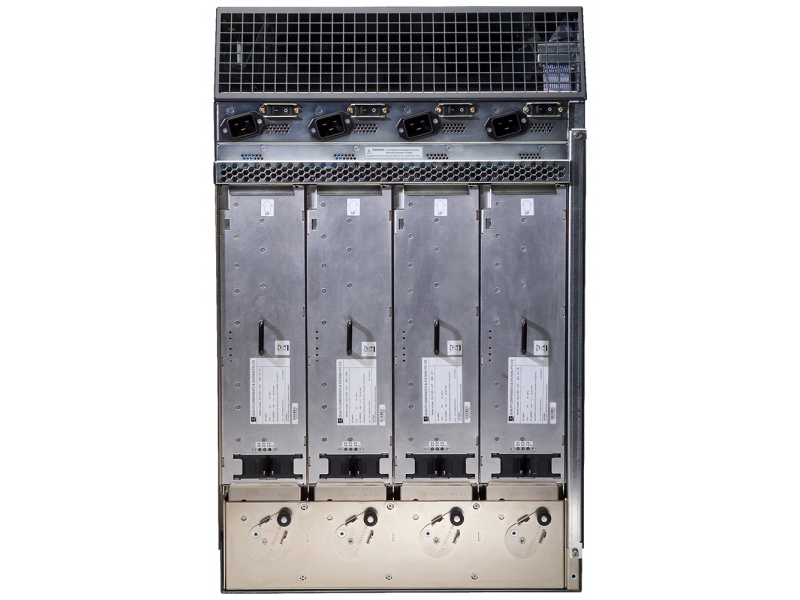

Power Supply

Power Supply Unit (PSU)

AC PSU:
Type:	Removable
Quantity:	4
Rated voltage range:	100 to 240 VAC, 50-60 Hz.

DC PSU:
Type:	Removable
Quantity:	4
Rated voltage range:	-40 to -72 VDC

Maximum power consumption

up to 6,300 W

Acoustic noise

up to 70 dB

Dimensions (HxWxD)

705 (16U) х 445 х 597 mm

(27.76 (16U) x 17.52 x 23.5 in)

Maximum Weight

151.6 kg (334.2 lb)

Compatible Control Cards SCB

Model Number	Description
SCB-MX960-BB:	Control Card for MX960
SCBE-MX-BB:	Enhanced Control Card for MX960
SCBE2-MX-BB:	New generation Control Card for MX960

Compatible Service Cards MPC

Model Number	Description
MX-MPC1-3D	2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features.
MX-MPC1-3D-Q	2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 128,000 queues
MX-MPC1-3D-Q-R-B	MPC1-3D-Q service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC1-3D-R-B	MPC1-3D service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC1E-3D	Enhanced card. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features.
MX-MPC1E-3D-Q	Enhanced card. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 128000 queues
MX-MPC1E-3D-Q-R-B	MPC1E-3D-Q service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC1E-3D-R-B	MPC1E-3D service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC2-3D	2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features
MX-MPC2-3D-EQ	2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 512,000 queues
MX-MPC2-3D-EQ-R-B	MPC2-3D-ЕQ service card bundle. Activated full scale L2/L2.5/L3 features.
MX-MPC2-3D-Q	2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 256,000 queues
MX-MPC2-3D-Q-R-B	MPC2-3D-Q service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC2-3D-R-B	MPC2-3D service card bundle. Activated full scale L2/L2.5/L3 features
MX-MPC2E-3D	Enhanced card. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features
MX-MPC2E-3D-EQ	Enhanced card. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 512,000 queues
MX-MPC2E-3D-EQ-R-B	MPC2Е-3D-ЕQ service card bundle. Activated full scale L2/L2.5/L3 features.
MX-MPC2E-3D-P	Enhanced card. 2 MIC slots. 1588v2 support. Activated full scale L2/L2.5 and reduced scale L3 features.
MX-MPC2E-3D-P-Q-B	MPC2E-3D-P service card bundle. Activated full scale L2/L2.5 and reduced scale L3 features, 1588v2, HQoS, 256,000 queues MPC2E-3D-P.
MX-MPC2E-3D-P-Q-R-B	MPC2E-3D-P service card bundle. Activated full scale L2/L2.5/L3 features, 1588v2, HQoS, 256,000 queues.
MX-MPC2E-3D-P-R-B	MPC2E-3D-P service card bundle. Activated full scale L2/L2.5/L3 features, 1588v2.
MX-MPC2E-3D-Q	Enhanced card. 2 MIC slots.Activated full scale L2/L2.5 and reduced scale L3 features. HQoS,256,000 queues.
MX-MPC2E-3D-Q-R-B	MPC2E-3D-Q service card bundle. Activated full scale L2/L2.5/L3 features.
MX-MPC2E-3D-R-B	MPC2E-3D service card bundle. Activated full scale L2/L2.5/L3 features.
MX-MPC2E-3D-NG	Next Generation MPC2E-3D service card with upgraded CPU and memory compairing to MPC1E and MPC2E. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 32,000 queues.
MX-MPC2E-3D-NG-IR-B	Next Generation MPC2E-3D service card bundle. Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC.
MX-MPC2E-3D-NG-R-B	Next Generation MPC2E-3D service card bundle. Activated full scale L2/L2.5/L3 L3VPN features.
MX-MPC2E-3D-NG-Q	Next Generation MPC2E-3D service card with upgraded CPU and memory compairing to MPC1E and MPC2E. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 512,000 queues.
MX-MPC2E-3D-NG-Q-IR-B	Next Generation MPC2E-3D service card bundle. Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC
MX-MPC2E-3D-NG-Q-R-B	Next Generation MPC2E-3D service card bundle. Activated full scale L2/L2.5/L3 features.
MX-MPC3E-3D	2 MIC slots. Support for 100G, 40G and 10G MIC cards. Activated L2.5 features.
MX-MPC3E-3D-R-B	MPC3E-3D service card bundle. Activated full scale L2/L3, L3VPN features.
MX-MPC3E-NG	Next Generation MPC3E-3D-NG service card with upgraded CPU and memory. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 32,000 queues.
MX-MPC3E-3D-NG-IR-B	Next Generation MPC3E-3D-NG service card bundle. 2 MIC slots. Activated full scale L2/L2.5/ L3 features and up to 16 L3VPNs per MPC. HQoS, 32,000 queues.
MX-MPC3E-3D-NG-R-B	Next Generation MPC3E-3D-NG service card bundle. 2 MIC slots. Activated full scale L2/L2.5/ L3 features and L3VPN per MPC. HQoS, 32,000 queues.
MX-MPC3E-3D-NG-Q	Next Generation MPC3E-3D-NG-Q service card with upgraded CPU and memory. 2 MIC slots. Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 512,000 queues.
MX-MPC3E-3D-NG-Q-IR-B	Next Generation MPC3E-3D-NG-Q service card bundle. 2 MIC slots. Activated full scale L2/L2.5/ L3 features and up to 16 L3VPNs per MPC. HQoS, 512,000 queues.
MX-MPC3E-3D-NG-Q-R-B	Next Generation MPC3E-3D-NG-Q service card bundle. 2 MIC slots. Activated full scale L2/L2.5/ L3 features. HQoS, 512,000 queues.
MX-MPC3E-16XGE-SFPP	16-Port 10GbE (SFP+). Activated L2/L2.5 features
MX-MPC3E-16XGE-SFPP-R-B	MX-MPC3E-16XGE-SFPP service card bundle.Activated full scale L2/L2.5/L3 features.
MX-MPC4E-3D-2CGE-8XGE	2-Port 100GbE (CFP) ports and 8 x 10GbE (SFP+) ports. Activated full scale L2/L2.5 and reduced scale L3 features
MX-MPC4E-3D-2CGE-8XGE-IRB	MX-MPC4E-3D-2CGE-8XGE service card bundle. 2 x 100GbE (CFP) ports and 8 x 10GbE (SFP+) ports. Activated full scale L2/L2.5/L3 features and 16 L3VPNs per MPC
MX-MPC4E-3D-2CGE8XGE-RB	2-Port 100GbE (CFP) and 8-port 10GbE (SFP+). Activated L2/L2.5/L3 features и L3VPN.
MX-MPC4E-3D-32XGE-SFPP	32-Port 10GbE (SFP+). Activated full scale L2/L2.5 and reduced scale L3 features
MX-MPC4E-3D-32XGE-IRB	MX-MPC4E-3D-32XGE service card bundle. 32 x 10GbE (SFP+) ports. Activated full scale L2/L2.5/L3 features and 16 L3VPNs per MPC.
MX-MPC4E-3D-32XGE-RB	MX-MPC4E-3D-32XGE service card bundle. 32 x 10GbE (SFP+) ports. Activated full scale L2/L2.5/L3 and L3VPN features.
MX-MPC5E-100G10G	2-Port 100GbE (CFP2) and 4-port 10GbE (SFP+). Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 32,000 queues can be activated by optional license.
MX-MPC5E-100G10G-IRB	MX-MPC5E-100G10G service card bundle. 2-Port 100GbE (CFP2) and 4-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC. HQoS, 32,000 queues can be activated by optional license.
MX-MPC5E-100G10G-RB	MX-MPC5E-100G10G service card bundle. 2-Port 100GbE (CFP2) and 4-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 and L3VPNs features . HQoS, 32,000 queues can be activated by optional license.
MX-MPC5E-40G10G	6-Port 40GbE (QSFP+) or 24-port 10GbE (SFP+). Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 32,000 queues can be activated by optional license.
MX-MPC5E-40G10G-IRB	MX-MPC5E-40G10G service card bundle. 6-Port 40GbE (QSFP+) or 24-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC. HQoS, 32,000 queues can be activated by optional license.
MX-MPC5E-40G10G-RB	MX-MPC5E-40G10G service card bundle. 6-Port 40GbE (QSFP+) or 24-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 and L3VPN features. HQoS, 32,000 queues can be activated by optional license.
MX-MPC5EQ-100G10G	2-Port 100GbE (CFP2) and 4-Port 10GbE (SFP+). Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 1M queues and 128,000 sessions.
MX-MPC5EQ-100G10G-IRB	MX-MPC5EQ-100G10G service card bundle. 2-Port 100GbE (CFP2) and 4-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC. HQoS, 1M queues and 128,000 sessions.
MX-MPC5EQ-100G10G-RB	MX-MPC5EQ-100G10G service card bundle. 2-Port 100GbE (CFP2) and 4-port 10GbE (SFP+). Activated full scale L2/L2.5/L3 and L3VPN features. HQoS, 1,000,000 queues and 128,000 sessions.
MX-MPC5EQ-40G10G	6-Port 40GbE (QSFP+) or 24-Port 10GbE (SFP+). Activated full scale L2/L2.5 and reduced scale L3 features. HQoS, 1,000,000 queues and 128,000 sessions.
MX-MPC5EQ-40G10G-IRB	MX-MPC5EQ-40G10G service card bundle. 6-Port 40GbE (QSFP+) or 24-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 features and up to 16 L3VPNs per MPC. HQoS, 1M queues and 128,000 sessions.
MX-MPC5EQ-40G10G-RB	MX-MPC5EQ-40G10G service card bundle. 6-Port 40GbE (QSFP+) or 24-Port 10GbE (SFP+). Activated full scale L2/L2.5/L3 and L3VPN features. HQoS, 1,000,000 queues and 128,000 sessions.
MS-MPC-128	Multiservices Card. Support CGNAT, Firwall, DPI

Compatible MIC Cards

Model Number	Description
MIC-3D-8OC3OC12-4OC48	Multirate 8-Port non-channelized OC3-OC12 / 4-port non-channelized OC48
MIC-3D-4OC3OC12-1OC48	4-Port non-channelized OC3-OC12 / 1-Port non-channelized OC48
MIC-3D-4CHOC3-2CHOC12	4-Port channelized OC3 / 2-Port channelized OC12 (down to DS0)
MIC-3D-8CHOC3-4CHOC12	High-density multi-rate MIC. 8-Port channelized OC3 / 4-Port channelized OC12 (down to DS0)
MIC-3D-8DS3-E3	8-Port non-channelized DS3 / non-channelized E3, 75 ohm mini SMB
MIC-3D-8CHDS3-E3-B	8-Port channelized DS3 (down to DS0) / non-channelized E3 MIC, 75 ohm mini SMB
MIC-3D-8OC3-2OC12-ATM	Multirate 8-Port non-channelized ATM OC3/STM1 or 2-Port non-channelized OC12/STM4 ATM
MIC-3D-4COC3-1COC12-CE	Multirate circuit emulation MIC. 4-Port channelized OC3 / STM1 (to DS0) or 1-port channelized OC12/STM4 (to DS0)
MS-MIC-16G	Multiservices MIC. Supports CGNAT, Firewall, IPSec
MIC3-3D-20GE-SFP	20-Port 100/1000MbE (SFP)
MIC-3D-20GE-SFP-E	20-Port 100/1000MbE (SFP). Environmentally hardened for 0 to 55°C (32 to 131°F) operating temperatures
MIC-3D-20GE-SFP-EH	20-Port 100/1000MbE (SFP). Environmentally hardened for -40 to +65°C (-40 to +149°F) operating temperatures
MIC-3D-2XGE-XFP	2-Port 10GbE (XFP)
MIC-3D-4XGE-XFP	4-Port 10GbE (XFP)
MIC-3D-40GE-TX	40-Port 10/100/1000MbE (RJ45)
MIC3-3D-10ХGE-SFPP	10-Port 10GbE (SFP+)
MIC3-3D-1x100GE-CFP	1-Port 100GbE (CFP)
MIC3-3D-1x100GE-CXP	1-Port 100GbE (CXP)
MIC3-3D-2x40GE-QSFPP	2-Port 40GbE (QSFP+)
