| External interfaces | |
|
| Serial interfaces: |
1 |
| Videointerfaces: |
2-Port VGA |
| Expansion slots: |
- 1 slot PCIe x16;
- 1 slot PCIe x8
|
| Network interfaces: |
2-Port 10/100/1000MbE (RJ45) |
| USB ports: |
- 2-Port USB (front panel);
- 2-Port USB (rear panel);
- 1-Port USB (internal)
|
|
| CPU | |
|
| Quantity: |
1 |
| Model: |
Intel Xeon E3-1200 v6 series
|
|
| Memory | |
|
| Type: |
DDR4 UDIMM |
| Number of slots: |
4 |
| Maximum RAM |
64 GB (4 x 16 GB) |
|
| Storage | |
|
| Chassis with 2 HDD 3.5": |
- up to 16 TB (2 x 8 TB SATA, NL SAS);
- up to 3.6 TB (2 x 1.2 TB SAS);
- up to 7.68 TB (2 x 3.84 TB SSD)
|

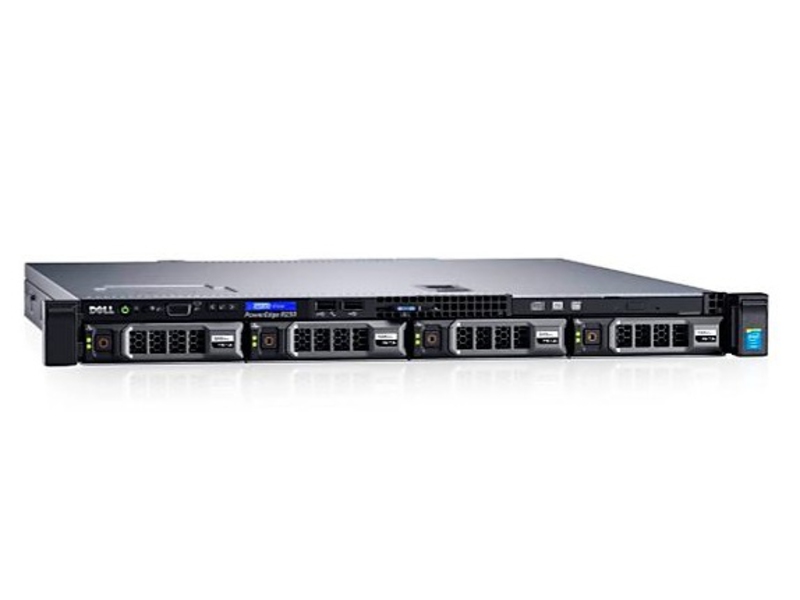

| Chassis with 4 HDD 2.5" / 3.5": |
- up to 32 TB (4 x 8 TB SATA, NL SAS);
- up to 7.2 TB (2 x 1.8 TB SAS);
- up to 15.36 TB (2 x 3.84 TB SSD)
|
|
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | 10 to 35°C (50 to 95°F)
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
1 x 250 W |
| DC PSU: |
Not supported |
|
| Dimensions (HxWxD) | |
| 42.8 (1U) x 434.0 x 495.4 mm
(1.67 (1U) x 17.09 x 19.5 in)
|
| Maximum Weight | |
| 10.6 kg (20.96 lb) |
