| External interfaces | |
|
| Serial interfaces: |
1 |
| Videointerfaces: |
2-Port VGA |
| Expansion slots: |
3 slots PCIe 3.0 |
| Network interfaces: |
1 network card.
Supported interfaces:
- 4-Port 10/100/1000MbE (RJ45);
- 2-Port 10/100/1000MbE (RJ45);
- 2-Port 100M/1/10GbE (SFP/SFP+)
|
| USB ports: |
- 2-Port USB (front panel);
- 2-Port USB (rear panel);
- 1-Port USB (internal)
|
|
| CPU | |
|
| Quantity: |
2 |
| Model: |
Intel Xeon E5-2600 v4 series
|
|
| Memory | |
|
| Type: |
DDR4 RDIMM, LRDIMM |
| Number of slots: |
24 |
| Maximum capacity LRDIMM: |
3 TB (24 x 128 GB) |
| Maximum capacity RDIMM: |
768 GB (24 x 32 GB) |
|
| Storage | |
|

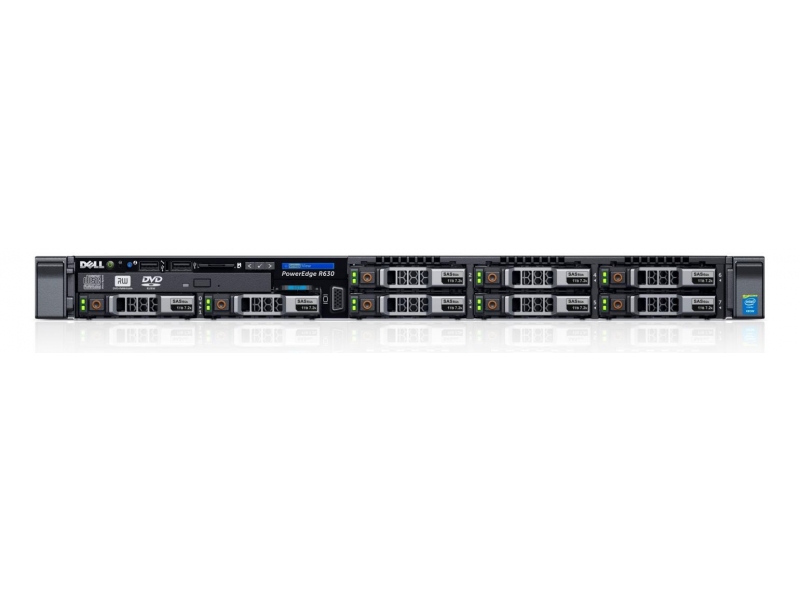

| Chassis with 8 HDD 2.5": |
- up to 16 TB (8 x 2 TB NL SAS);
- up to 32 TB (8 x 4 TB SATA);
- up to 14.4 TB (8 x 1.8 TB SAS);
- up to 25.6 TB (8 x 3.2 TB SSD)
|

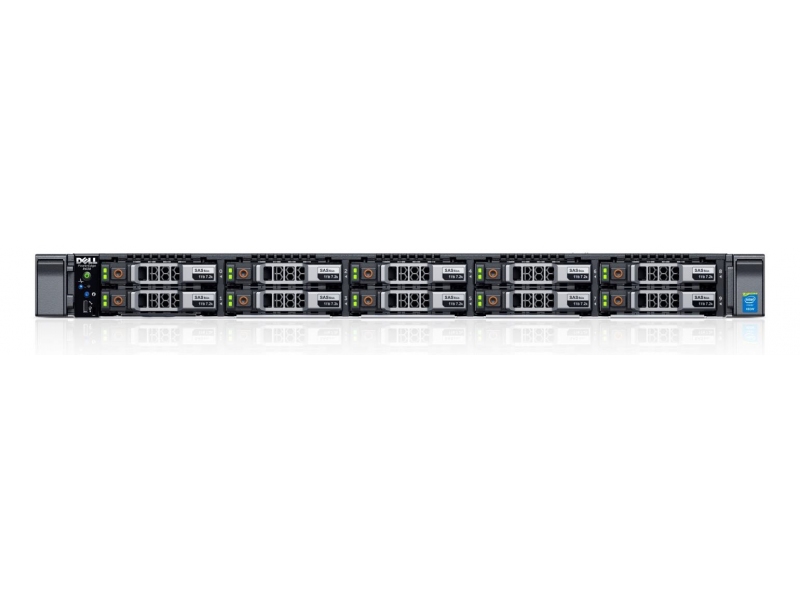

| Chassis with 10 HDD 2.5": |
- up to 20 TB (10 x 2 TB NL SAS);
- up to 40 TB (10 x 4 TB SATA);
- up to 18 TB (10 x 1.8 TB SAS);
- up to 32 TB (10 x 3.2 TB SSD)
|

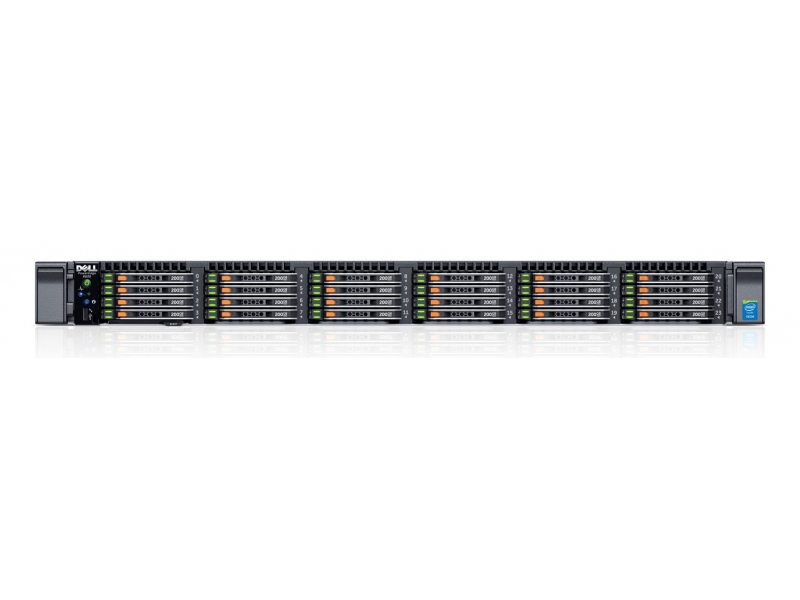

| Chassis with 24 HDD 1.8": |
- up to 11.52 TB (24 x 480 GB SSD)
|
|
| Environmental Conditions | |
| Relative Humidity | 5 to 95% |
| Operating Temperature | 10 to 35°C (50 to 95°F)
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
- 2 x 495 W;
- 2 x 750 W;
- 2 x 1100 W
|
| DC PSU: |
|
|
| Dimensions (HxWxD) | |
| 42.8 (1U) x 482.3 х 700.5 mm
(1.68 (1U) x 18.98 x 27.57 in)
|
| Maximum Weight |
|
|
| Chassis with 8 HDD: |
16.9 kg (37.26 lb) |
| Chassis with 10 HDD: |
18.5 kg (40.79 lb) |
| Chassis with 24 HDD: |
17.4 kg (38.36 lb) |
|
