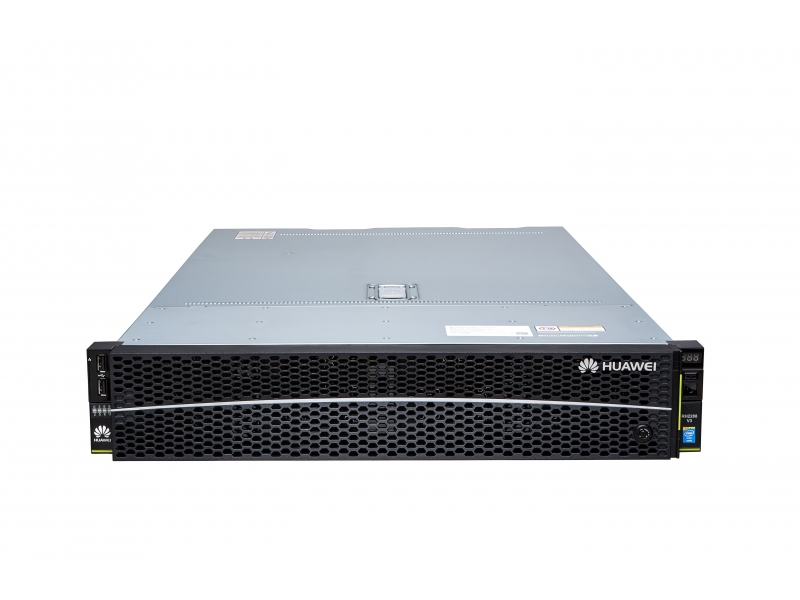

Huawei FusionServer RH2288H V3

Download FusionServer RH2288H V3 Datasheet (eng)Download FusionServer RH2288H V3 Technical Presentation (eng)

Available to quote:

FusionServer RH2288H V3

Request a Quote
SPECIFICATIONS
External interfaces
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots:

8 slots PCIe
Network interfaces:

1 network card.

Supported interfaces:

  • 2-Port 10/100/1000MbE (RJ45);
  • 4-Port 10/100/1000MbE (RJ45);
  • 2-Port 10GbE (RJ45);
  • 2-Port 10GbE (SFP+)
USB ports:
  • 2-Port USB 2.0;
  • 2-Port USB 3.0
SD Card slots:

2 slots for SD card
Other ports:

2 miniSSD (SATADOM)
CPU
Quantity: 1 or 2
Model: Intel Xeon E5-2600 V3/V4 series
Memory
Type: DDR4 RDIMM / LRDIMM
Number of slots: 24
Maximum capacity: 1.5 TB (24 x 64 GB)
Storage
Chassis with 8 HDD 3.5":
  • up to 14.4 TB (8 x 1.8 TB SAS);
  • up to 64 TB (8 x 8 TB NL SAS);
  • up to 64 TB (8 x 8 TB SATA);
  • up to 12.8 TB (8 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD

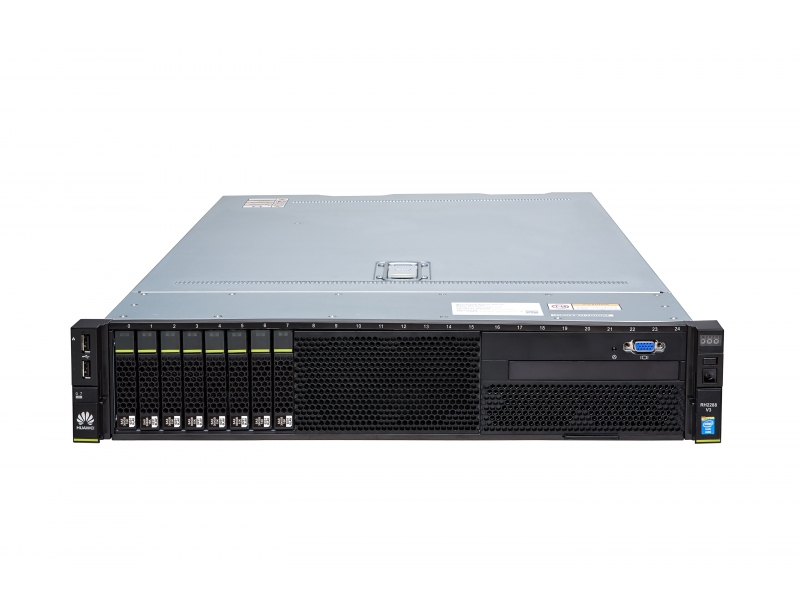

Chassis with 8 HDD 2.5":
  • up to 14.4 TB (8 x 1.8 TB SAS);
  • up to 16 TB (8 x 2 TB NL SAS);
  • up to 64 TB (8 x 8 TB SATA);
  • up to 12.8 TB (8 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD

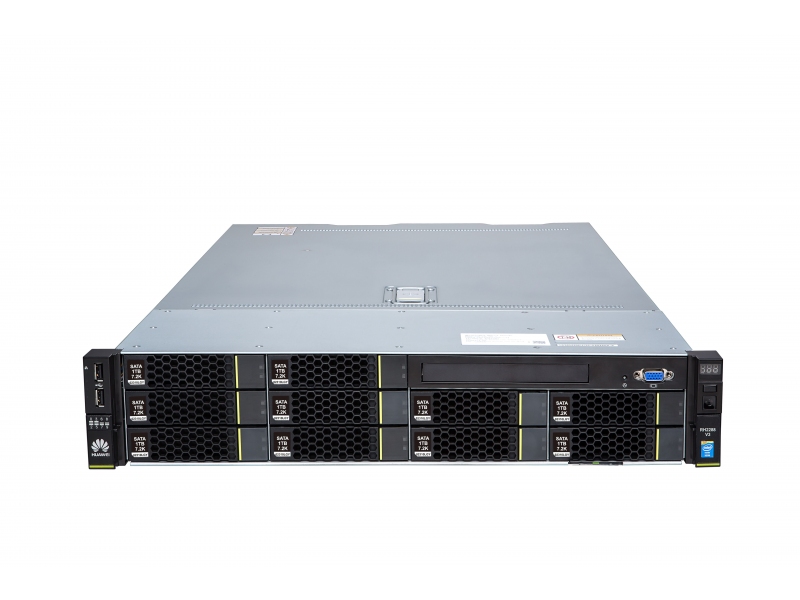

Chassis with 8 + 4 HDD 3.5":
  • up to 14.4 TB (8 x 1.8 TB SAS);
  • up to 16 TB (8 x 2 TB NL SAS);
  • up to 64 TB (8 x 8 TB SATA);
  • up to 6.4 TB (4 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD

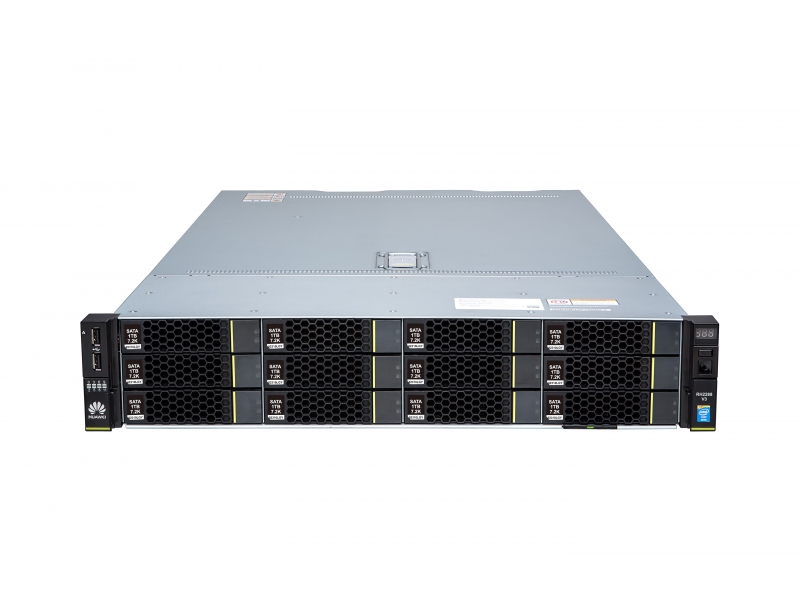

Chassis with 12 HDD 3.5":
  • up to 21.6 TB (12 x 1.8 TB SAS);
  • up to 24 TB (12 x 2 TB NL SAS);
  • up to 96 TB (12 x 8 TB SATA);
  • up to 19.2 TB (12 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD
Chassis with 24 HDD 2.5":
  • up to 43.2 TB (24 x 1.8TB SAS);
  • up to 48 TB (24 x 2 TB NL SAS);
  • up to 192 TB (24 x 8 TB SATA);
  • up to 38.4 TB (24 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD

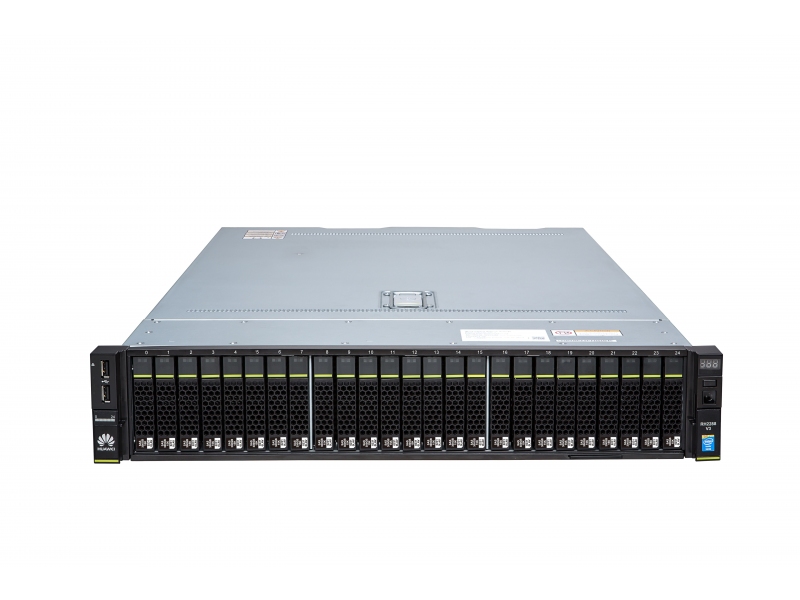

Chassis with 25 HDD 2.5":
  • up to 45 TB (25 x 1.8 TB SAS);
  • up to 50 TB (25 x 2 TB NL SAS);
  • up to 200 TB (25 x 8 TB SATA);
  • up to 40 TB (25 x 1.6 TB SSD)
Optional: 4 x 3.5" / 2.5" SAS / SATA / SSD
Environmental Conditions
Relative Humidity

10 to 90%
Operating Temperature

5 to 45°C (41 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
  • 2 x 460 W;
  • 2 x 750 W;
  • 2 x 1,200 W
DC PSU:
  • 4 x 800 W
Dimensions (HxWxD)
Chassis with 3.5" HDD:

86.1 (2U) x 447 х 748 mm

(3.44 (2U) x 17.60 x 29.45 in)
Chassis with 2.5" HDD:

86.1 (2U) x 447 х 708 mm

(3.44 (2U) x 17.60 x 27.87 in)
Maximum Weight

Chassis with 8 x 2.5" front HDD:

 27 kg (59.54 lb)
Chassis with 8 x 3.5" or 24 x 2.5" front HDD: 29 kg (63.95 lb)
Chassis with 12 x 3.5" or 25 x 2.5" front HDD: 30 kg (66.15 lb)
