Huawei FusionServer X6000 High-Density Server

Download FusionServer X6000 Datasheet (eng)Download FusionServer X6000 Technical Presentation (eng)

Available to quote:

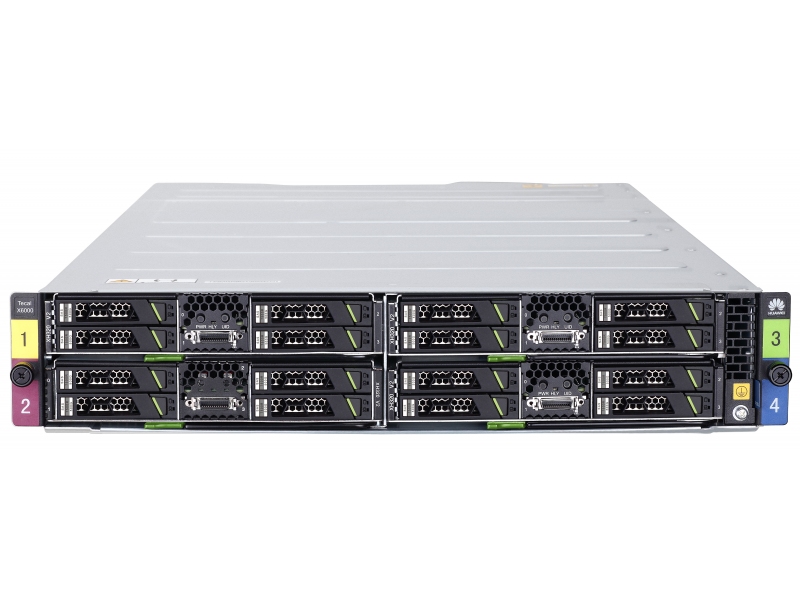

FusionServer X6000 High-Density Server

FusionServer XH310 V3 Node

FusionServer XH320 V2 Node

FusionServer XH621 V2 Node

EOS for FusionServer XH321 V2 Node:

http://www.huawei.com/en/products-lifecycle/notice?sysNumber=5824170&docId=G01895627_PMDEN_12552&path=undefined

Request a Quote
SPECIFICATIONS
Chassis interfaces
Serial interfaces: Not supported
Videointerfaces: Not supported
Expansion slots: 4 slots PCIe x8 of half-height half-length
Network interfaces:

4-Port 10/100/1000MbE (RJ45) (Rear panel management)

4-Port 10/100/1000MbE (RJ45) (Rear panel)
USB ports: Not supported
Supported Nodes
Huawei XH310 V3 Server Node
Form factor: Half-width server node
CPU 1 (Intel Xeon E5-1200 v3/v4 Refresh series)
Memory: 4 x DDR3 UDIMM
Storage: 1 x 3.5" SATA HDD
Network interfaces: 2-Port 10/100/1000MbE (RJ45)
HUAWEI XH320 V2 Server Node
Form factor: Half-width server node
CPU 1 or 2 (Intel Xeon E5-2400 or E5-2400 v2 series)
Memory: 12 x DDR3 DIMM
Storage: 4 x 2.5" SAS/SATA/SSD HDD hot-swappable
Expansion slots: 2 x PCIe slots
Network interfaces: 2-Port 10/100/1000MbE (RJ45)
HUAWEI XH321 V2 Server Node
Form factor: 1U half-width server node
CPU  1 or 2 (Intel Xeon E5-2600 or E5-2600 v2 series)
Memory: 16 x DDR3 DIMM
Storage: 4 x 2.5" SAS/SATA/SSD HDD hot-swappable
Expansion slots: 5 x PCIe slots
Network interfaces: 2-Port 10/100/1000MbE (RJ45)

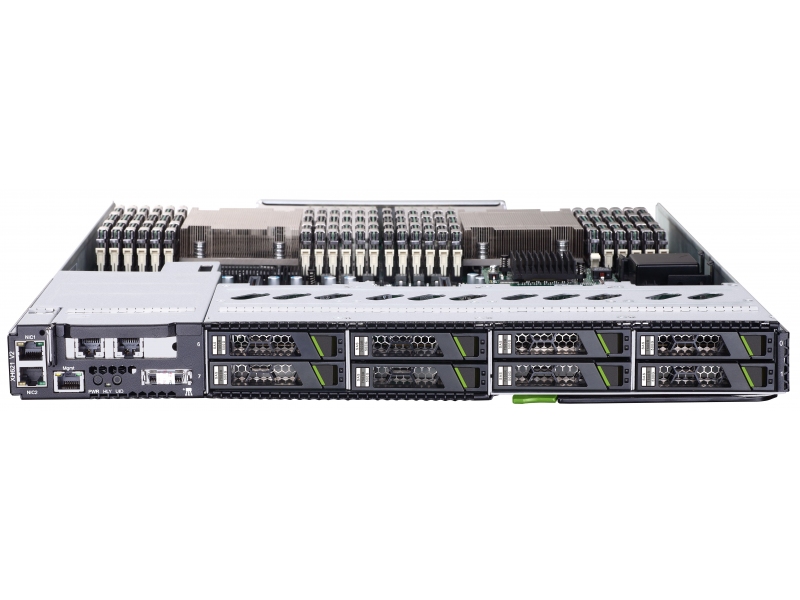

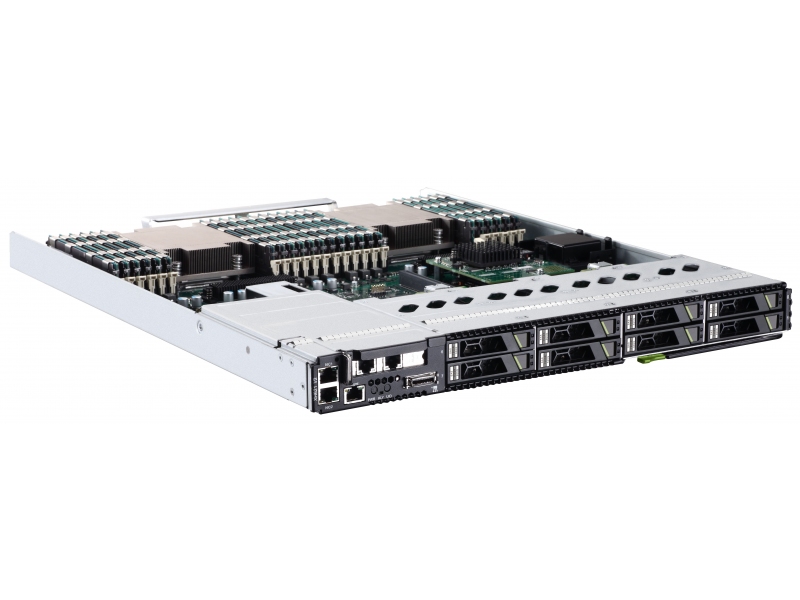

HUAWEI XH621 V2 Server Node
Form factor: Full-width server node
CPU 1 or 2 (Intel Xeon E5-2600 or E5-2600 v2 series)
Memory: 24 x DDR3 DIMM
Storage: 8 x 2.5" SAS/SATA/SSD HDD hot-swappable
Expansion slots: 4 x PCIe slots
Network interfaces: 2-Port 10/100/1000MbE (RJ45)
Environmental Conditions
Relative Humidity

9 to 90 %
Operating Temperature

10 to 35°C (50 to 95°F)
Power Supply
Power Supply Unit (PSU)
AC PSU: 2 x 750 W
2 x 800 W
2 x 1,200 W
DC PSU: 4 x 800 W
Dimensions (HxWxD)
X6000 Chassis:

87.5 (2U) x 447 х 760 mm

(3.44 (2U) x 17.60 x 29.92 in)
XH310 V3 Node:

41 (1U) x 210 х 540 mm

(1.61 (4U) x 8.27 x 21.26 in)
XH320 V2 Node:

41 (1U) x 210 х 540 mm

(1.61 (1U) x 8.27 x 21.26 in)
XH321 V2 Node:

41 (1U) x 210 х 540 mm

(1.61 (4U) x 8.27 x 21.26 in)
XH621 V2 Node:

41 mm (1U) x 423 mm х 540 mm

(1.61 (1U) x 16.65 x 21.26 in)
Maximum Weight
Chassis fully-configured with XH310 V3: 27.2 kg (59.97 lb)
Chassis fully-configured with XH320 V2:

30.8 kg (67.90 lb)
Chassis fully-configured with XH321 V2:

34.8 kg (76.72 lb)
Chassis fully-configured with XH621 V2:

32 kg (70.55 lb)
