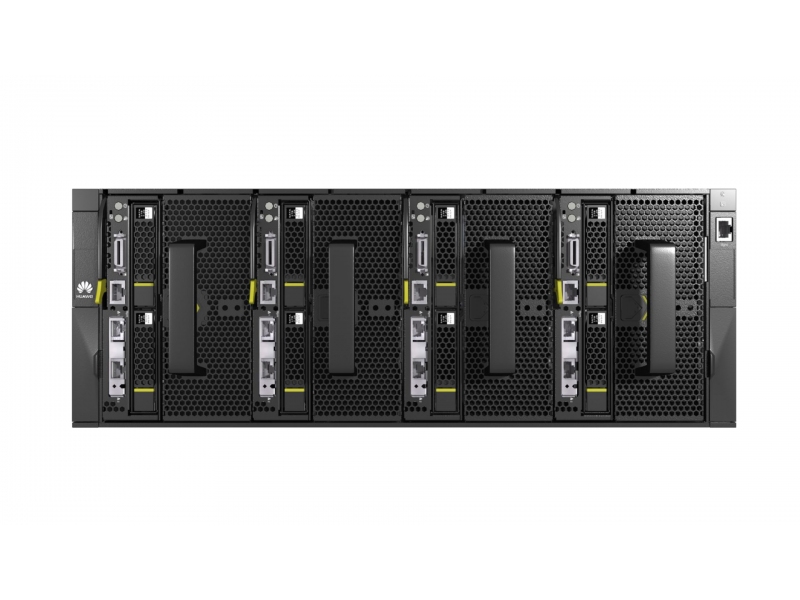

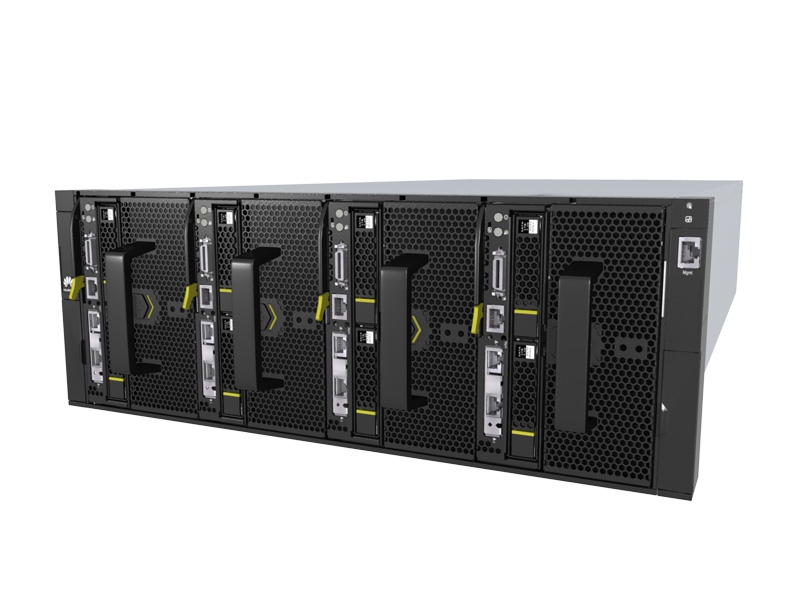

Huawei FusionServer X6800 Data Center Server

Download FusionServer X6800 Datasheet (eng)Download FusionServer X6800 Technical Presentation (eng)Download FusionServer XH620 V3 Node Technical Presentation (eng)Download FusionServer XH622 V3 Node Technical Presentation (eng)Download FusionServer XH628 V3 Node Technical Presentation (eng)

Available to quote:

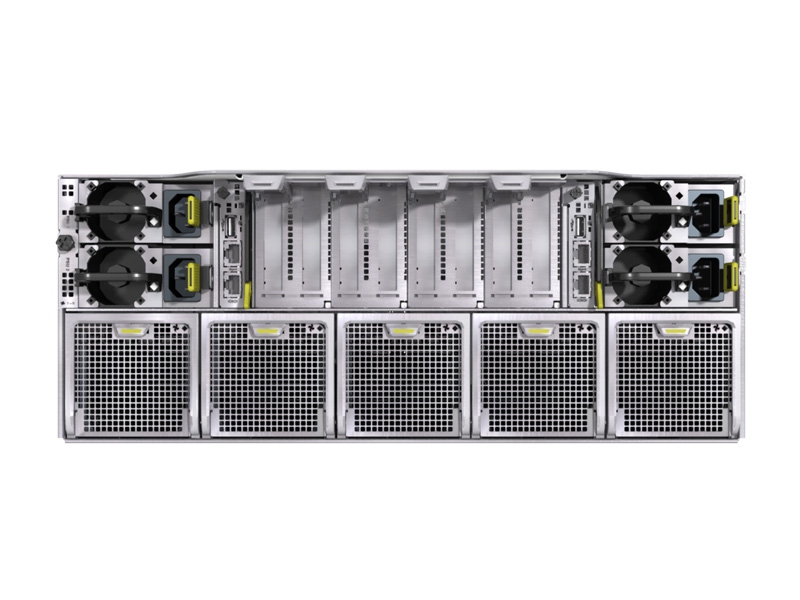

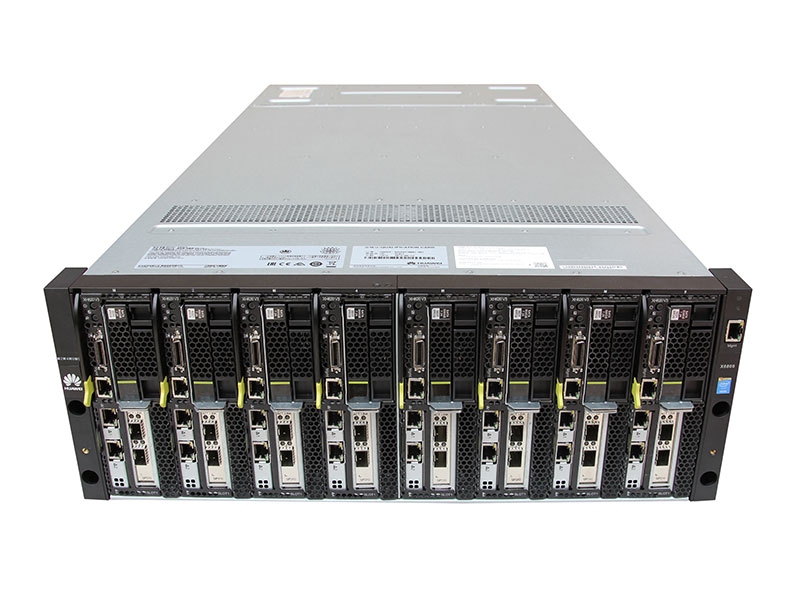

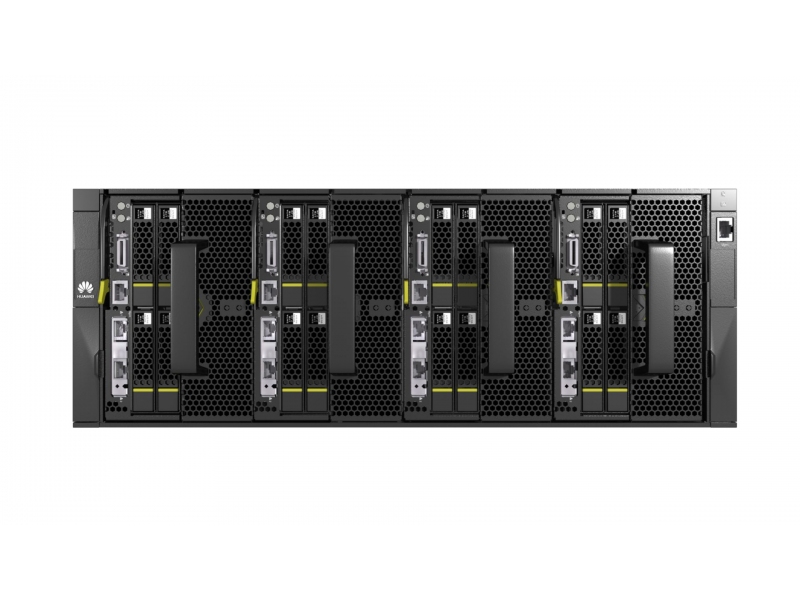

FusionServer X6800 Data Center Server

FusionServer XH628 V3 Node

FusionServer XH622 V3 Node

FusionServer XH620 V3 Node

Request a Quote
SPECIFICATIONS
Chassis interfaces
Serial interfaces: 1
Videointerfaces: Not supported
Expansion slots: 8 slots PCIe x8
Network interfaces:

1-Port 10/100/1000MbE (RJ45) (Front panel management);

1-Port 10/100/1000MbE (RJ45) (Rear panel management)
USB ports: Not supported
Supported Nodes

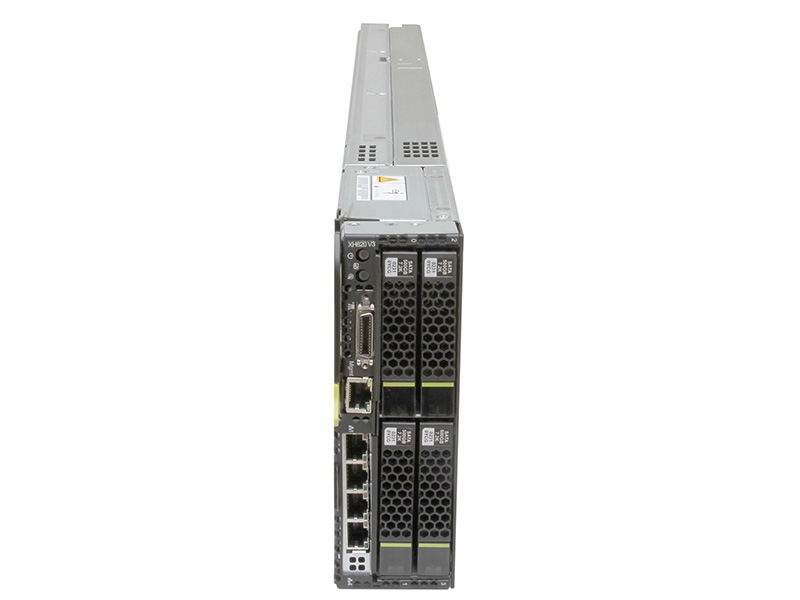

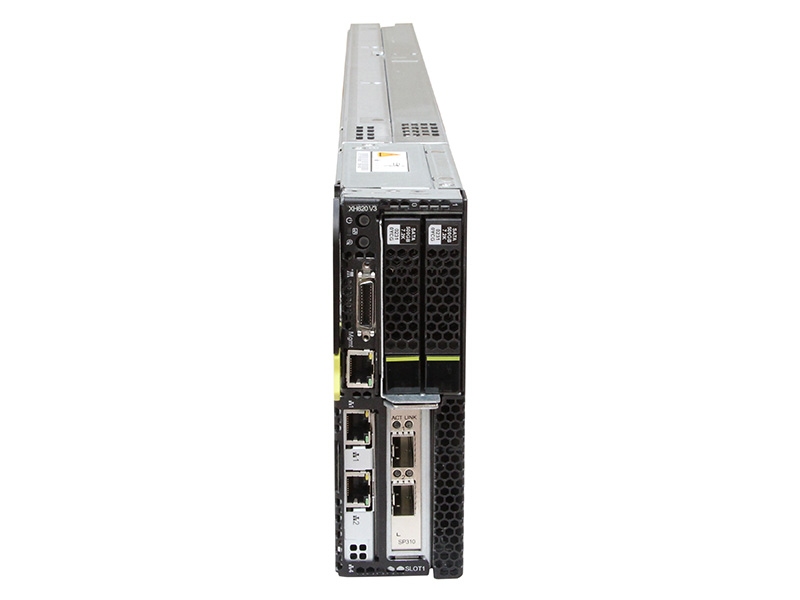

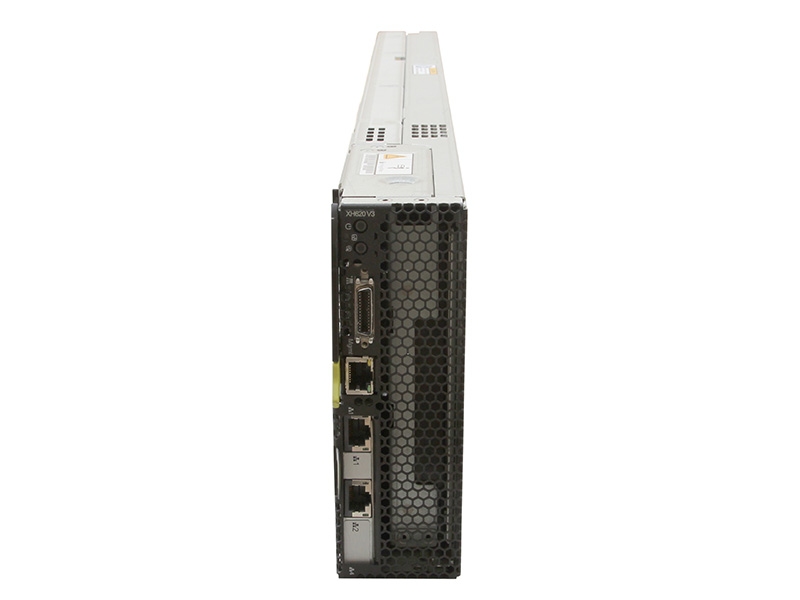

Huawei FusionServer XH620 V3 Node
Form factor: 1 slot
CPU 1 or 2 (Intel Xeon E5-2600 v3/v4 processors)
Memory: 16 DDR4 DIMM slots
Storage:
  • 2 x 2.5" SAS/SATA/SSD HDD or 2 x 3.5" SAS/SATA HDD;
  • 4 x 2.5" SAS/SATA/SSD HDD or 2 x 3.5" SAS/SATA HDD;
  • 2 miniSSD (SATADOM);
  • 1 USB flash drive
Expansion slots:
  • 3 x PCIe slots
Network interfaces:
  • 2-Port 10/100/1000MbE (RJ45);
  • 4-Port 10/100/1000MbE (RJ45);
  • 2-Port 10GbE (RJ45);
  • 2-Port 10GbE (SFP+);
  • 2-Port 10/100/1000MbE (RJ45) + 2-Port 10G BASE-T (SFP+);
  • 2-Port 56GE IB (QSFP+)

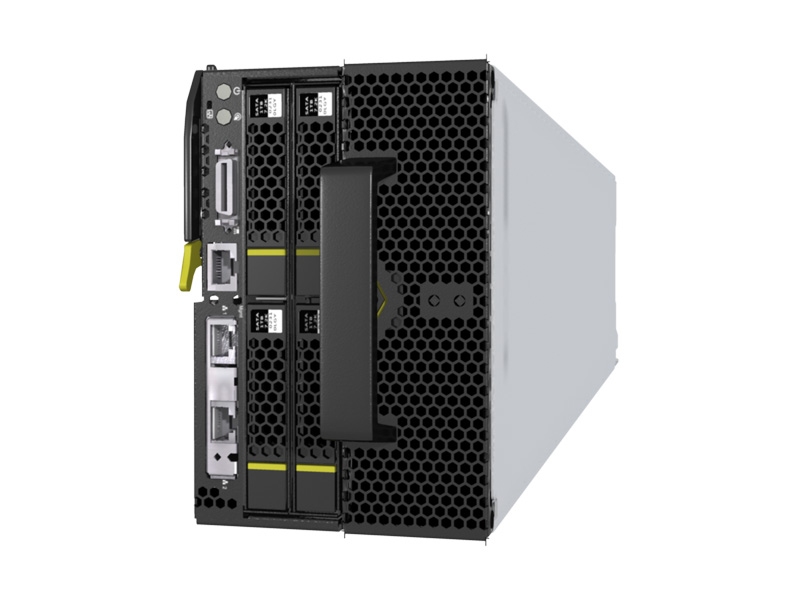

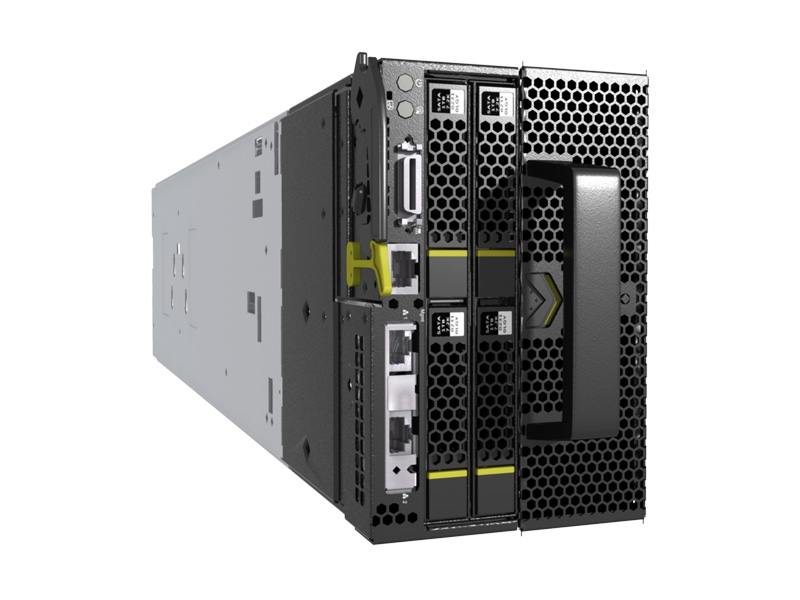

HUAWEI FusionServer XH622 V3 Node
Form factor: 2 slots
CPU 1 or 2 (Intel Xeon E5-2600 v3/v4 processors)
Memory: 16 DDR4 DIMM slots
Storage: 4 x 2.5" SAS/SATA/SSD HDD
2 miniSSD (SATADOM)
1 USB flash drive
Expansion slots: 5 x PCIe slots
Network interfaces:
  • 2-Port 10/100/1000MbE (RJ45);
  • 4-Port 10/100/1000MbE (RJ45);
  • 2-Port 10GbE (RJ45);
  • 2-Port 10GbE (SFP+);
  • 2-Port 10/100/1000MbE (RJ45) + 2-Port 10G BASE-T (SFP+);
  • 2-port 56GE IB (QSFP+)

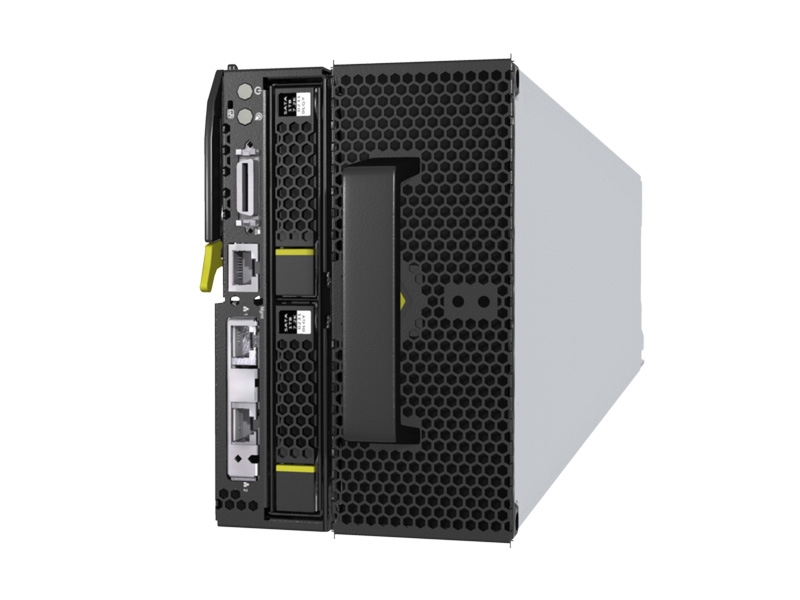

HUAWEI FusionServer XH628 V3 Node
Form factor: 2 slots
CPU 1 or 2 (Intel Xeon E5-2600 v3/v4 processors)
Memory: 16 DDR4 DIMM slots
Storage: 12 x 3.5" SAS/SATA HDD or 2.5" SAS/SATA/SSD HDD;
2 x 2.5" SATA/SSD HDD (optional);
2 miniSSD (SATADOM);
1 USB flash drive
Expansion slots: 5 x PCIe slots
Network interfaces:
  • 2-Port 10/100/1000MbE (RJ45);
  • 4-Port 10/100/1000MbE (RJ45);
  • 2-Port 10GbE (RJ45);
  • 2-Port 10GbE (SFP+);
  • 2-Port 10/100/1000MbE (RJ45) + 2-Port 10G BASE-T (SFP+);
  • 2-Port 56GE IB (QSFP+)
Environmental Conditions
Relative Humidity

10 to 90%
Operating Temperature

5 to 40°C (41 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
  • 4 x 750 W;
  • 4 x 1,200 W;
  • 4 x 1,500 W
DC SPU:
  • 4 x 1,200 W;
  • 4 x 800 W
Dimensions (HxWxD)
X6800 Chassis:

175 (4U) x 448 х 898 mm

(6.89 (4U) x 17.64 x 35.35 in)
XH620 V3 Node:

166 (4U) x 54 х 670 mm

(6.53 (4U) x 2.13 x 26.38 in)
XH622 V3 Node:

166 (4U) x 109 х 670 mm

(6.53 (4U) x 4.29 x 26.38 in)
XH628 V3 Node:

166 (4U) x 109 х 745 mm

(6.53 (4U) x 4.29 x 29.3 in)
Maximum Weight
Empty chassis: 29 kg (63.95 lb)
Chassis fully-configured with XH620 V3:

77 kg (169.79 lb)
Chassis fully-configured with XH622 V3:

69 kg (152.15 lb)
Chassis fully-configured with XH628 V3:

109 kg (240.35 lb)
