| Interfaces | |
|

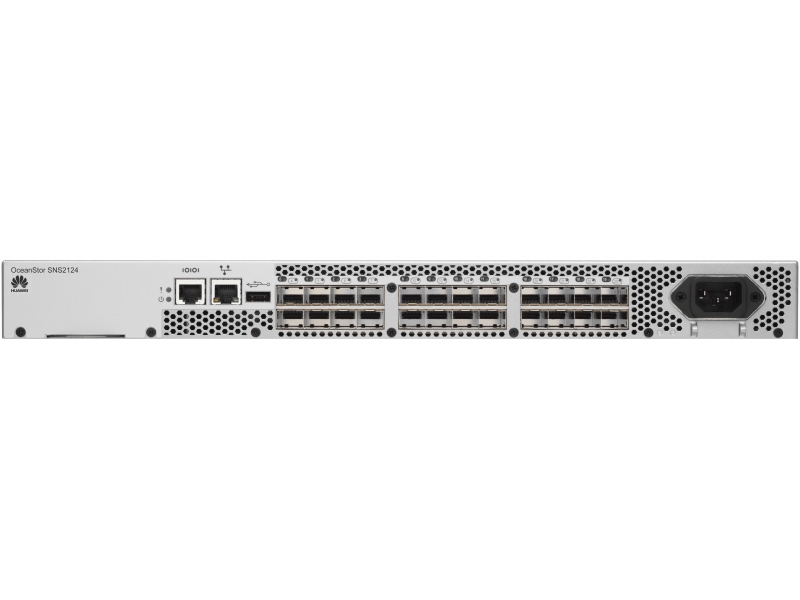

| SNS2124: |
- 24-Port service;
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB.
|

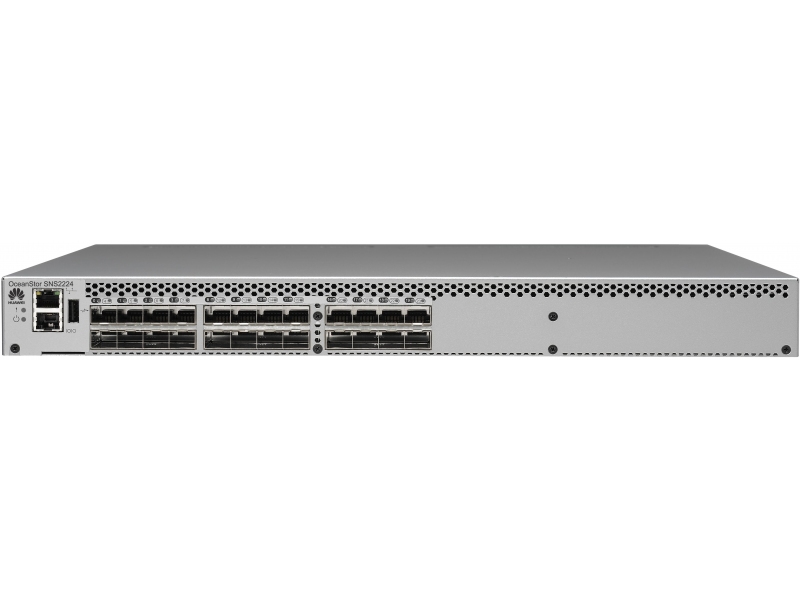

| SNS2224: |
- 24-Port service;
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB.
|

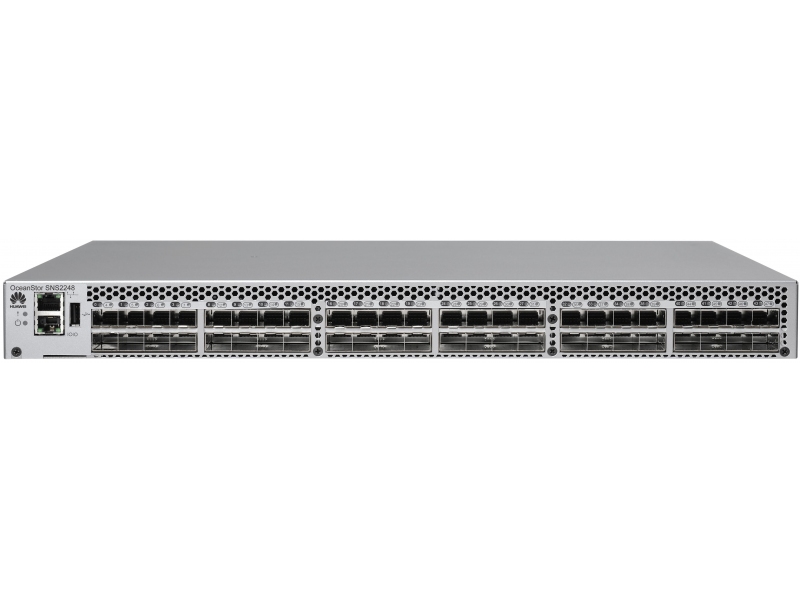

| SNS2248: |
- 48-Port service;
- 1-Port out-of-band management 10/100MbE port (RJ45);
- 1-Port console (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| SNS2124: |
384 Gb/s |
| SNS2224: |
768 Gb/s |
| SNS2248: |
1536 Gb/s |
|
| Supported Port Types | |
|
| SNS2124: |
FL_Port, F_Port, M_Port, E_Port, U_Port, N_Port |
| SNS2224: |
D_Port, E_Port, F_Port, M_Port, U_Port |
| SNS2248: |
D_Port, E_Port, EX_Port, F_Port, M_Port, U_Port |
|
| Port rate | |
|
| SNS2124: |
1, 2, 4, 8 Gb/s |
| SNS2224: |
1, 2, 4, 8, 16 Gb/s |
| SNS2248: |
1, 2, 4, 8, 16 Gb/s |
|
| Management | |
| Telnet; Web-management; SNMP v1/v2/v3; Syslog |
| Environmental Conditions | |
| Relative Humidity | 10 to 85% (non-condensing) |
| Operating Temperature |
| SNS2124: |
-10 to 40°C (14 to 104 °F)
|
| SNS2224: |
0 to 40°C (32 to 104°F)
|
| SNS2248: |
0 to 40°C (32 to 104°F)
|
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
|
| SNS2124 |
Built-in |

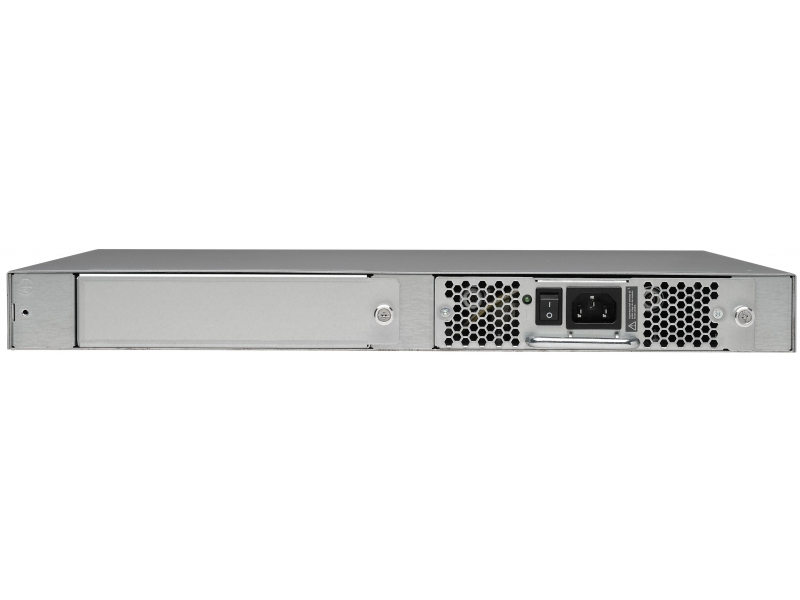

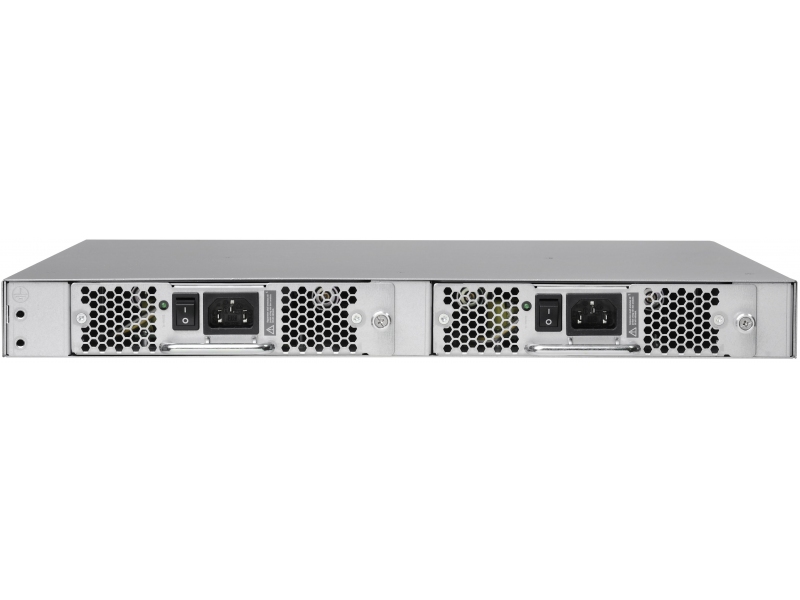

| SNS2224; SNS2248 |
Removable |
| Quantity: |
|
| SNS2124 |
1 |
| SNS2224; SNS2248 |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
| Not supported |
|
|
| Maximum power consumption | |
|
| SNS2124: |
up to 57 W |
| SNS2224: |
up to 80 W |
| SNS2248: |
up to 110 W |
|
| Dimensions (HxWxD) | |
|
| SNS2124: |
43 (1U) x 429 х 307 mm
(1.69 (1U) x 16.88 x 12.07 in)
|
| SNS2224: |
43 (1U) x 438 х 443 mm
(1.69 (1U) x 17.23 x 17.45 in)
|
| SNS2248: |
43 (1U) x 438 х 443 mm
(1.69 (1U) x 17.23 x 17.45 in)
|
|
| Maximum Weight | |
|
| SNS2124: |
4.2 kg (9.30 lb) |
| SNS2224: |
9.16 kg (20.19 lb) (with 2 x PSU) |
| SNS2248: |
9.2 kg (20.20 lb) (with 2 x PSU) |
|
| Compatible expansion cards | |
| Not supported |
