D-Link DES-3200 series

Download DES-3200 series Datasheet (eng)

Available to quote:

DES-3200-10; DES-3200-18

DES-3200-28; DES-3200-28P

DES-3200-52; DES-3200-52P

Request a Quote
SPECIFICATIONS
Interfaces

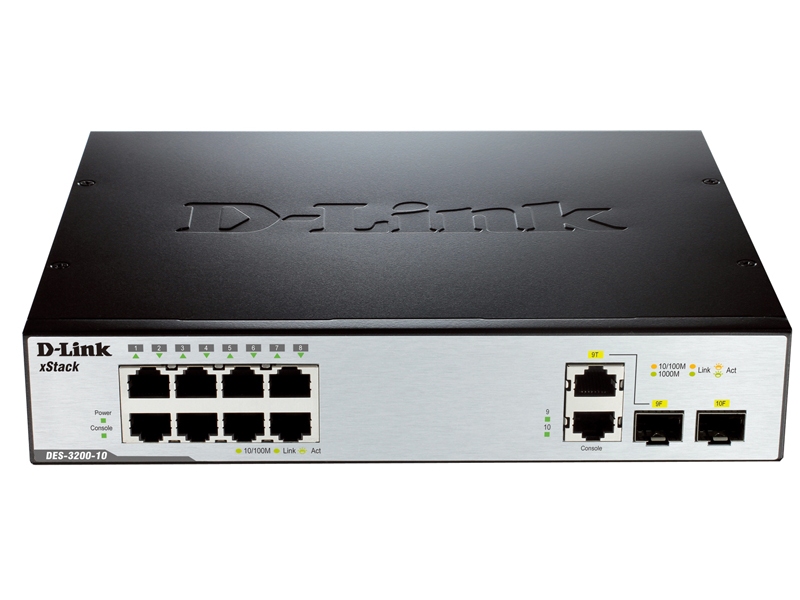

DES-3200-10:
  • 8-Port 10/100MbE (RJ45);
  • 1-Port 100/1000MbE (SFP);
  • 1-Combo-port 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

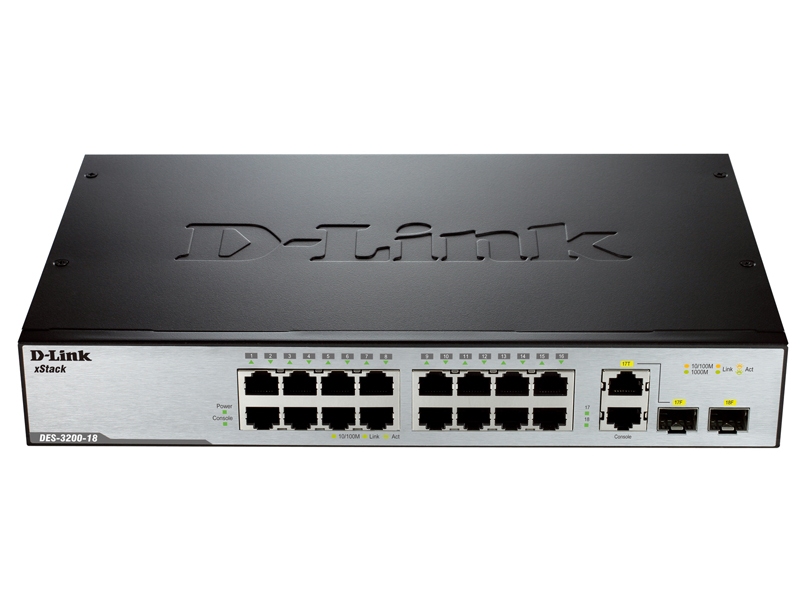

DES-3200-18:
  • 16-Port 10/100MbE (RJ45);
  • 1-Port 100/1000MbE (SFP);
  • 1-Combo-port 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

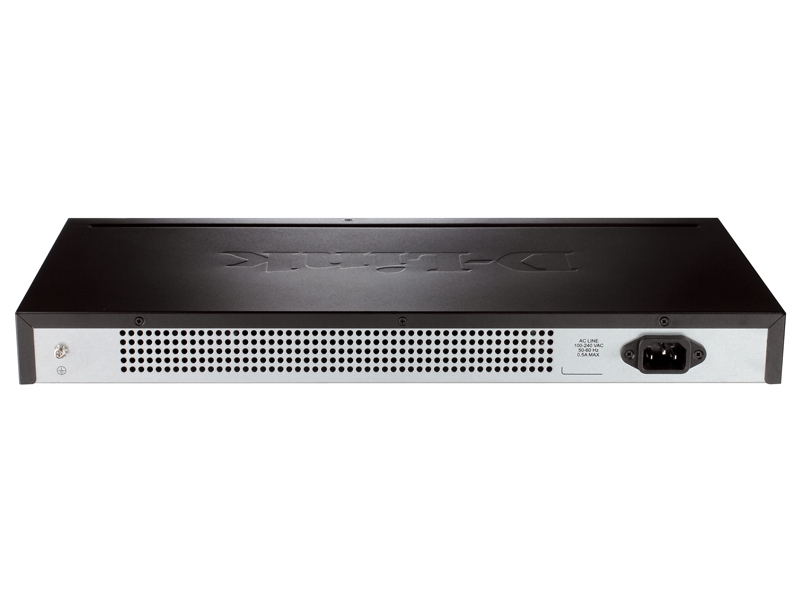

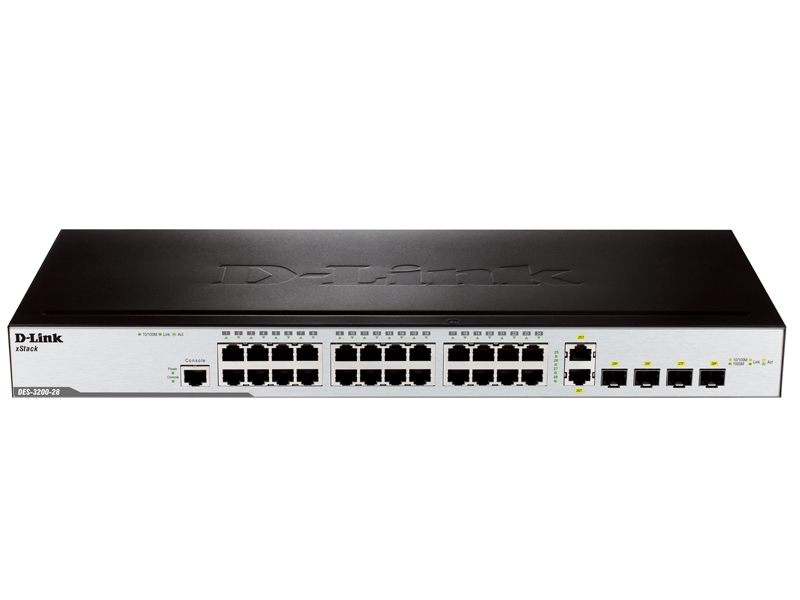

DES-3200-28:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

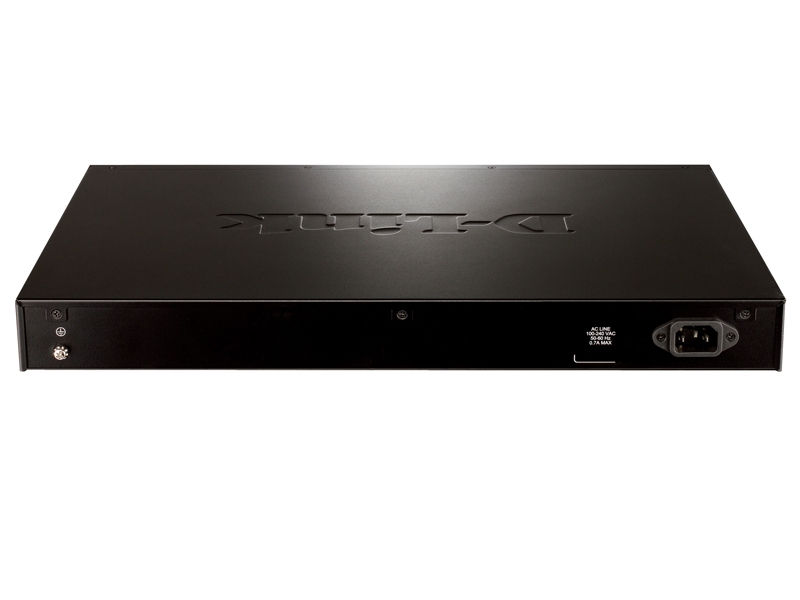

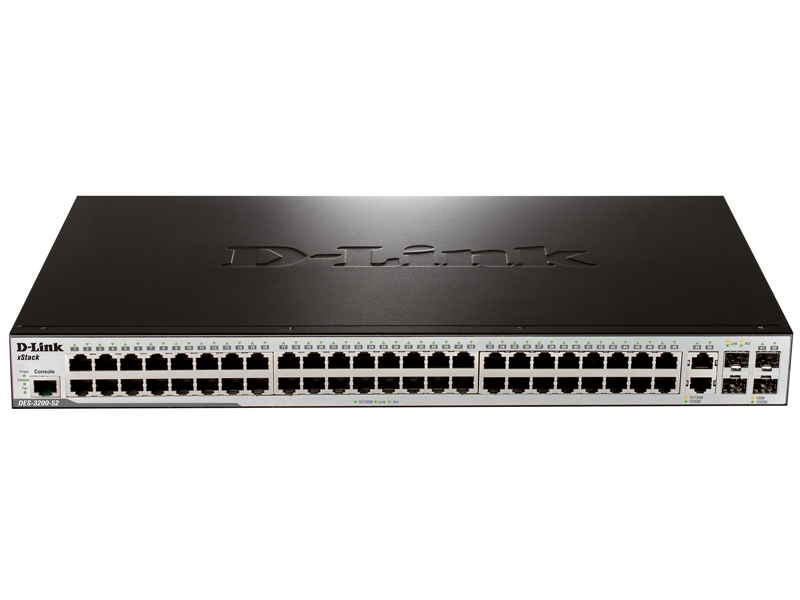

DES-3200-52:
  • 48-Port 10/100MbE (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

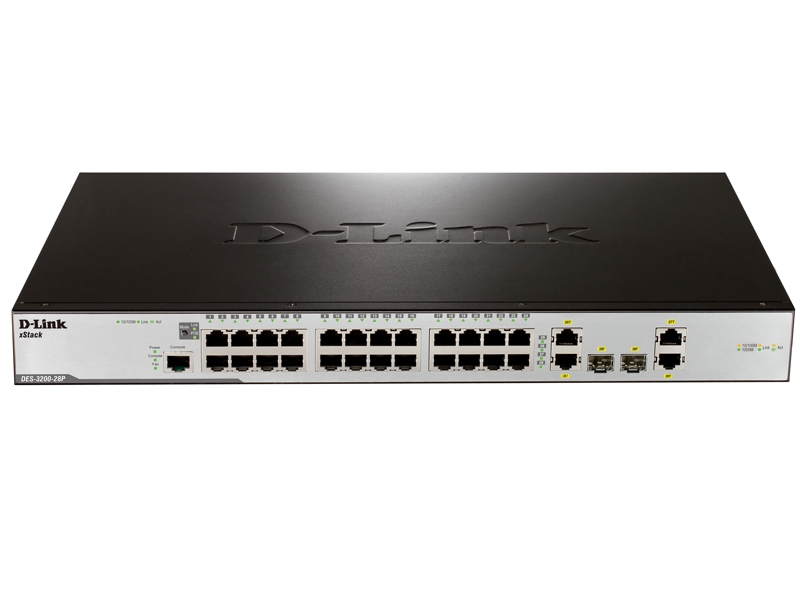

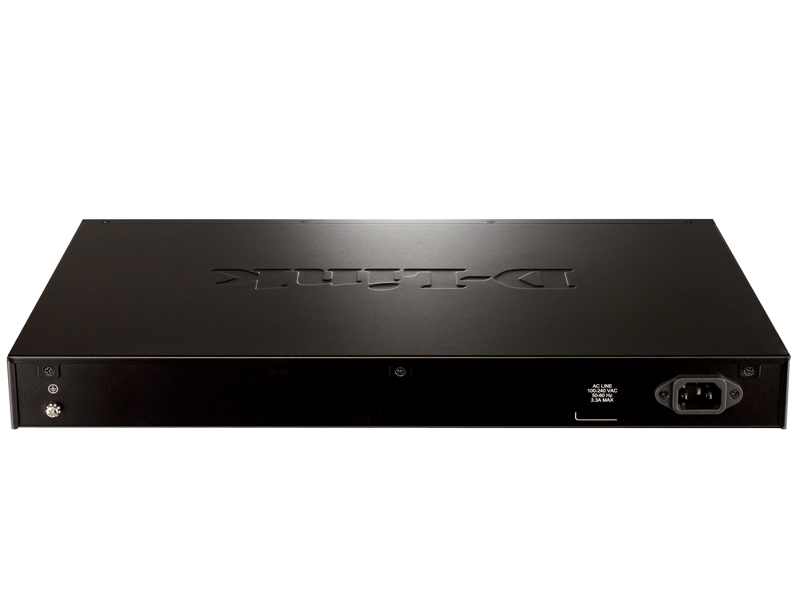

DES-3200-28P:
  • 24-Port 10/100MbE (RJ45) PoE;
  • 2-Port 100/1000MbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

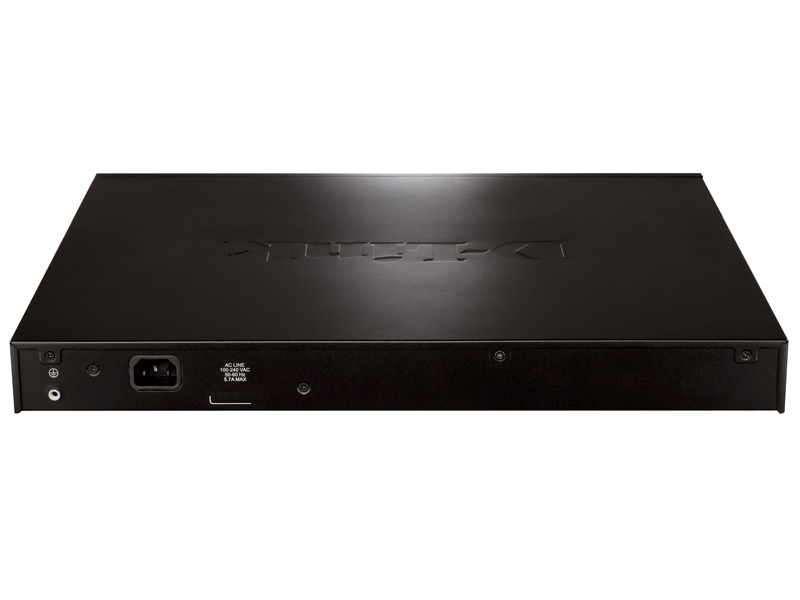

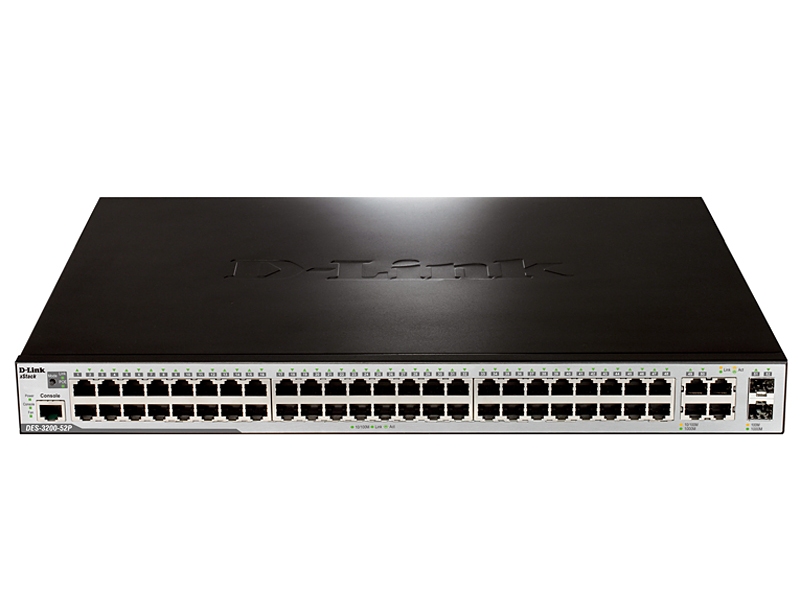

DES-3200-52P:
  • 48-port 10/100MbE (RJ45) PoE;
  • 2-Port 100/1000MbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth
DES-3200-10: 5.6 Gb/s
DES-3200-18: 7.2 Gb/s
DES-3200-28: 12.8 Gb/s
DES-3200-52: 17.6 Gb/s
DES-3200-28P: 12.8 Gb/s
DES-3200-52P: 17.6 Gb/s
Forwarding Rate
DES-3200-10: 4.2 Mp/s
DES-3200-18: 5.4 Mp/s
DES-3200-28: 9.5 Mp/s
DES-3200-52: 13.1 Mp/s
DES-3200-28P: 9.5 Mp/s
DES-3200-52P: 13.1 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 16 routes
IPv6: 16 routes
IP RoutingStatic Routes
MPLS / VPN

Not supported
Security
IPv4 ACL: 1,024 Ingress
IPv6 ACL: 1,024 Ingress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; IPv6 ACL; DHCPv6; IPv6 ND
Management

Telnet; SSH; Web-management; LLDP; sFlow; DULD (D-link Unidirectional Link Detection); SNMP v1/v2/v3; RMON; Syslog; SNTP
OAM

802.3ah (EFM); 802.1ag (CFM); Y.1731
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-5 to +50°C (23 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: DES-3200-28P, DES-3200-52P
PoE (802.3аf) (15 W per port):
DES-3200-28P: 24 ports
DES-3200-52P: 48 ports
PoE+ (802.3аt) (30 W per port):
DES-3200-28P: 4 ports (from 1 to 4)
DES-3200-52P: 8 ports (from 1 to 8)
Maximum power consumption
DES-3200-10: up to 13.54 W
DES-3200-18: up to 15.44 W
DES-3200-28: up to 20.83 W
DES-3200-52: up to 33.38 W
DES-3200-28P: up to 250.78 W
DES-3200-52P: up to 471.6 W
Acoustic noise
DES-3200-10: 0 dB
DES-3200-18: 0 dB
DES-3200-28: 0 dB
DES-3200-52: up to 32.8 dB
DES-3200-28P: up to 51.2 dB
DES-3200-52P: up to 51.2 dB
Dimensions (HxWxD)
DES-3200-10:

44 (1U) x 228.5 х 195 mm

(1.73 (1U) x 8.996 x 7.68 in)
DES-3200-18:

44 (1U) x 280 х 140 mm

(1.73 (1U) x 11.02 x 5.51 in)
DES-3200-28:

44 (1U) x 441 х 210 mm

(1.73 (1U) x 17.36 x 8.27 in)
DES-3200-52:

44 (1U) x 441 х 308 mm

(1.73 (1U) x 17.36 x 12.13 in)
DES-3200-28P:

44 (1U) x 441 х 308 mm

(1.73 (1U) x 17.36 x 12.13 in)
DES-3200-52P:

44 (1U) x 441 х 308 mm

(1.73 (1U) x 17.36 x 12.13 in)
Maximum Weight
DES-3200-10: 1.19 kg (2.64 lb)
DES-3200-18: 1.36 kg (2.998 lb)
DES-3200-28: 1.8 kg (3.97 lb)
DES-3200-52: 6.04 kg (13.32 lb)
DES-3200-28P: 1.8 kg (3.97 lb)
DES-3200-52P: 6.04 kg (13.32 lb)
Compatible expansion cards

Not supported
